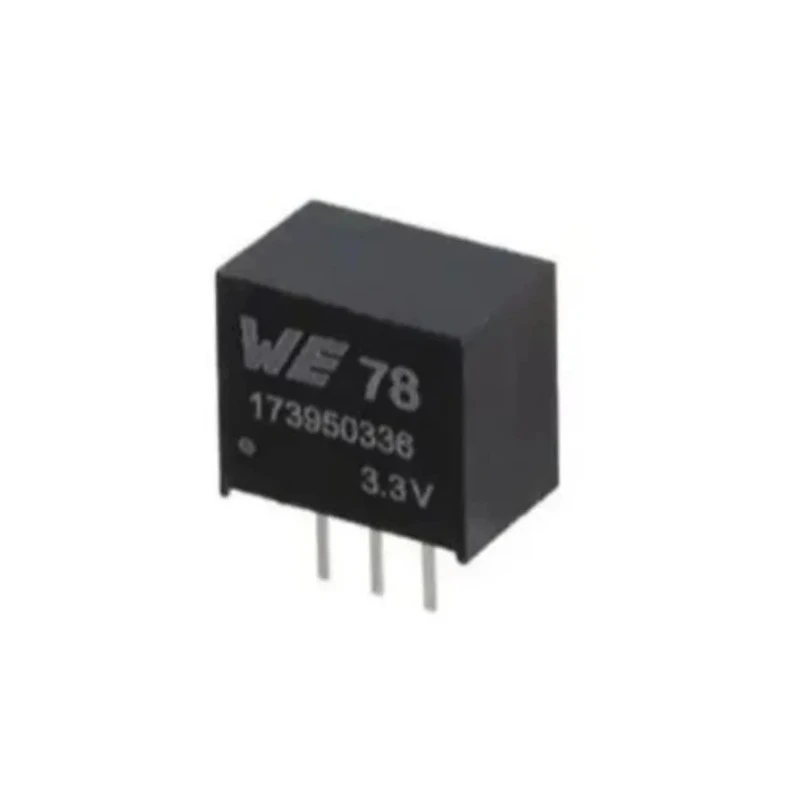

Wurth Elektronik 5-Channel Fixed DC/DC Converter, Step Down Topology, 3.3V to 5V Output, 500mA, 4.75V to 36V 173950336

Wurth Elektronik 173950336 is a 5-Channel fixed DC/DC converter module featuring a step down topology suitable for electronic and power management applications requiring efficient voltage regulation. It delivers fixed output voltages of 3.3V and 5V, accommodating a broad input voltage range from 4.75V up to 36V. The unit supports output currents up to 500mA per channel, making it ideal for a variety of industrial, commercial, and laboratory electronic equipment requiring reliable power supply.

The converter's compact 3-pin SIP package allows for easy through-hole mounting on printed circuit boards, ensuring versatile design integration. This module operates efficiently at a maximum switching frequency of 710kHz, helping minimize power loss and electromagnetic interference. It is designed to perform reliably in challenging environments with an operating temperature range from -40°C to 85°C.

Additional integrated features include thermal shutdown and short-circuit protection, enhancing device safety and longevity. The product complies with RoHS and REACh environmental standards, making it suitable for environmentally conscious industrial use. Its compact size, measuring 10.4mm in length, 11.6mm in width, and 8mm in height, supports high-density installations without compromising performance.

Typical applications include use in power management circuits within industrial electronics, telecommunications, automated machinery, and embedded systems, where efficient and stable power conversion is critical. The FDSM series from Wurth Elektronik represents a reliable solution for step down DC/DC power supply needs.

Operates over a wide input voltage range from 4.75V to 36V. Provides stable fixed output voltages of 3.3V and 5V with a maximum output current of 500mA. Features step down topology for efficient power conversion. Comes in a compact 3-pin SIP package suitable for through-hole mounting.

Supports a maximum switching frequency of up to 710kHz for optimized performance. Designed to operate reliably from -40°C to 85°C ambient temperature. Includes integrated thermal shutdown and short-circuit protection features.

Compliant with RoHS and REACh environmental standards. Compact dimensions of 10.4mm (L) x 11.6mm (W) x 8mm (H) for space-saving PCB designs. Explore more DC/DC Converter modules and power management ICs at EnvMart for your application requirements.
