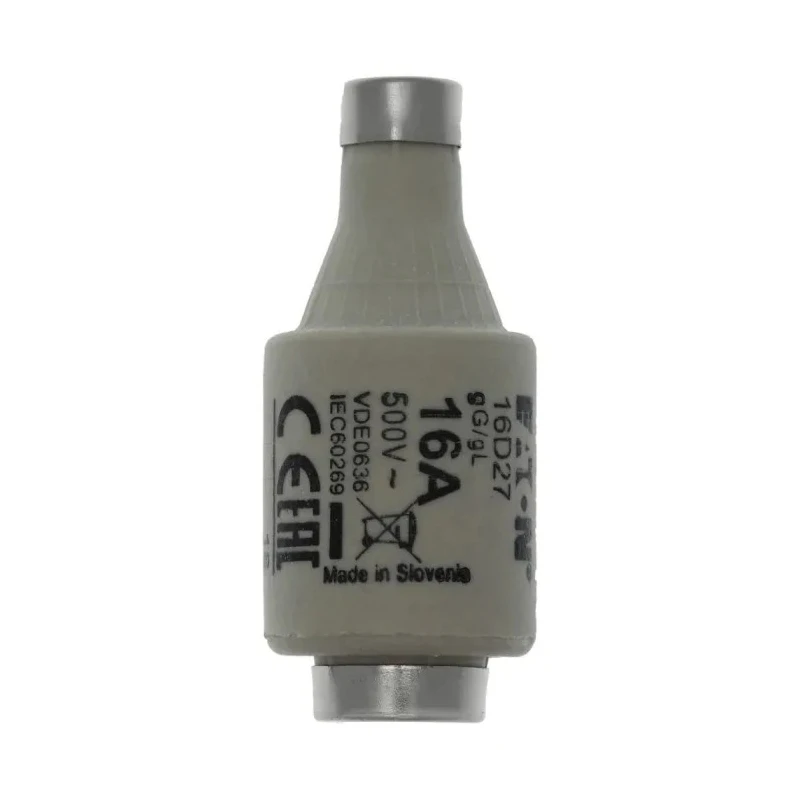

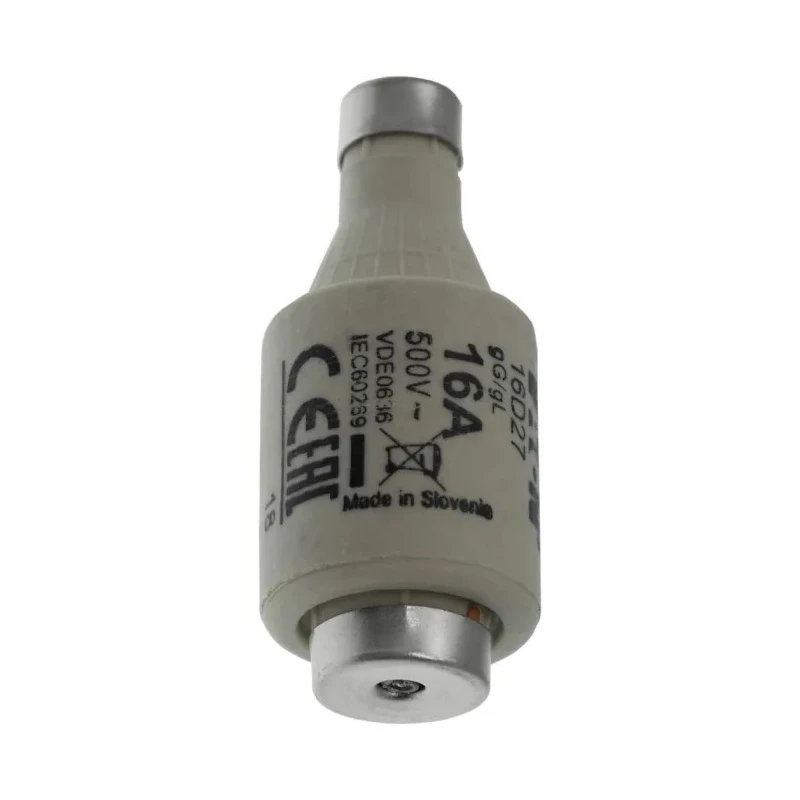

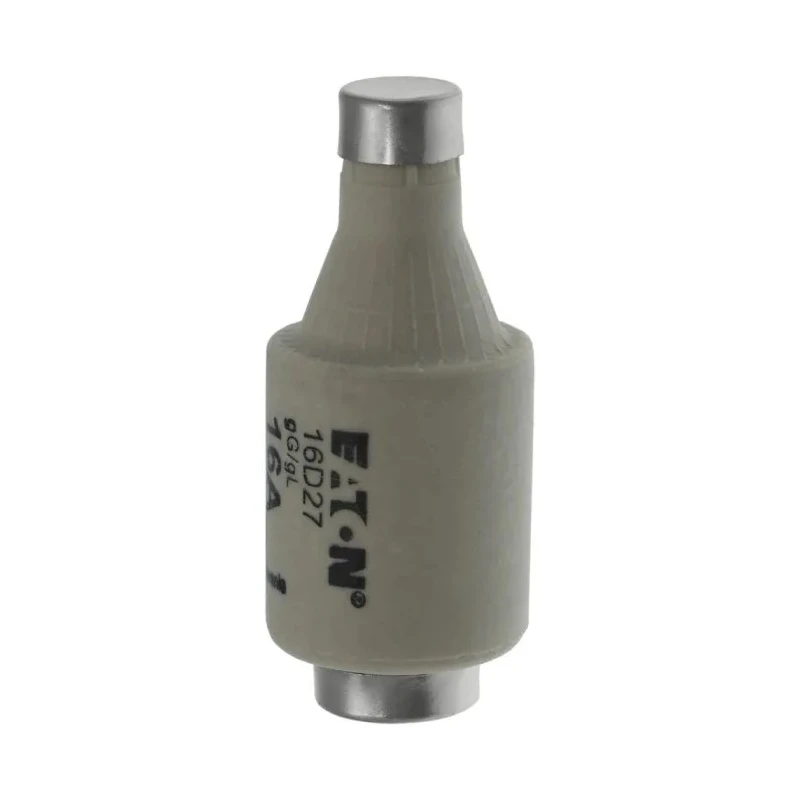

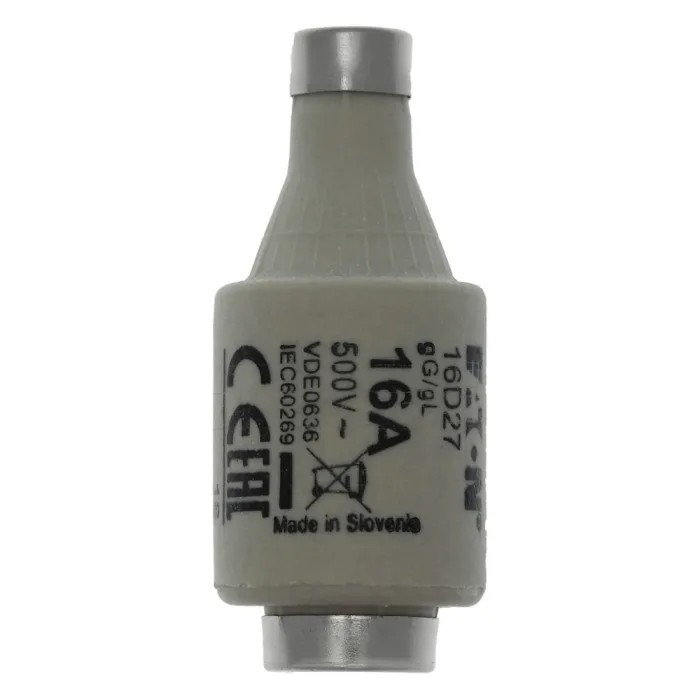

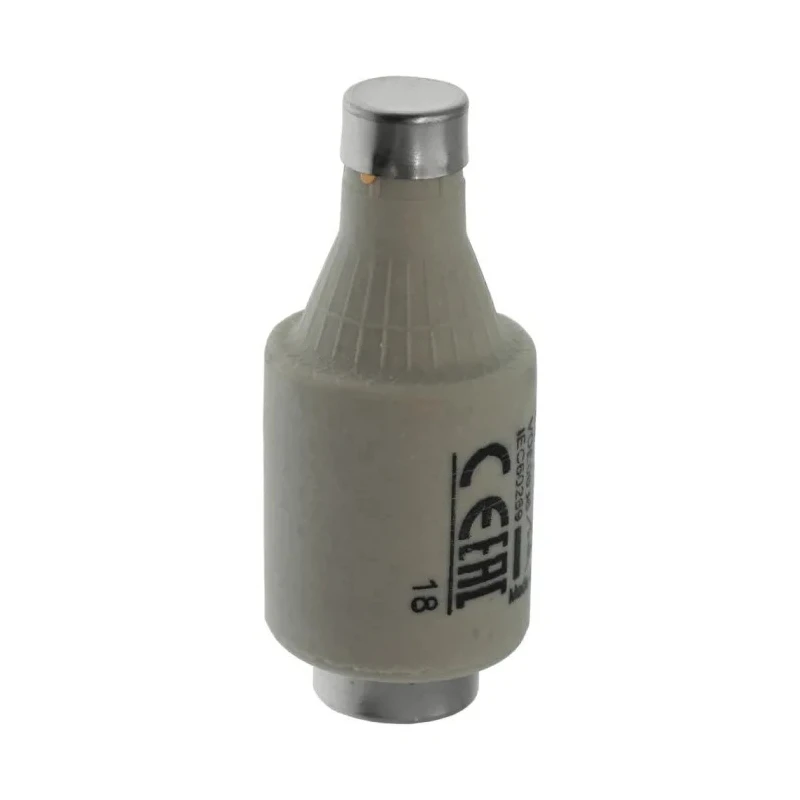

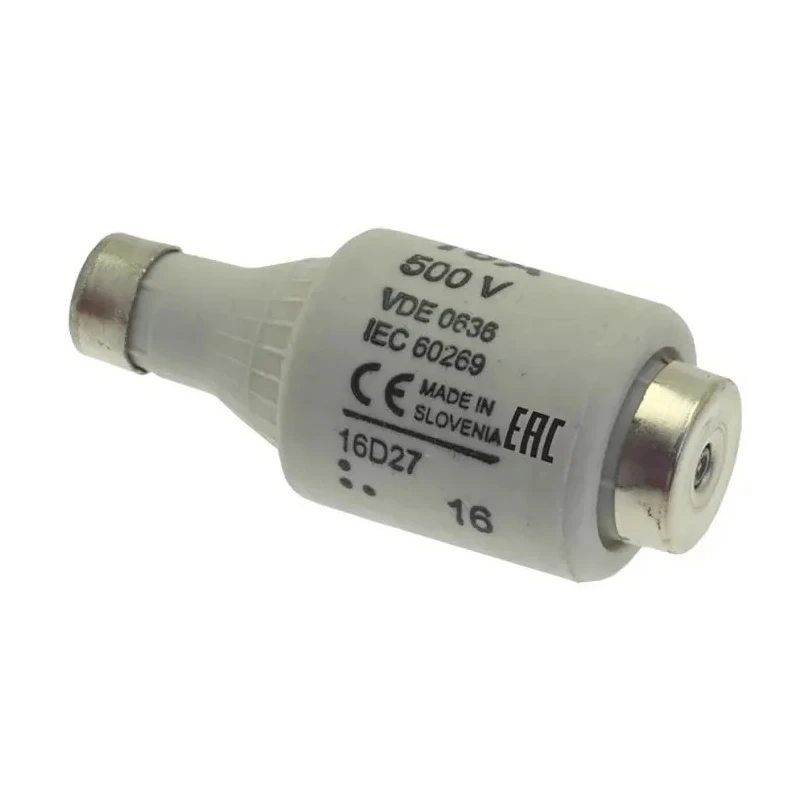

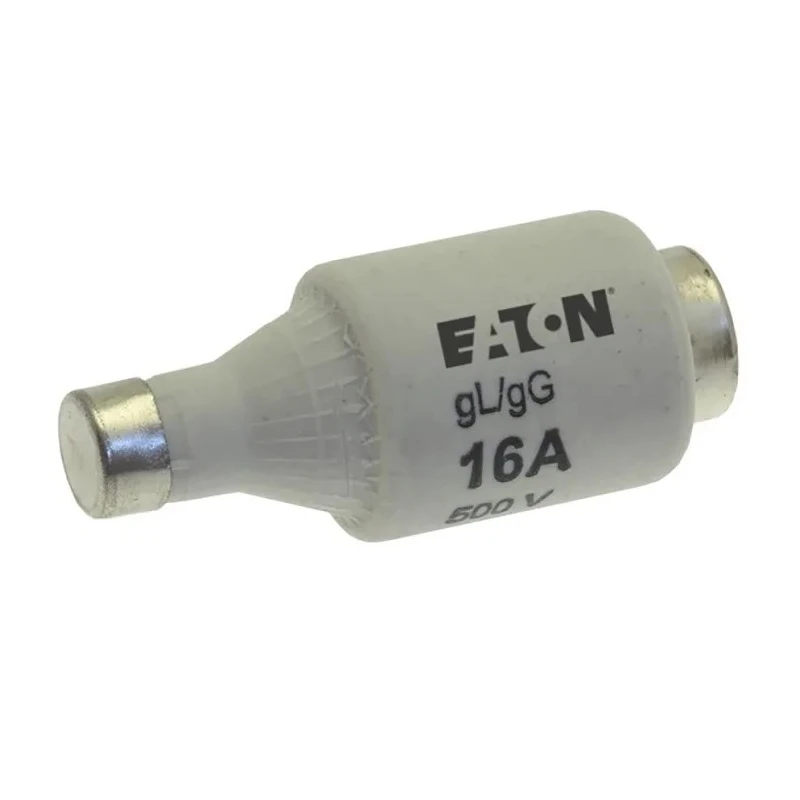

Eaton Diazed Fuse D2, 16A, 500V AC, Ceramic Body, gG gL Application, Breaking Capacity 50kA, Grey Cap, 50mm x 21.5mm 16D27

Eaton 16D27 Diazed Fuse is designed for robust overcurrent protection in low-voltage AC installations, offering a safe solution for circuit protection in motor control panels, distribution boards, and automation systems. Its bottle fuse design enables easy, reliable replacement.

This fuse is rated at 16A and operates up to 500V AC, making it suitable for protection of various electrical feeders and control circuits. The body is constructed from ceramic, maximizing thermal stability during overload events and ensuring consistent fault interruption behavior.

With a breaking capacity of 50kA, the Eaton Diazed Fuse is capable of clearing high prospective short circuits, supporting safe operation in industrial environments.

Its D2-size screw-in form factor is compatible with standard Diazed holders in panel installations. The grey cap serves as a rapid visual indicator for its 16A rating, simplifying identification during inspection and maintenance procedures.

Compliant with IEC 60269 and DIN VDE 0636 standards, the fuse is engineered for interchangeability and rigorous safety testing, ensuring reliability throughout its lifecycle. The ceramic enclosure contributes to mechanical integrity and heat management during faults.

Applications include protection for motor control circuits, safeguarding distribution feeders, and maintenance replacement in switchgear assemblies requiring DIN-compliant fuse elements.

Industrial environments such as manufacturing, automation, electrical panels, and commercial buildings benefit from this fuse's high-performance characteristics and safety features.
