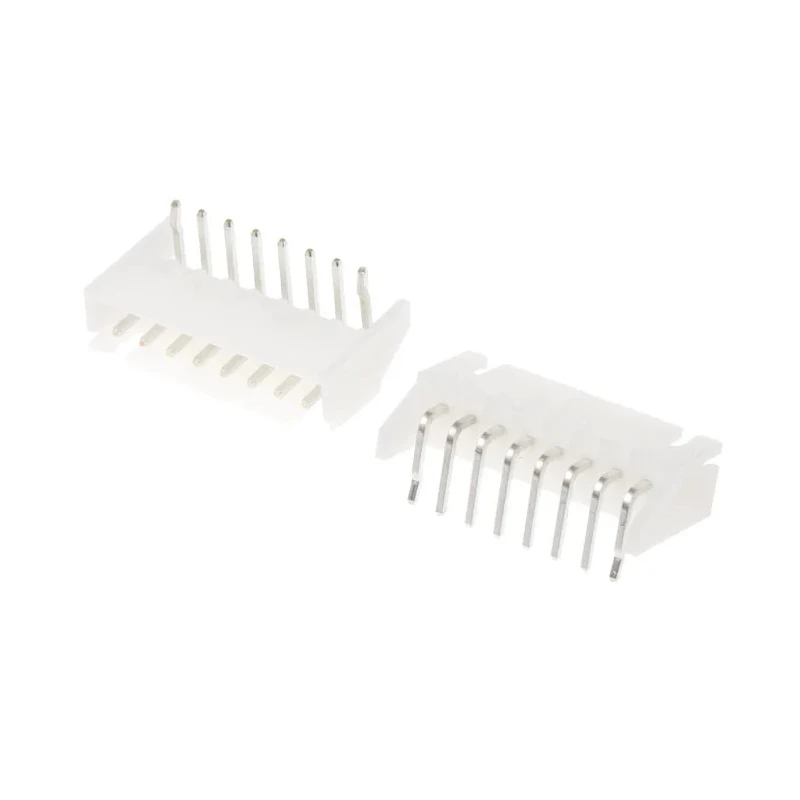

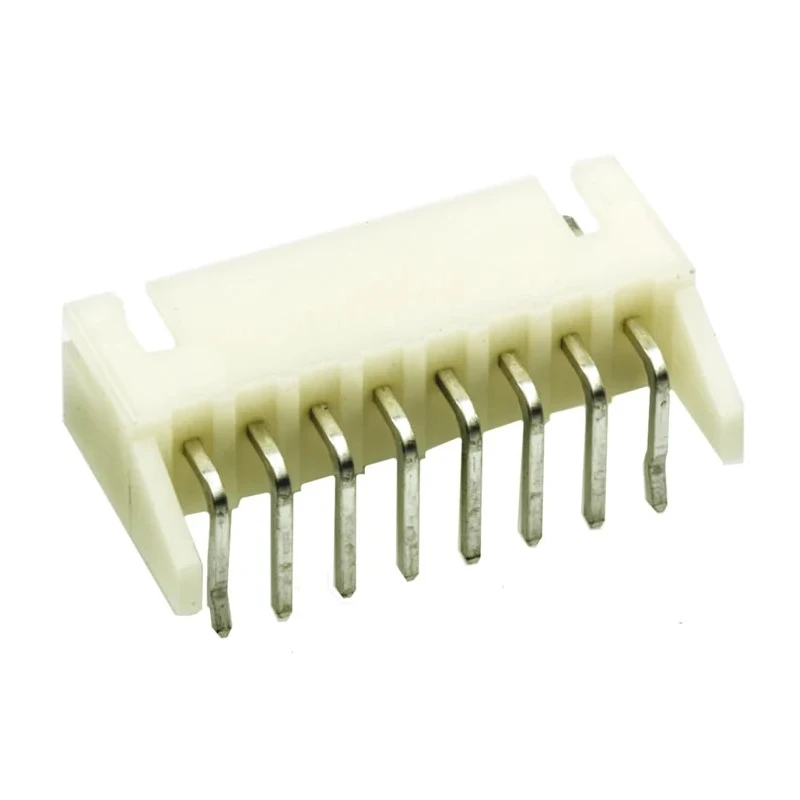

JST XH Series Right Angle Through Hole PCB Header Shrouded, 8 Contacts, 2.5 mm Pitch, 1 Row, 250V S8B-XH-A(LF)(SN)

Free Delivery in India | Lowest Global Shipping Charges

JST XH Series Right Angle Through Hole PCB Header Shrouded, 8 Contacts, 2.5 mm Pitch, 1 Row, 250V S8B-XH-A(LF)(SN)



Category PCB Header Brand JST Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	JST
Orientation	Right Angle
Current	3A
Model	S8B-XH-A(LF)(SN)
Mount Type	Through Hole
Housing Material	Polyamide
Contact Material	Brass
Series	XH
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	2.5mm
Contact Plating	Tin
Number of Contacts	8
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Mating Pin Length	3.4mm

Key Features

This header is designed for wire-to-board applications using a crimp style connector system.
Features a single-row, 8-contact configuration with a 2.5 mm pitch for precise PCB fitting.
Connector body is made of durable polyamide material with UL 94V-0 rating, providing excellent flame resistance.
Contacts are male, made from brass with tin plating for reliable conductivity and solder termination.
Rated current is 3A with a voltage rating of 250VAC/DC suitable for industrial applications.
The mating pin length measures 3.4 mm for secure connections.
Operating temperature range spans from -25°C to 85°C, ensuring performance in varying environments.
It is shrouded to prevent mis-mating and improve durability in PCB assemblies.

Product Description

JST S8B-XH-A(LF)(SN) is a right angle, shrouded through hole PCB header designed for wire-to-board connections in industrial and electronic component assemblies. Featuring a single row of 8 male contacts with a 2.5 mm pitch, this header ensures precise alignment and connectivity on printed circuit boards.

The header's polyamide housing material is UL 94V-0 rated, offering high flame retardancy and long-lasting mechanical strength. The brass contacts are tin plated to deliver excellent electrical performance and corrosion resistance. With a current rating of 3A and a voltage rating of 250 volts AC/DC, it is suitable for a variety of industrial electronic applications requiring reliable and safe connectors.

This JST XH series header supports operating temperatures between -25°C and 85°C, making it ideal for use in harsh or variable environments. Its mating pin length of 3.4 mm provides secure and stable connections, while the shrouded design minimizes risks of misalignment during assembly and enhances contact protection.

The through hole mount style facilitates steadfast solder connections to the PCB, increasing robustness for manufacturing and operational reliability. Typical applications include industrial control equipment, telecommunications hardware, and other electronics requiring dependable wire-to-board interfacing.

This header supports wire sizes from 30AWG to 22AWG for versatile wiring options. The single-row, 8-contact configuration suits various connector needs within a compact form factor. It is part of the XH series, recognized for consistent quality and performance in PCB connectors.

The shrouded design improves safety and durability in electronics manufacturing environments. JST’s engineering ensures compatibility with mating XH series receptacle housings. The connector is RoHS compliant, supporting environmentally responsible manufacturing.

Ideal for use in industrial, electronics manufacturing, telecommunications, and commercial products, this PCB header fits seamlessly into modern electronics assembly lines and prototyping environments.

Explore the wider range of PCB Headers and connectors from JST and other leading manufacturers here at EnvMart for all your electronics component sourcing needs.
