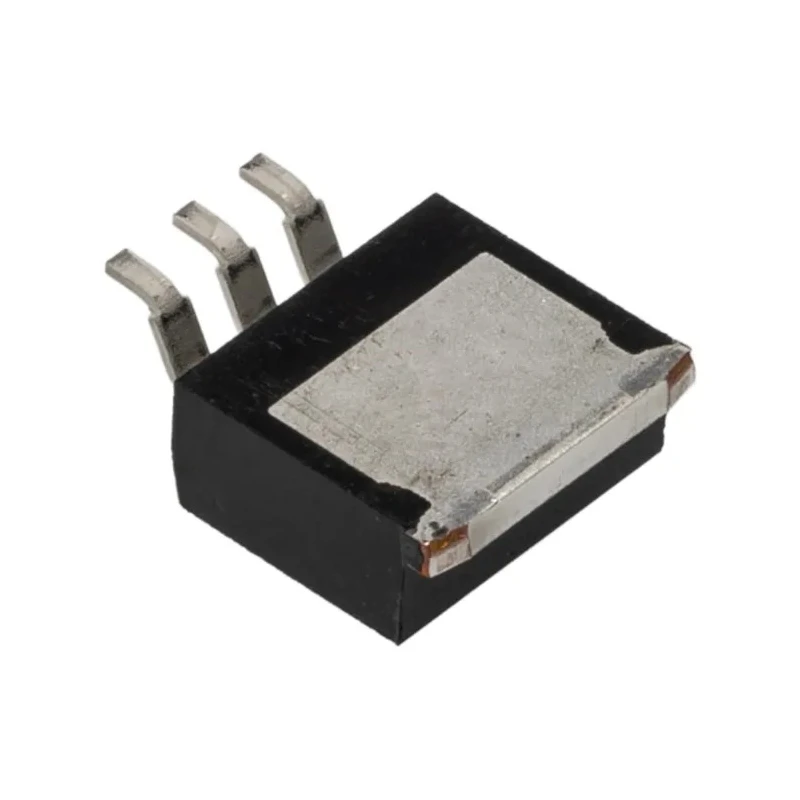

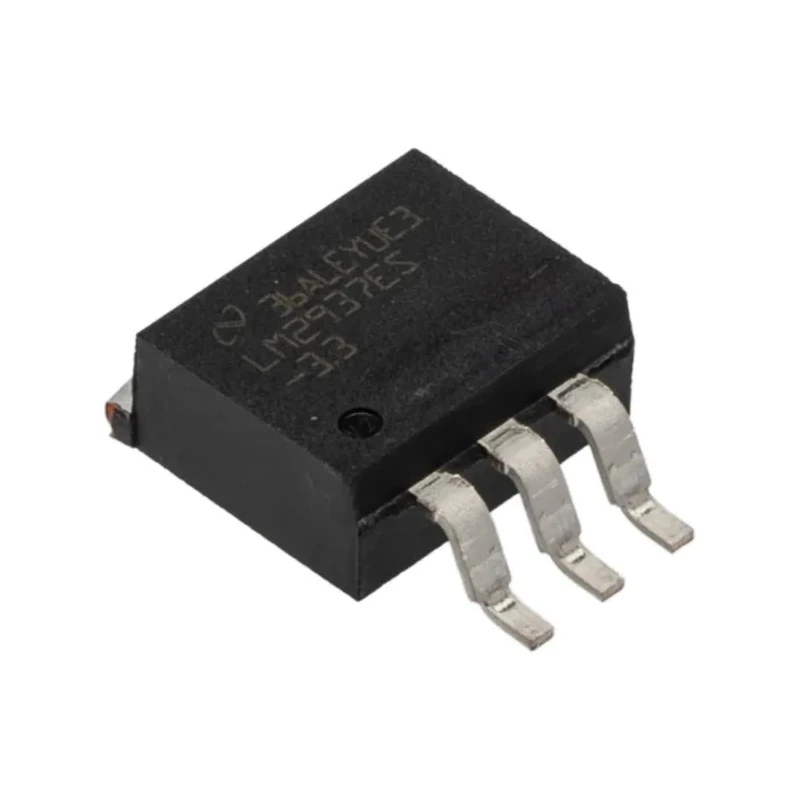

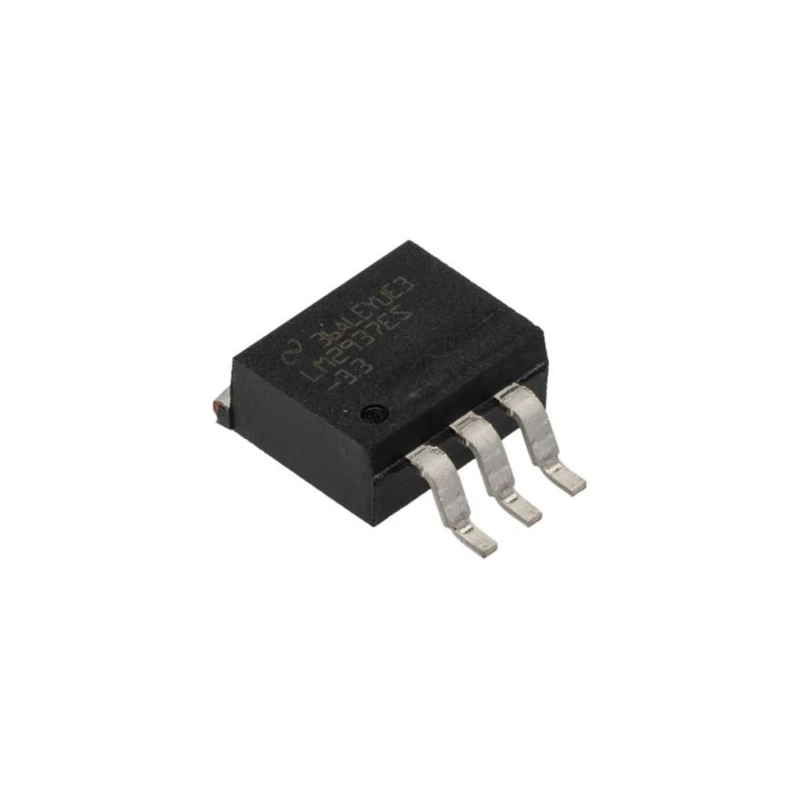

Texas Instruments Voltage Regulator 26V 3-Pin Surface Mount Positive Polarity LM2937ES-3.3/NOPB

Texas Instruments LM2937ES-3.3/NOPB is a 3-pin, 26V low dropout (LDO) linear voltage regulator in a surface mount package designed for positive polarity applications. It offers a quiescent current of 20mA and is engineered to deliver stable voltage regulation in power management systems.

This linear regulator supports a maximum input voltage of 26V and a minimum input voltage of 4.75V, making it suitable for a broad range of electronic circuits requiring stable, low-noise voltage supplies. Its compact size with dimensions of 10.16mm length, 8.64mm width, and 4.57mm height allows integration in space-limited designs.

Operating up to a maximum temperature of 125 degrees Celsius, the LM2937ES-3.3/NOPB ensures reliable performance in harsh industrial or commercial environments. The device's low dropout characteristic makes it highly effective in applications where the input voltage is close to the output voltage, enhancing efficiency and thermal management.

This voltage regulator belongs to the LM2937 series, which is widely recognized for excellent line voltage regulation and reduced output noise. It also provides high power supply ripple rejection ratio (PSRR), making it ideal for sensitive electronic equipment.

The product is shipped in a tube packaging for protecting the components and simplifying the insertion process into machinery and production lines, improving manufacturing efficiency.

Surface mount device with positive polarity for easy PCB integration. Operates with a quiescent current of 20mA, optimizing power consumption. Designed to handle a maximum input voltage of 26V and a minimum input voltage of 4.75V.

Compact dimensions with length 10.16mm, width 8.64mm, and height 4.57mm for space-efficient designs. Maximum operating temperature rated at 125°C, suitable for industrial environments. 3-pin configuration ideal for low dropout voltage regulation needs.

Part of the LM2937 series known for reliable LDO linear voltage regulation. Excellent line voltage regulation and high power supply ripple rejection ratio (PSRR).

This voltage regulator is suited for use in industrial power management, automotive electronics, and laboratory instrumentation. Its robust design and efficient voltage regulation enable reliable operation in a variety of electronic systems.
