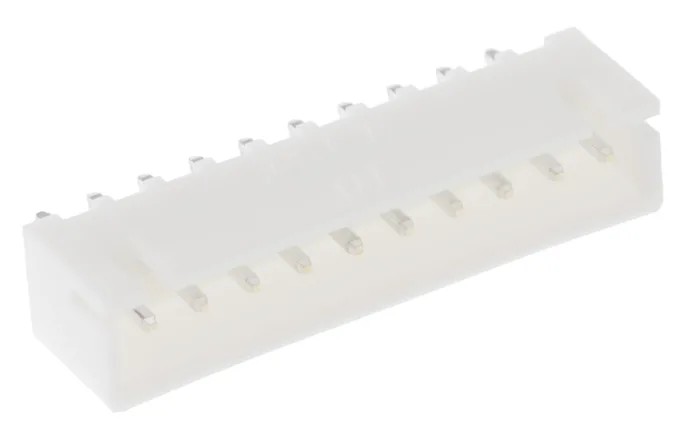

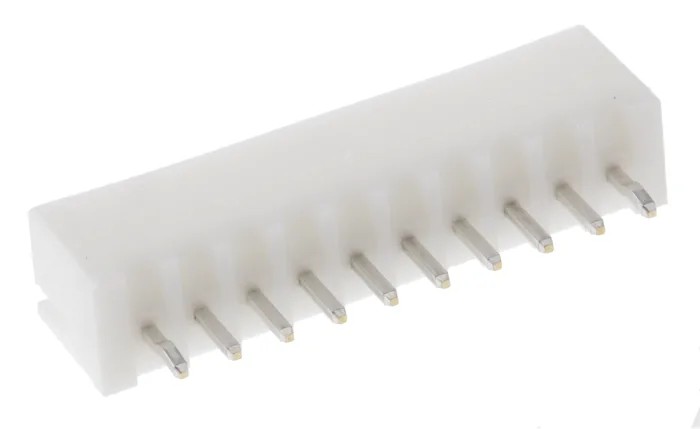

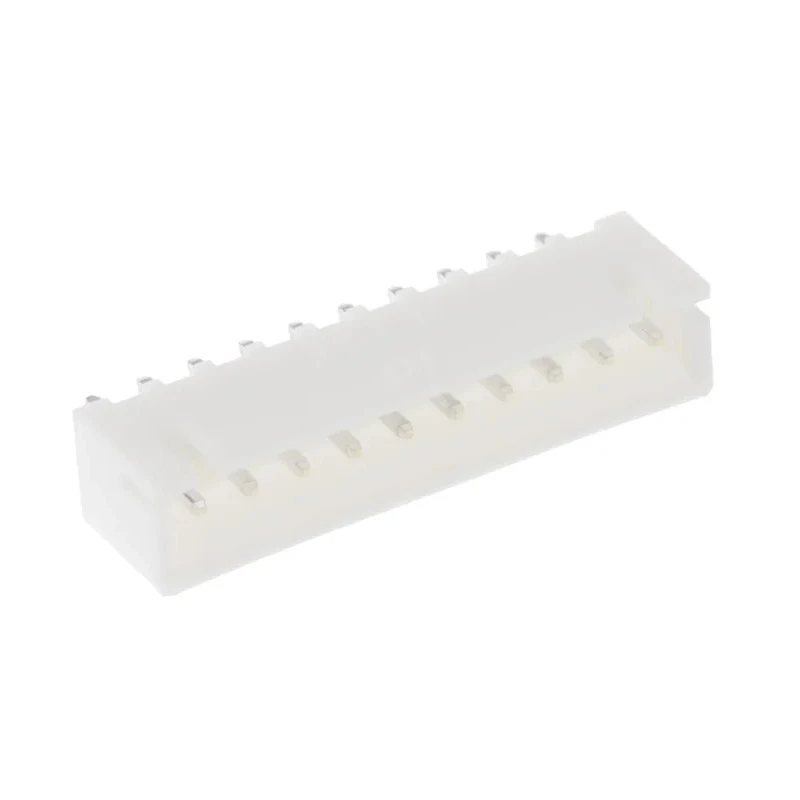

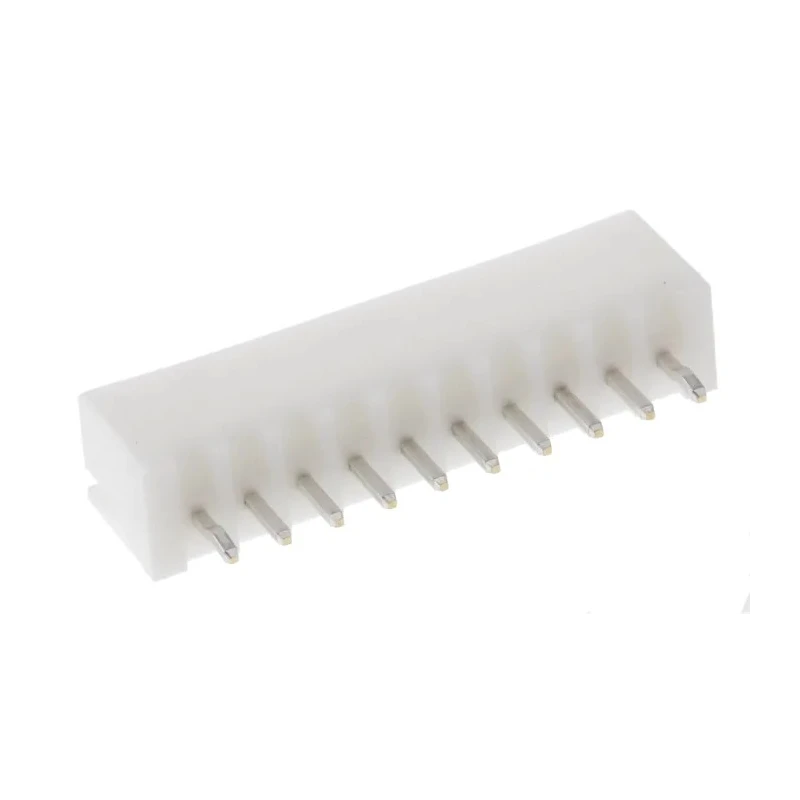

JST XH Series Straight Through Hole PCB Header 10 Contact 2.5 mm Pitch 1 Row Shrouded B10B-XH-A(LF)(SN)

Free Delivery in India | Lowest Global Shipping Charges

JST XH Series Straight Through Hole PCB Header 10 Contact 2.5 mm Pitch 1 Row Shrouded B10B-XH-A(LF)(SN)



Category PCB Header Brand JST Condition New

Specifications

Country of Origin	China
Voltage	250V
Brand	JST
Orientation	Straight
Current	3A
Model	B10B-XH-A(LF)(SN)
Mount Type	Through Hole
Housing Material	Polyamide
Contact Material	Brass
Series	XH
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	2.5mm
Contact Plating	Tin
Number of Contacts	10
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Mating Pin Length	3.4mm

Key Features

This PCB header supports a current rating of 3A for reliable electrical performance.
The housing is made of polyamide material offering durability and UL 94V-0 flame rating.
Contacts are male type made of brass with tin plating for corrosion resistance.
Designed for through-hole mounting with solder termination for secure installation.
Operating temperature range from -25°C to 85°C suitable for various industrial applications.
Features a mating pin length of 3.4 mm for compatible connection with receptacle housings.
Offers a 2.5 mm row pitch and straight orientation with shrouded connector system.
Ideal for industrial electronic, power, and connector applications requiring durability and precision.

Product Description

JST B10B-XH-A(LF)(SN) PCB Header is a high-quality, 10-contact, single-row connector designed for straight through hole mounting. With a 2.5 mm pitch, this shrouded header provides a secure wire-to-board connection ideal for industrial and electronic component applications.

Constructed with a polyamide housing material rated UL 94V-0 and brass contacts plated with tin, the header ensures durable mechanical and electrical performance. It accommodates wire sizes from 30AWG to 22AWG and offers a current rating of 3A with a maximum operating voltage of 250V AC/DC.

The connector features a mating pin length of 3.4 mm and solder termination type, ensuring optimal solderable contact strength. Its operating temperature range of -25°C to 85°C enables versatility in diverse industrial environments.

Uses and Applications: This JST XH Series header is widely used in industrial equipment, power connectors, PCB assemblies, and electronic manufacturing requiring reliable connection integrity and flame retardant properties.

This PCB header supports a current rating of 3A for reliable electrical performance. The housing is made of polyamide material offering durability and UL 94V-0 flame rating. Contacts are male type made of brass with tin plating for corrosion resistance.

Designed for through-hole mounting with solder termination for secure installation. Operating temperature range from -25°C to 85°C suitable for various industrial applications. Features a mating pin length of 3.4 mm for compatible connection with receptacle housings.

Offers a 2.5 mm row pitch and straight orientation with shrouded connector system. Voltage rating is 250 V AC/DC ensuring safe electrical insulation. Ideal for industrial electronic, power, and connector applications requiring durability and precision.

Choose JST PCB Headers for dependable performance in demanding industrial, electronic, and power connector applications. Explore our range of related PCB connectors and headers at EnvMart to suit your technical needs.
