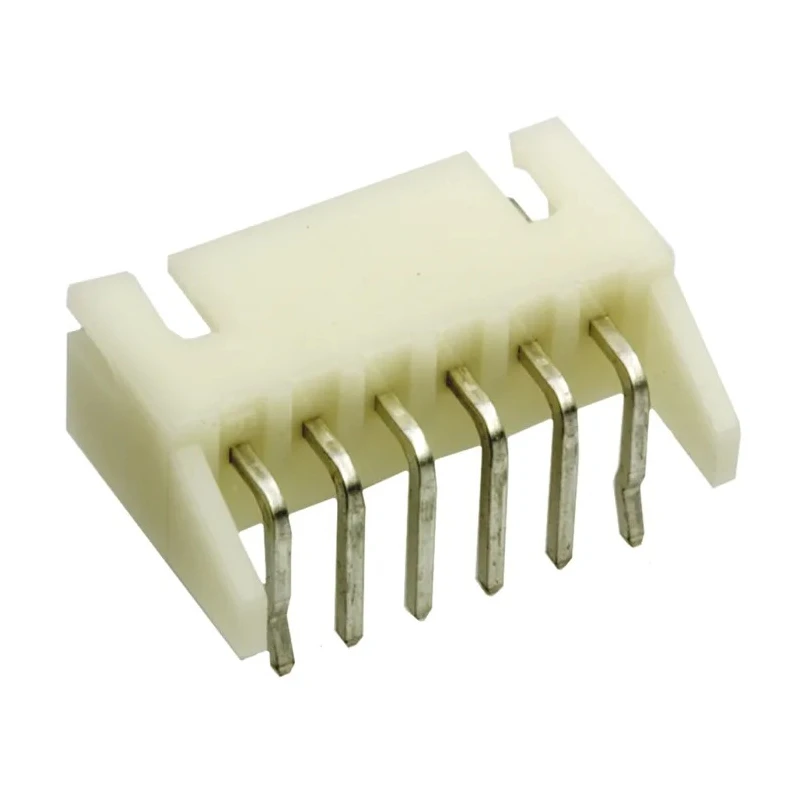

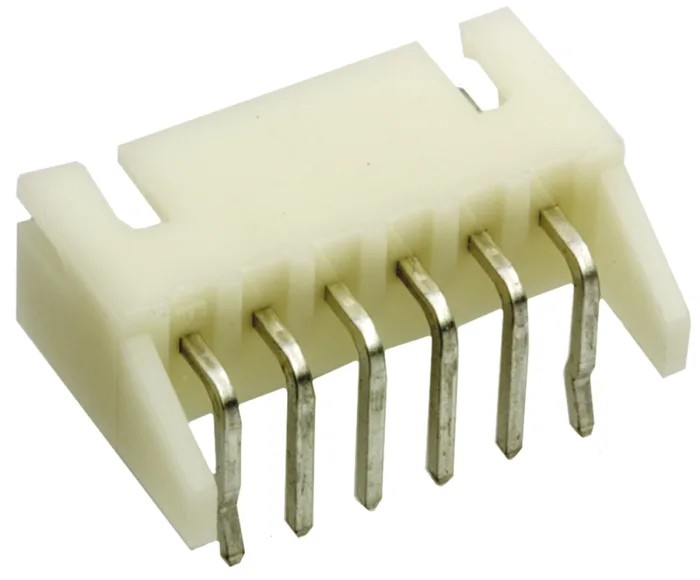

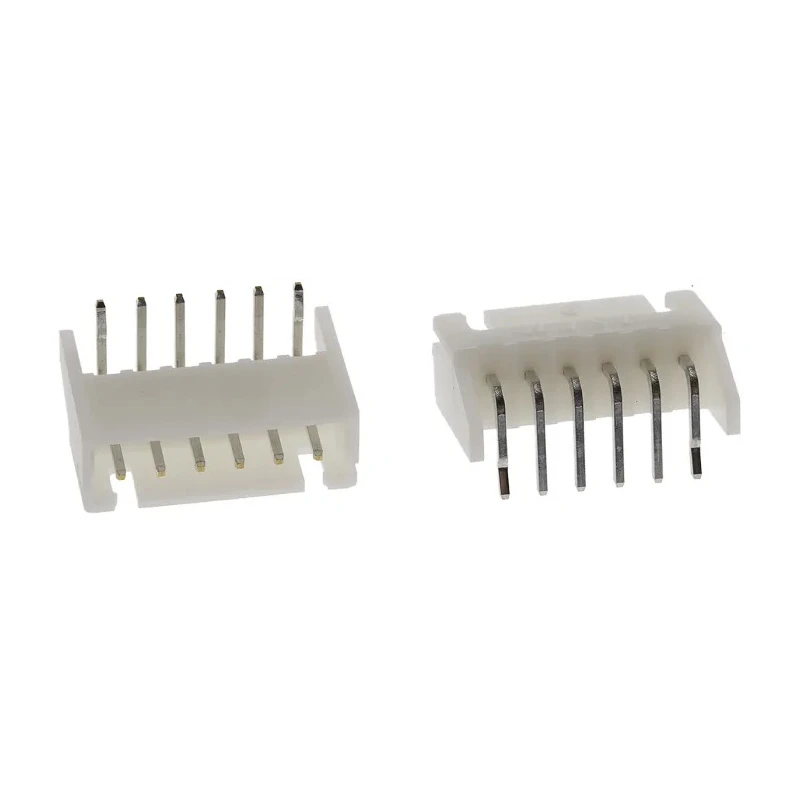

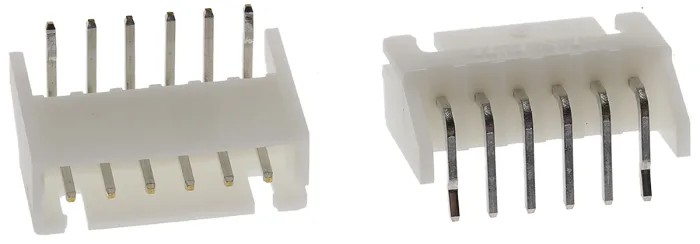

JST XH Series Right Angle Through Hole PCB Header 6 Contacts 2.5 mm Pitch 1 Row Shrouded S6B-XH-A(LF)(SN)
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | JST |
| Orientation | Right Angle |
| Current | 3A |
| Model | S6B-XH-A(LF)(SN) |
| Mount Type | Through Hole |
| Housing Material | Polyamide |
| Contact Material | Brass |
| Series | XH |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 1 |
| Pitch | 2.5mm |
| Contact Plating | Tin |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Mating Pin Length | 3.4mm |
Key Features
- Features a 2.5 mm pitch for precise electrical connections.
- Constructed with polyamide housing material ensuring durability.
- Supports current rating of 3A suitable for industrial applications.
- Shrouded design providing protection and secure mating.
- Right angle orientation for space-saving PCB layouts.
- Male contact gender made of brass with tin plating for corrosion resistance.
- Through hole mount type ensures strong mechanical connection.
- Operating temperature range from -25°C to 85°C for versatile environments.
Product Description
This PCB header features 6 contacts arranged in a single row with a 2.5 mm pitch, making it suitable for dense PCB arrangements requiring wire-to-board connections.
The header housing is made from polyamide (PA66) with a UL 94V-0 rating, ensuring flame retardancy and high durability. Contacts are made from brass and plated with tin to provide excellent conductivity and corrosion resistance. The shrouded style protects the contacts against accidental damage or short-circuiting, enhancing the reliability of the installed product.
Designed for through hole mounting, this component is mounted securely to printed circuit boards and supports a voltage rating of up to 250V AC/DC with a current rating of 3A. It operates reliably in temperature conditions ranging from -25°C to 85°C, making it suitable for industrial, manufacturing, automation, and electronics assembly environments.
2.5 mm pitch for precise contact spacing and reliable signal transmission. Polyamide housing with UL 94V-0 flame retardant rating for safety. Brass contacts with tin plating to prevent corrosion and improve conductivity.
Right angle orientation supports efficient PCB layout design. Shrouded connector system safeguards contacts during handling and use. Supports wire sizes from 30AWG to 22AWG, compatible with standard wiring. Mating pin length of 3.4 mm enables secure and proper connection with XH series receptacles.
Voltage rating of 250V AC/DC and current capacity of 3A ensure robust electrical performance. Operating temperature range from -25°C to 85°C suits diverse industrial environments.
This PCB header is ideal for use in electronic component manufacturing, assembly lines, industrial automation systems, instrumentation, and other commercial applications requiring secure and reliable wire-to-board connections. By selecting this JST XH Series right angle through hole PCB header, users ensure quality and consistent performance for their electronic assemblies.
Explore a wide selection of PCB Headers and related connectors at EnvMart for your industrial and electronics needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this PCB header is 2.5 mm, allowing for precise contact spacing in wire-to-board connections.
This model supports a current rating of 3A, making it suitable for various industrial applications.
The voltage rating for this PCB header is up to 250V AC/DC, ensuring robust electrical performance.
The housing is made from polyamide (PA66) with a UL 94V-0 rating, and the contacts are made from brass with tin plating for corrosion resistance.
It operates reliably in temperature conditions ranging from -25°C to 85°C, suitable for diverse environments.
This model features 6 contacts arranged in a single row, designed for efficient wire-to-board connections.
This PCB header is designed for through hole mounting, ensuring a strong mechanical connection to printed circuit boards.
The orientation of this model is right angle, which supports space-saving PCB layouts.
The mating pin length is 3.4 mm, allowing for secure connections with XH series receptacles.
The termination type for this model is solder, which is standard for secure electrical connections.
This PCB header features male contact gender, which is common for connecting to female receptacles.
This model is suitable for electronic component manufacturing, assembly lines, industrial automation systems, and instrumentation.
