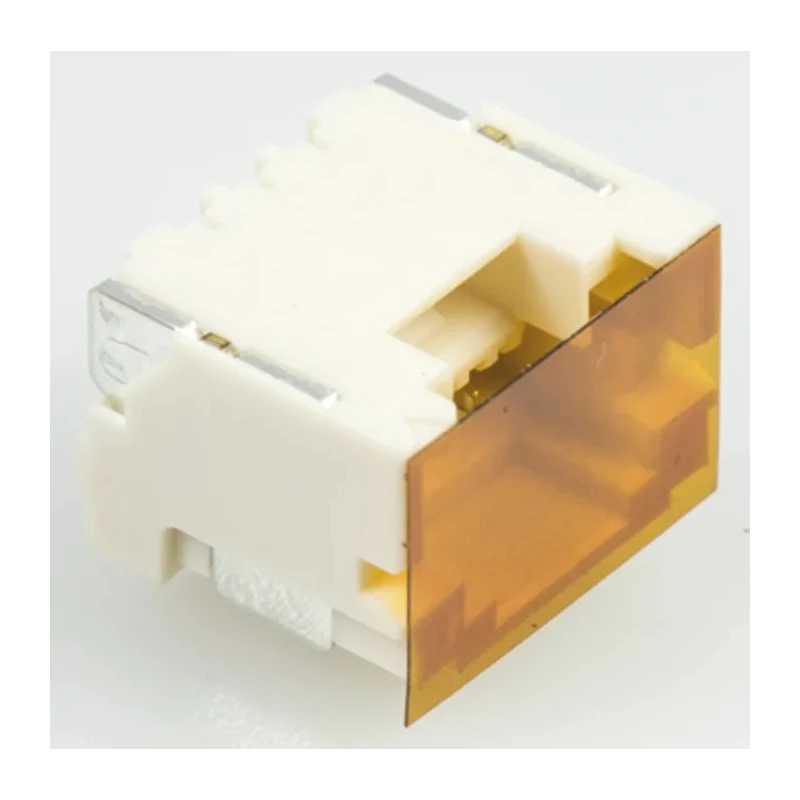

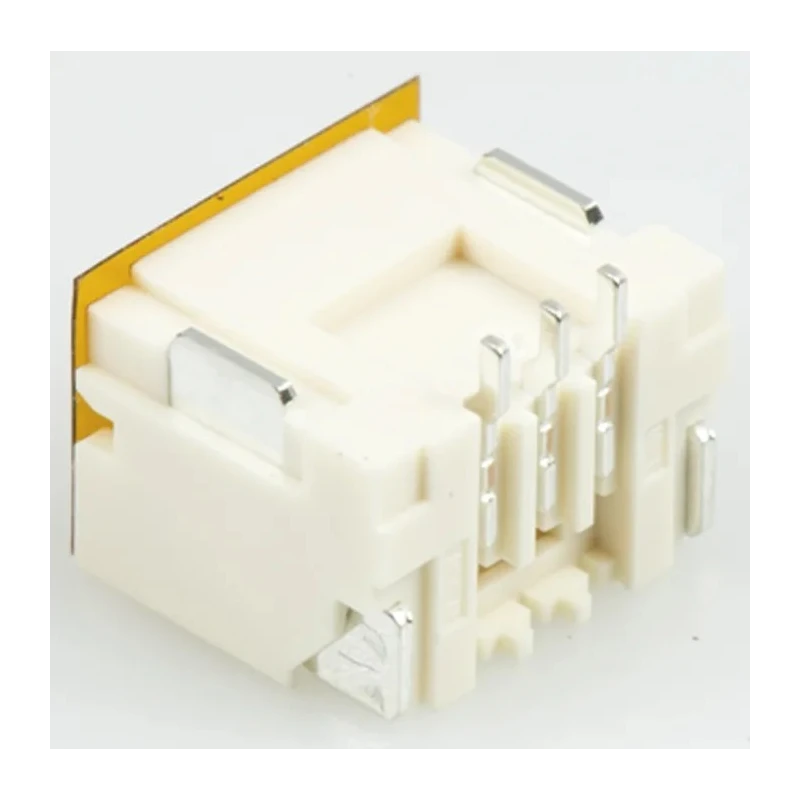

JST ZE Series Straight Surface PCB Header 3 Contacts 1.5 mm Pitch 1 Row Shrouded BM03B-ZESS-TBT (LF)(SN)

JST BM03B-ZESS-TBT (LF)(SN) is a ZE Series 1.5 mm pitch straight surface PCB header designed for wire-to-board connector systems. This product features a shrouded, 1-row male contact configuration with 3 contacts spaced at a pitch of 1.5 mm, ideal for precise PCB applications.

The housing is made from durable polyamide material, providing excellent insulation and mechanical strength, while the contacts are constructed from copper alloy with tin plating to ensure reliable electrical conduction and corrosion resistance.

With a current rating of 2A and voltage rating of 100V, this header operates over a broad temperature range from -25°C to 85°C, suitable for demanding industrial and electronic environments. It includes reinforcing plates and forked posts that enhance mounting security on PCBs and resist mechanical stress.

The shrouded design protects contacts and improves connection reliability. This header is perfectly compatible with ZE 1.5 mm receptacle housings to enable robust wire-to-board connections.

Designed for 1.5 mm pitch with 3 male contacts for wire-to-board applications. Surface mount type with shrouded housing for improved PCB mounting stability. Polyamide housing material providing insulation and durability.

Copper alloy contacts plated with tin to ensure conductivity. Current rating of 2A and voltage rating of 100V supports various electronic uses. Suitable for operating temperatures from -25°C to 85°C. Reinforced plates and forked posts for secure PCB mounting.

Made in Japan, assuring quality and performance standards.

Ideal for industrial electronics, manufacturing, and commercial applications requiring compact and reliable PCB headers. For enhanced design integration, 3D models, schematics, and footprints are available for download.
