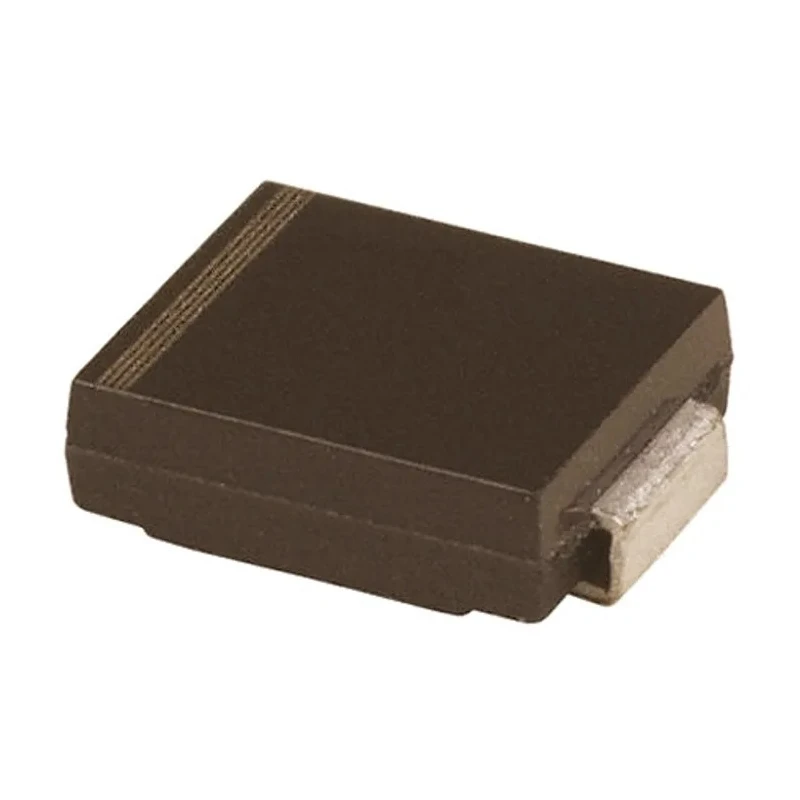

Vishay Uni-Directional 1-Element Transient Voltage Suppressor TVS Diode 1.5 kW Peak Pulse Power 2-Pin DO-214 SMCJ130A-E3/57T
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 2.42mm |
| Length | 7.11mm |
| Model | SMCJ130A-E3/57T |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | TRANSZORB TVS |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 209V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 144V |
| Maximum Reverse Stand-off Voltage Vwm | 130V |
| Peak Pulse Power Dissipation Pppm | 1.5kW |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 7.2A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- Single diode element designed for uni-directional transient voltage suppression.
- Peak pulse power dissipation capacity of 1.5 kilowatts ensures strong protection.
- Minimum breakdown voltage of 144 V and maximum standoff voltage of 130 V.
- Clamping voltage rated at 209 V with maximum peak pulse current of 7.2 A.
- Operating temperature range from -55°C up to 150°C supports harsh environments.
- Compact surface mount DO-214 package with dimensions 7.11 mm length, 6.22 mm width, and 2.42 mm height.
- 2 pins provide reliable electrical connection for PCB mounting.
- Designed according to TRANSZORB TVS diode series with automotive standard AEC-Q101 qualification.
Product Description
Vishay SMCJ130A-E3/57T is a highly reliable uni-directional Transient Voltage Suppressor (TVS) diode designed for protecting electronic components and circuits against transient voltage spikes and electrostatic discharge (ESD). It features a single diode element housed in a compact surface mount DO-214 package with a peak pulse power rating of 1.5 kW, making it suitable for a variety of industrial, automotive, and consumer electronic applications.
This TVS diode has a minimum breakdown voltage of 144 V and a maximum reverse standoff voltage of 130 V. The clamping voltage of 209 V and maximum peak pulse current of 7.2 A provide robust transient voltage suppression to protect sensitive semiconductor devices effectively. Its operating temperature range from -55°C to 150°C ensures dependable performance under extreme temperature conditions.
The device complies with the TRANSZORB TVS diode series specifications and meets the automotive qualification standard AEC-Q101, underscoring its durability and quality. It has low maximum reverse leakage current of 1 μA, minimizing energy losses during normal operation. Its small footprint with dimensions of 7.11 mm length, 6.22 mm width, and 2.42 mm height makes it ideal for space-constrained printed circuit board designs.
This component is ideal for use in power and signal line protection across industrial controls, automotive electronics, telecommunications, computing, and other sensitive electronic systems requiring reliable transient voltage suppression and ESD protection.
Single-element uni-directional diode configuration. 1.5 kW peak pulse power dissipation. Surface mount DO-214 package. Breakdown voltage 144 volts and maximum standoff 130 volts. Clamping voltage 209 volts for transient suppressing.
Wide operating temperature range from -55°C to 150°C. 2-pin connection compatible with SMT assembly. Automotive-grade AEC-Q101 certified for robustness. Low reverse leakage current at 1 μA. Compact dimensions ideal for space-limited applications.
Explore further Vishay semiconductor components and TVS Diode solutions to enhance your electronic protection designs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation capacity of this model is 1.5 kW.
It has a minimum breakdown voltage of 144 V.
The maximum reverse stand-off voltage is 130 V.
The clamping voltage is rated at 209 V.
The maximum peak pulse current is 7.2 A.
The operating temperature range is from -55°C to 150°C.
It is housed in a compact surface mount DO-214 package.
This model features a 2-pin configuration for reliable electrical connection.
It meets the automotive qualification standard AEC-Q101.
The maximum reverse leakage current is 1 μA.
It has a single-element uni-directional diode configuration.
This TVS diode is suitable for power and signal line protection across industrial, automotive, and consumer electronic applications.
