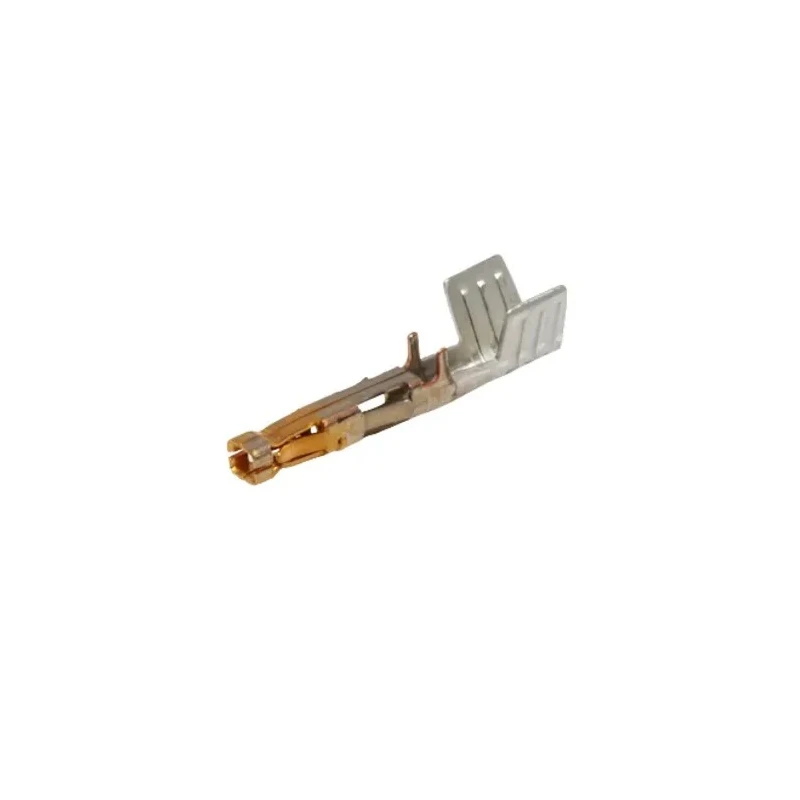

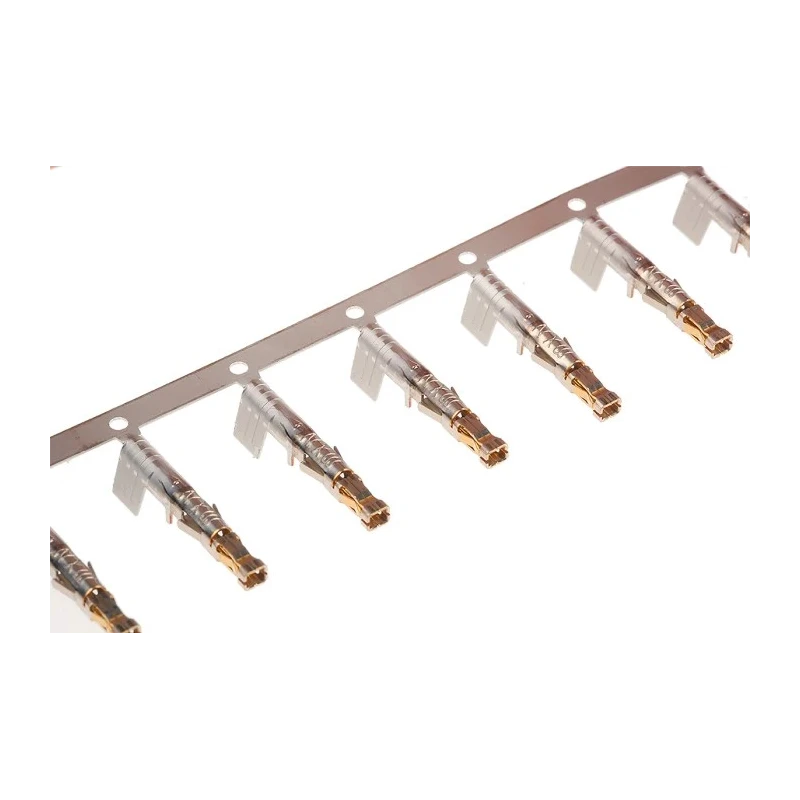

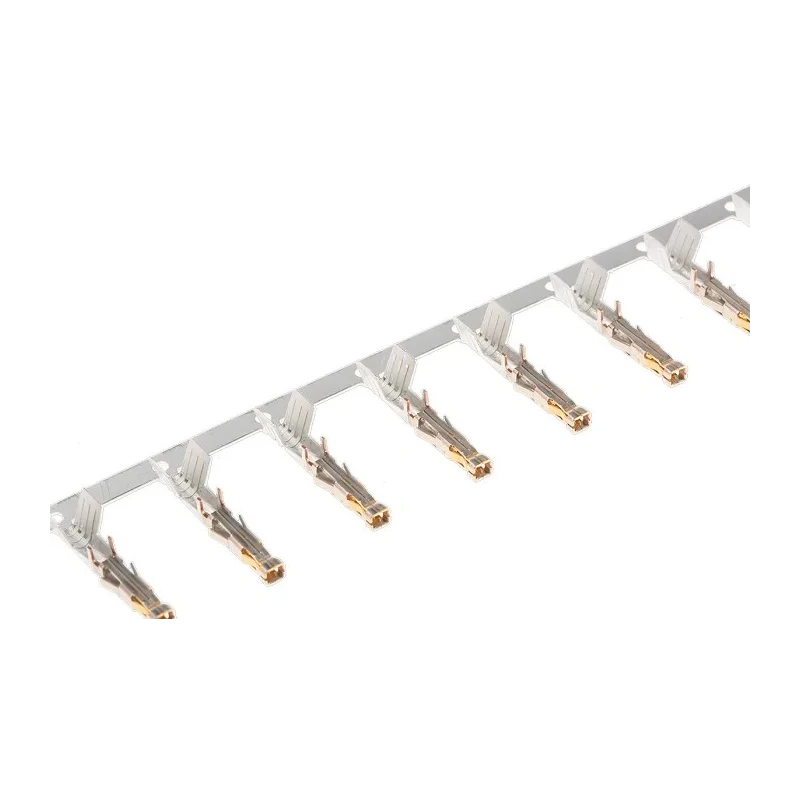

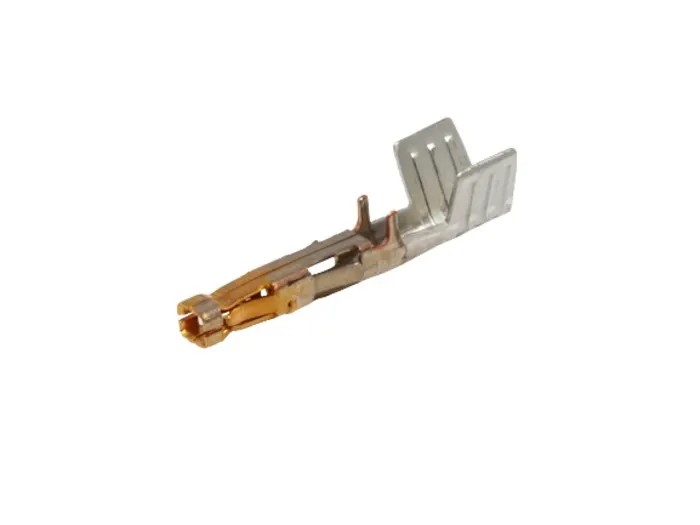

Molex 172063 Series Female Crimp Terminal for Mega-Fit Connector Housing 23A Current 12 AWG 172063-0312
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Current | 23A |
| Gender | Female |
| Contact Material | Copper Alloy |
| Series | 172063 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| For Use With | Mega-Fit Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 2.5mm² |
| Maximum Wire Size mm² | 4mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Contact Resistance | 2mΩ |
Key Features
- Gold plated copper alloy contacts ensure high conductivity and corrosion resistance.
- Designed for use with Mega-Fit connector housing.
- Operating temperature range from -55°C to 105°C for demanding environments.
- Supports hot-plugging up to 30 cycles at 48V and 23A.
- Crimp termination provides secure and airtight connections.
- Accommodates 12 AWG minimum and maximum wire sizes.
- Extended crimping barrels improve wire retention and reliability.
- Suitable for applications in medical equipment, telecommunications, automotive, aerospace, and domestic appliances.
Product Description
Molex 172063-0312 is a female crimp terminal designed for use with Mega-Fit connector housings, supporting a wire size of 12 AWG and a current rating of 23A. It is engineered with gold-plated copper alloy contacts ensuring excellent conductivity and resistance to corrosion, making it reliable for demanding industrial and electronic applications.
The terminal features a robust crimp termination design that creates secure and airtight connections with extended crimping barrels for enhanced wire retention. It permits hot-plugging functionality for up to 30 cycles at 48V/23A, minimizing system downtime in critical applications such as servers and telecommunications equipment.
Operating effectively in a wide temperature range from -55°C to 105°C, this crimp terminal is suitable for harsh environments including aerospace, automotive, medical devices, domestic appliances, and telecommunications systems, ensuring high performance and durability.
The design incorporates six independent contact points in a split-box configuration, enhancing reliability and facilitating maintenance. The nickel-plated termination further adds corrosion resistance for prolonged lifespan.
Gold plated copper alloy contacts provide superior electrical performance and corrosion resistance. Crimp termination ensures secure and airtight wire connections. Supports hot-plugging up to 30 times at 48V and 23A to ensure system continuity.
Broad operating temperature range from -55°C to 105°C enables use in diverse industrial sectors. Compatible specifically with Mega-Fit connector housings for reliable connectivity. Extended crimping barrels enhance terminal-to-wire retention.
Ideal for use in medical, automotive, aerospace, telecommunications, and domestic appliance industries. Explore the range of Molex power connectors and crimp terminals at EnvMart for industrial and commercial electronics connectivity solutions.
Explore more products in our Crimp Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 23A, making it suitable for various applications requiring reliable electrical connectivity.
It accommodates wire sizes from 12 AWG, with a minimum size of 2.5 mm² and a maximum size of 4 mm².
The operating temperature range is from -55°C to 105°C, allowing it to function effectively in demanding environments.
Yes, it supports hot-plugging for up to 30 cycles at 48V and 23A, minimizing system downtime in critical applications.
It features a crimp termination type, which provides secure and airtight connections for enhanced reliability.
The contacts are made from gold-plated copper alloy, ensuring high conductivity and corrosion resistance.
This terminal is specifically designed for use with Mega-Fit connector housings, ensuring reliable connectivity.
The maximum contact resistance is 2 mΩ, which contributes to its efficient electrical performance.
It features extended crimping barrels that improve wire retention and reliability in connections.
It is suitable for applications in medical equipment, telecommunications, automotive, aerospace, and domestic appliances.
The Molex 172063 Series Female Crimp Terminal is manufactured in the United States.
This model is a female crimp terminal, designed for specific connectivity applications.
