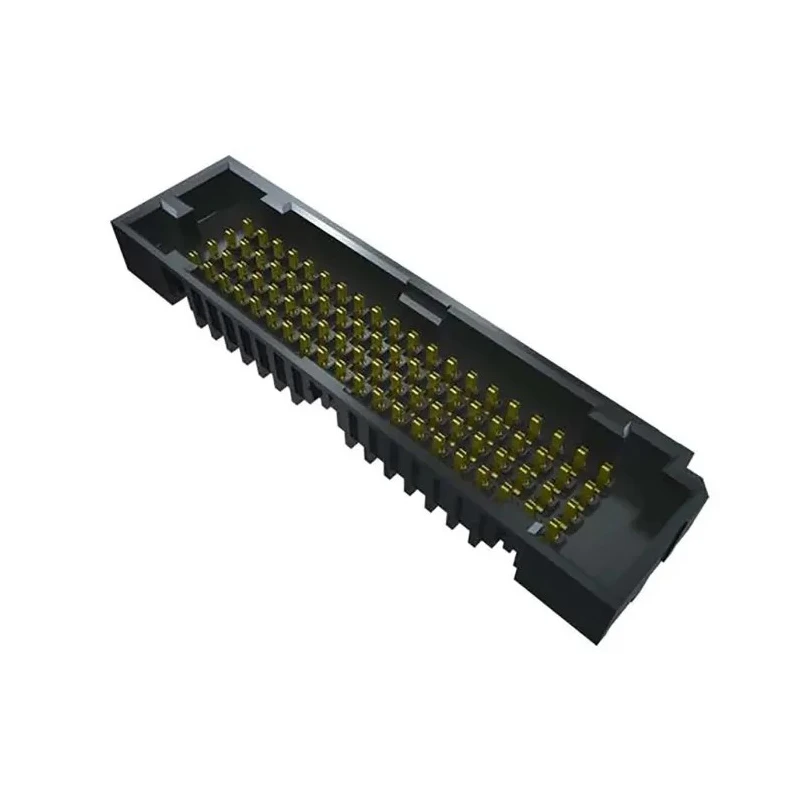

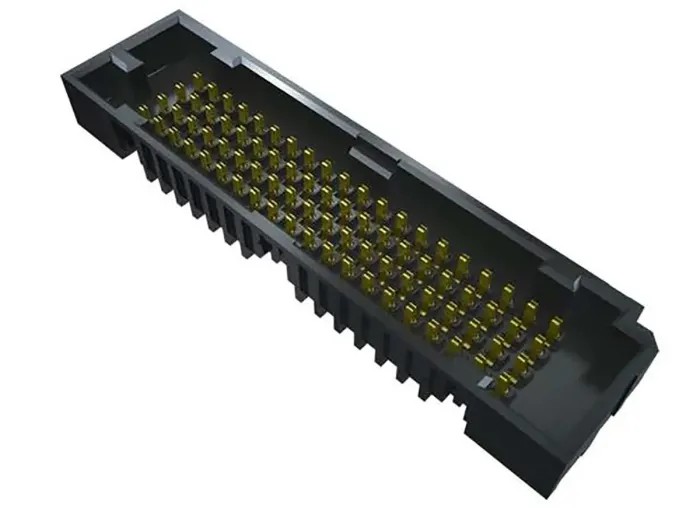

Samtec LPAM Series Straight Surface PCB Header 320 Contacts 1.27 mm Pitch 8 Row Shrouded LPAM-40-01.5-S-08-2-K-TR
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 2.2A |
| Model | LPAM-40-01.5-S-08-2-K-TR |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper Alloy |
| Series | LPAM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 8 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 320 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- Features a high-speed, high-density, low-profile open-pin-field array terminal.
- Constructed with a liquid crystal polymer housing for durability.
- Supports board-to-board connector system with surface mount type.
- Includes copper alloy contacts plated with gold for reliable conductivity.
- Operates at voltages up to 250V and current of 2.2A.
- Minimum operating temperature of -55°C and maximum of 125°C for versatility.
- Equipped with a dual beam contact system for improved signal integrity.
- Solder termination type ensures ease of processing in PCB assembly.
Product Description
Samtec LPAM-40-01.5-S-08-2-K-TR is a straight surface PCB header designed for high-speed and high-density applications. It features 320 contacts arranged in 8 rows with a 1.27 mm pitch, providing a robust board-to-board connection solution. Manufactured with liquid crystal polymer housing, this shrouded connector offers enhanced mechanical stability and protection for the contacts.
With a current rating of 2.2A and voltage capacity of 250V, it is suitable for demanding industrial and electronic applications. The gold-plated copper alloy contacts ensure excellent electrical performance and corrosion resistance. The dual beam contact system supports 56 Gbps PAM4 speed performance, making it ideal for high-frequency signal transmission.
This PCB header uses solder termination for ease of assembly and is designed with male contact gender. It withstands operating temperatures from -55°C to 125°C, allowing use in varied thermal environments.
Typical applications include electronic components manufacturing, telecommunications, computing devices, and industrial equipment requiring reliable and compact board-to-board connections.
High-speed, high-density open-pin-field array design. Liquid crystal polymer housing for enhanced durability. Gold-plated copper alloy contacts for superior conductivity. Supports 2.2A current and 250V voltage rating. Wide operating temperature range from -55°C to 125°C.
Dual beam contact system enabling 56 Gbps PAM4 performance. Solder termination and shrouded male contacts for reliability. This connector is part of the Samtec LPAM series. Explore more PCB Headers and connectors in the Electronics Components category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a voltage of 250V and a current of 2.2A.
It features a pitch of 1.27 mm and has a total of 320 contacts arranged in 8 rows.
The housing is constructed from liquid crystal polymer, which provides enhanced durability.
This PCB header uses solder termination for ease of assembly in PCB applications.
It can operate within a temperature range of -55°C to 125°C.
This unit features male contact gender.
The dual beam contact system supports high-speed performance, enabling data transmission speeds of up to 56 Gbps PAM4.
Yes, it is designed specifically as a board-to-board connector system.
This model has a straight orientation.
The contacts are plated with gold to ensure reliable conductivity and corrosion resistance.
The country of origin for this model is India.
It is suitable for applications in electronic components manufacturing, telecommunications, computing devices, and industrial equipment.
