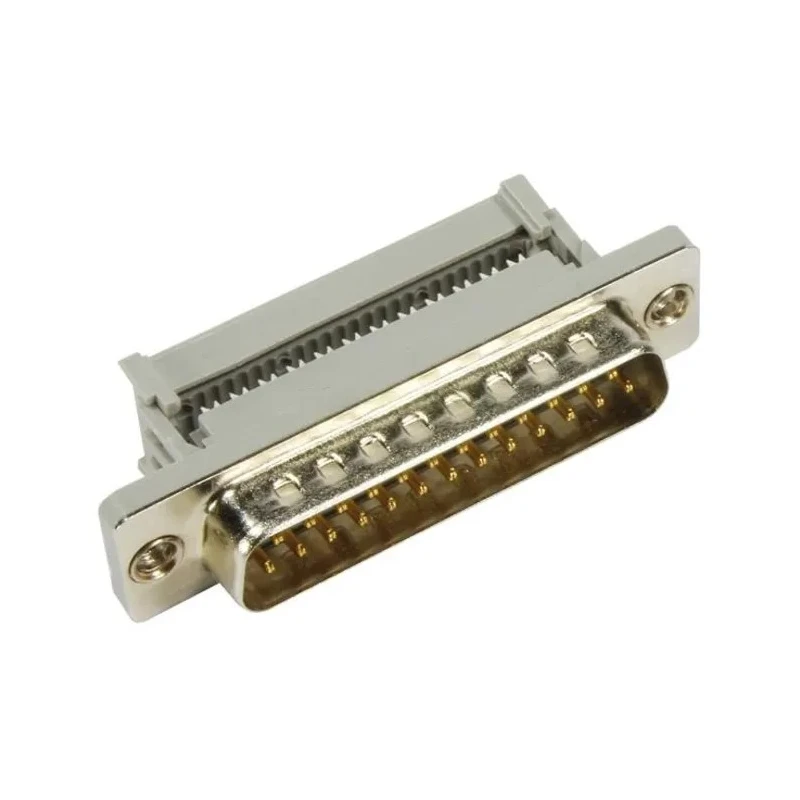

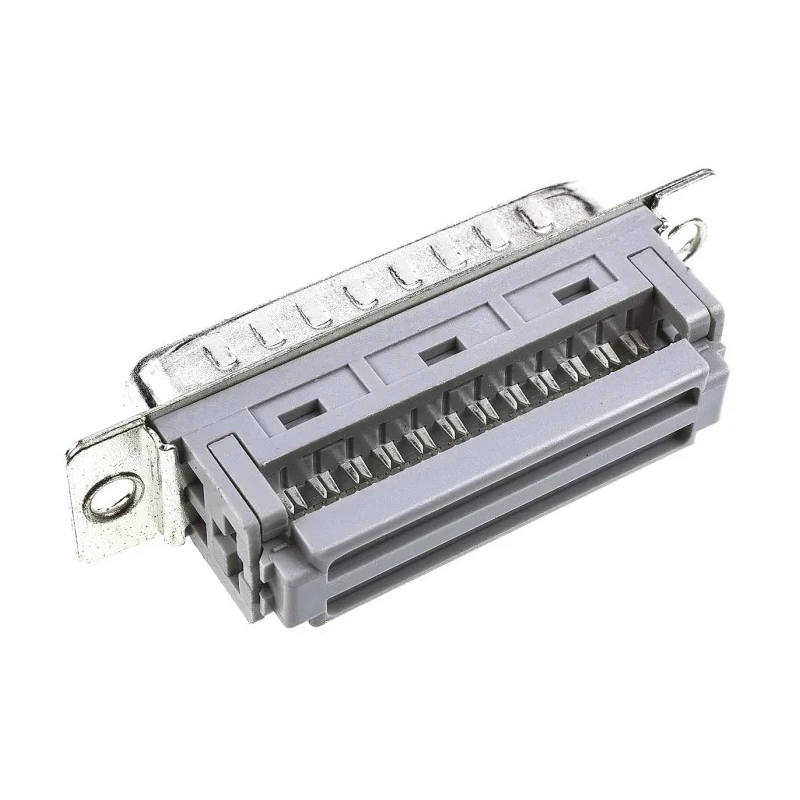

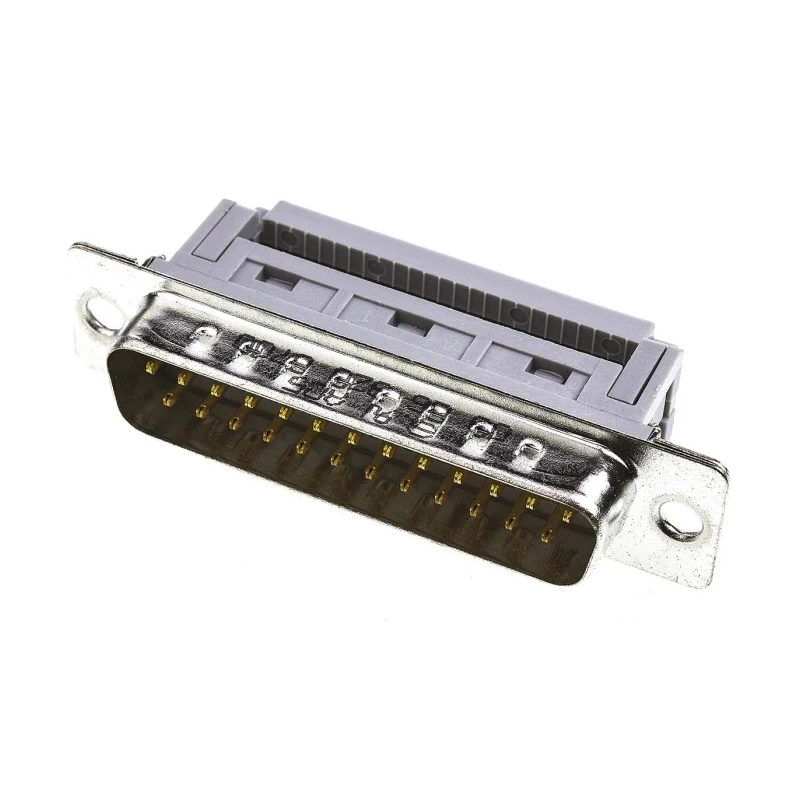

HARTING D-Sub Standard 25 Way Right Angle 2.77 mm Pitch Cable D-Sub Connector Male 09663286700
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 1kV |
| Brand | HARTING |
| Orientation | Right Angle |
| Current | 2A |
| Mount Type | Cable |
| Housing Material | Metal |
| Contact Material | Copper Alloy |
| Series | D-Sub Standard |
| Termination Type | IDC |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Pitch | 2.77mm |
| Contact Plating | Gold |
| Number of Contacts | 25 |
| Contact Gender | Male |
| Connector Gender | Male |
| Connector Type D | Standard |
| D-Sub Shell Size | DS-3 |
Key Features
- The connector supports 25 contacts for multi-pin signal distribution.
- Gold-plated copper alloy contacts ensure excellent conductivity and mechanical durability.
- The metal housing provides a secure and robust shell.
- Rated for 2A current per contact and 1 kV voltage withstand for reliable performance.
- Operates within a temperature range of -40°C to 85°C for versatile industrial use.
- Features an insulation displacement connection (IDC) termination for quick and solderless cable assembly.
- Right angle orientation facilitates compact cable routing in constrained spaces.
- Complies with standards including IDC, BT224, DIN41651, DIN41652, and DIN EN 60603-13.
Product Description
HARTING 09663286700 D-Sub Standard 25 Way Right Angle 2.77 mm Pitch Cable D-Sub Connector Male is engineered for robust industrial and automation applications requiring reliable cable-to-panel connections. This male connector features 25 gold-plated copper alloy contacts rated for 2A each, ensuring secure signal transmission in medium-current control environments.
The right-angle metal housing facilitates compact cable routing and secure mechanical mating within instrumentation, control cabinets, and machinery interfaces. It employs IDC termination allowing quick cable assembly without soldering, reducing installation time.
Engineered to operate between -40°C and 85°C, this connector withstands varying industrial ambient conditions while maintaining electrical integrity. Its design supports insulation up to 1 kV, suitable for transient voltage surges common in automation systems.
The connector conforms to multiple standards including IDC, BT224, DIN41651, DIN41652, and DIN EN 60603-13, ensuring compatibility and quality compliance. It is made in China with premium materials tailored for heavy-duty industrial and electronic testing equipment.
Supports 25 contact points for multi-signal interfacing. Gold-plated contacts for enhanced conductivity and corrosion resistance. Metal housing for mechanical durability and secure mounting. Current rating of 2A per contact to handle moderate electrical loads.
Voltage rating up to 1 kV for insulation and safety. Industrial operating temperature range from -40°C to 85°C. IDC cable termination for easy, efficient assembly without soldering. Right angle orientation for optimized space usage in installations.
Compliant with key international connector standards.
This product is ideal for use in industrial control systems, electronic instrumentation, machinery peripheral interfacing, and cable assemblies where reliable, compact, and durable connectors are essential. It serves a wide range of sectors including manufacturing, automation, laboratory instrumentation, and electronics testing.
Browse EnvMart's Power Connectors category for more HARTING connectors and compatible accessories to support your industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This D-Sub connector is rated for 2A current per contact, suitable for moderate electrical loads.
It has a voltage withstand rating of up to 1 kV, making it suitable for transient voltage surges in automation systems.
The connector operates within a temperature range of -40°C to 85°C, allowing for use in various industrial environments.
This model features 25 contacts, supporting multi-signal interfacing for various applications.
It employs insulation displacement connection (IDC) termination, allowing for quick and solderless cable assembly.
The contacts are made of gold-plated copper alloy, and the housing is constructed from metal for mechanical durability.
This D-Sub connector features a right angle orientation, which facilitates compact cable routing in constrained spaces.
The pitch size of this model is 2.77 mm, which is standard for D-Sub connectors.
It complies with several standards including IDC, BT224, DIN41651, DIN41652, and DIN EN 60603-13, ensuring compatibility and quality compliance.
This connector is manufactured in China, utilizing premium materials for industrial applications.
It is ideal for use in industrial control systems, electronic instrumentation, and machinery peripheral interfacing, among others.
The shell size of this model is DS-3, which is a standard size for D-Sub connectors.
