Nexperia 1-Element Uni-Directional TVS Diode 260 W, 2-Pin SOD-523 PESD5Z3.3,115

Free Delivery in India | Lowest Global Shipping Charges

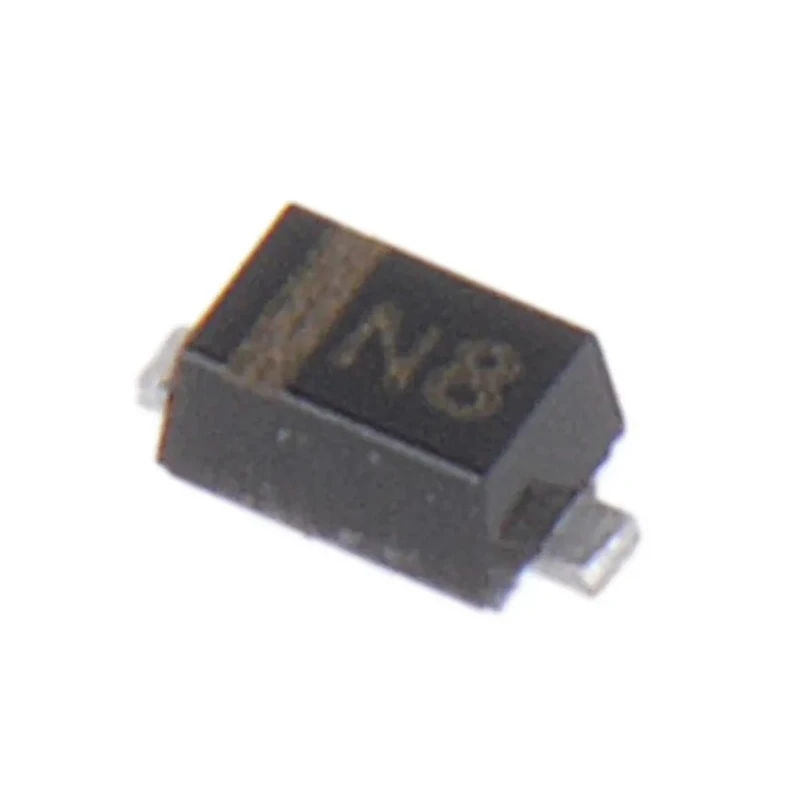

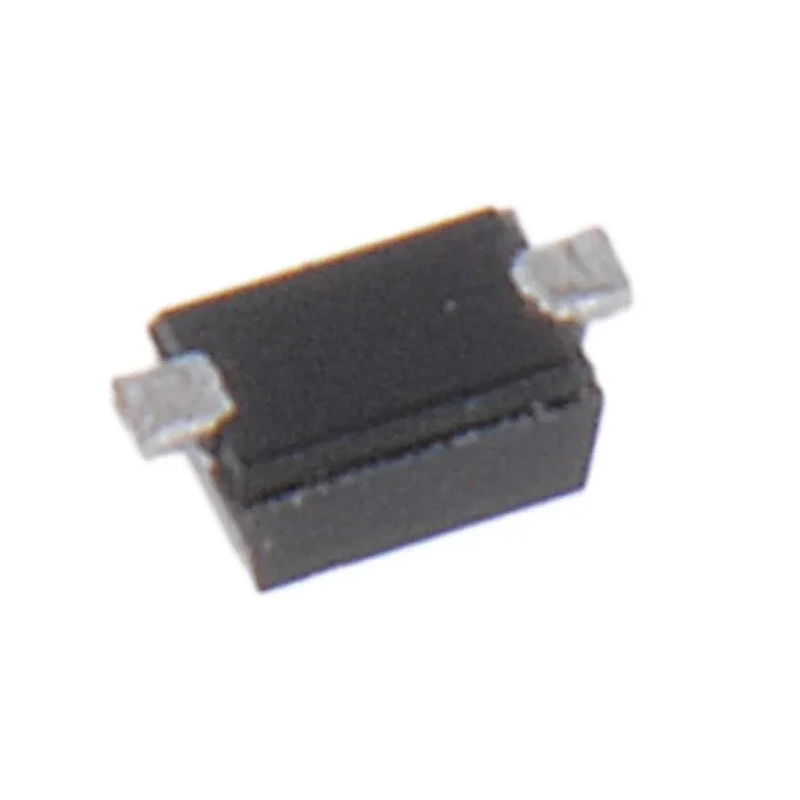

Nexperia 1-Element Uni-Directional TVS Diode 260 W, 2-Pin SOD-523 PESD5Z3.3,115

Name: Nexperia 1-Element Uni-Directional TVS Diode 260 W, 2-Pin SOD-523 PESD5Z3.3,115
Brand: Nexperia
SKU: 105770
Price: 0.07 USD
Availability: InStock



Category TVS Diode Brand Nexperia Condition New

Specifications

Country of Origin	China
Brand	Nexperia
Height	0.65mm
Length	1.25mm
Model	PESD5Z3.3,115
Width	0.85mm
Mount Type	Surface
Series	PESD
Maximum Operating Temperature	150°C
Package Type	SOD-523
Minimum Operating Temperature	-65°C
Pin Count	2
Number of Elements per Chip	1
Clamping Voltage VC	18V
Automotive Standard	AEC-Q101
Diode Configuration	Single
Direction Type	Uni-Directional
Minimum Breakdown Voltage Vbr	5V
Maximum Reverse Stand-off Voltage Vwm	3.3V
Peak Pulse Power Dissipation Pppm	260W
Test Current It	1mA
Maximum Peak Pulse Current Ippm	20A
Maximum Reverse Leakage Current	50nA
DiodesZetex D1213A-01T-7 1-Element Uni-Directional TVS Diode, 2-Pin SOD-523Brand	DiodesZetex

Key Features

Single diode configuration ensures effective circuit protection.
Uni-directional design prevents damaging voltage spikes one way.
Peak pulse power dissipation of 260 W for high transient energy absorption.
Compact 2-pin SOD-523 surface mount package for PCB integration.
Operates reliably over temperature range from -65°C to 150°C.
Low capacitance ideal for sensitive signal line ESD protection.
Clamping voltage of 18 V ensures fast response to transients.
Automotive-grade standard AEC-Q101 qualified for durability.

Product Description

Nexperia PESD5Z3.3,115 is a 1-element uni-directional Transient Voltage Suppressor (TVS) diode designed for protection of electronics against electrostatic discharge (ESD) and transient voltage spikes.

Housed in a compact 2-pin surface mount SOD-523 package, it suits applications requiring a low-capacitance, high-performance diode to protect one signal line.

This diode provides a peak pulse power dissipation of 260 W and can handle peak pulse currents up to 20 A, making it effective for absorbing high transient energy during voltage surges.

Operating across a wide temperature range from -65°C to 150°C, it ensures reliability in harsh industrial, automotive, and electronic environments. The device meets automotive grade AEC-Q101 standard, attesting to its quality and suitability for demanding system applications.

Single diode configuration provides precise uni-directional voltage suppression. Surface mount construction enables compact PCB design integration. Low leakage current of 50 nA reduces power loss during normal operation.

Clamping voltage of 18 V guarantees rapid transient suppression. Low capacitance supports signal integrity for high-speed circuits. Rated for maximum operating voltage of 3.3 V, minimum breakdown voltage of 5 V. Equipped with electrostatic discharge protection.

Dimensional footprint: 1.25 mm length, 0.85 mm width, 0.65 mm height. This diode is ideal for protecting sensitive electronics in industrial controls, automotive electronics, telecommunications, and consumer devices against voltage surges.

Available with reliable Nexperia quality and made in China, it is suited for high-volume manufacturing and precision applications requiring robust surge protection. Explore our extensive Electronics & Electricals inventory including semiconductors and discrete TVS Diodes on EnvMart for engineering and manufacturing needs.
