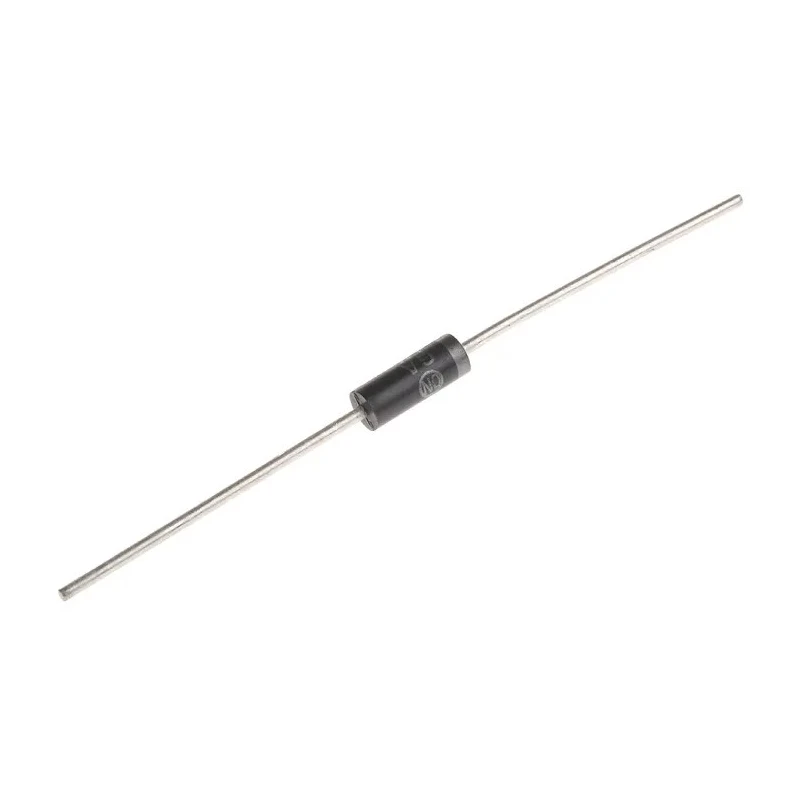

onsemi Zener Diode 9.1 V 5 W Single Through Hole 2-Pin DO-15 1N5346BG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 3.68mm |
| Length | 8.89mm |
| Model | 1N5346BG |
| Mount Type | Through Hole |
| Series | 1N53 |
| Maximum Operating Temperature | 200°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 5W |
| Diode Configuration | Single |
| Test Current It | 150mA |
| Maximum Reverse Leakage Current | 7.5μA |
| Nominal Zener Voltage Vz | 9.1V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 2Ω |
Key Features
- This diode features a 5 watt maximum power dissipation.
- It has a 9.1 V nominal Zener voltage with a ±5% tolerance.
- The axial-leaded through hole device has 2 pins for easy mounting.
- Maximum operating temperature reaches 200°C for high durability.
- The device offers a tight voltage regulation suitable for industrial applications.
- Reverse leakage current is low at 7.5 μA, reducing power loss.
- The maximum Zener impedance is 2 ohms ensuring stable voltage performance.
- Test current of 150 mA ensures reliable device operation.
Product Description
onsemi 1N5346BG is a high-quality single Zener diode rated at 9.1 V with a maximum power dissipation of 5 W in a 2-pin DO-15 axial lead through hole package. This voltage regulator diode is designed with a silicon-oxide passivated junction for excellent electrical performance and stable voltage regulation within ±5% tolerance.
The device withstands operating temperatures from -65°C to 200°C, making it suitable for demanding industrial environments where thermal reliability is essential. Its molded thermosetting plastic package offers corrosion resistance and mechanical robustness.
The 1N53 series from onsemi, including the 1N5346BG, features low reverse leakage current typically 7.5 μA and a maximum Zener impedance of 2 Ω, enabling efficient voltage regulation with minimal power loss. The axial-lead design simplifies through hole mounting in electronic assemblies.
This diode finds extensive applications in industrial electronic circuits requiring precise voltage regulation such as power supplies, voltage reference circuits, and surge protection devices. Its electrical and mechanical characteristics comply with standard semiconductor requirements.
The package dimensions are 8.89 mm in length and 3.68 mm in height, suitable for compact circuitry. The package is sealed with a void-free transfer molding process ensuring long-term reliability.
This single Zener diode is rated for 5 watts power dissipation. Nominal voltage is 9.1 V with a tolerance of ±5%. It supports through hole mount with 2 pins in a DO-15 package. Maximum operating temperature of 200°C provides robust durability.
Low reverse leakage current of 7.5 microamps minimizes energy loss. Maintains a maximum Zener impedance of 2 ohms for stable voltage regulation. Axial-leaded form factor is ideal for industrial PCB mounting. Manufactured and quality assured by onsemi with series 1N53 specification.
Explore more industrial semiconductor products within the Zener Diodes category on EnvMart for reliable components to support your electronic design and manufacturing needs.
