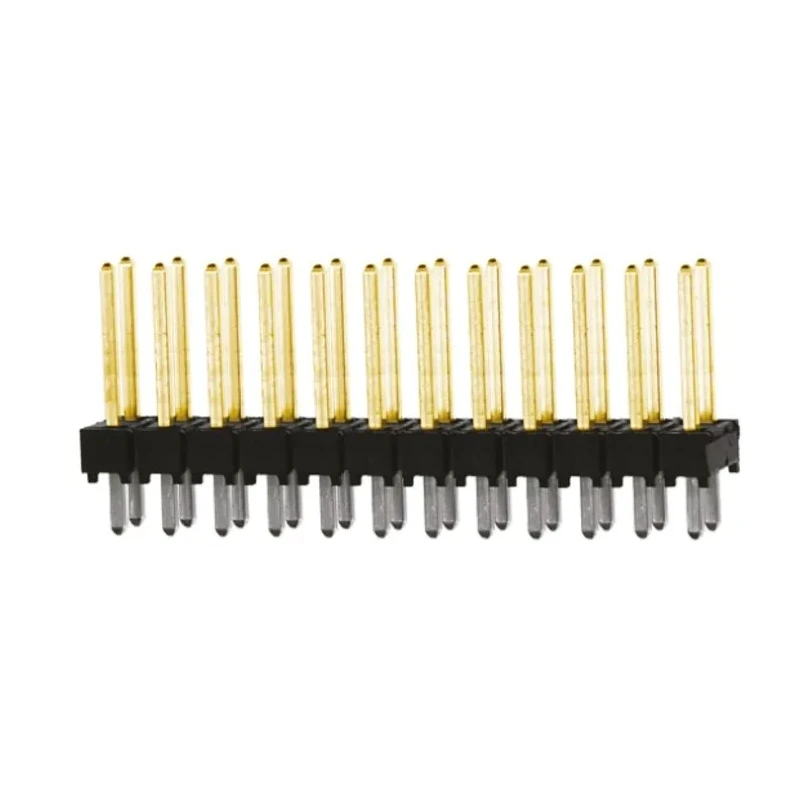

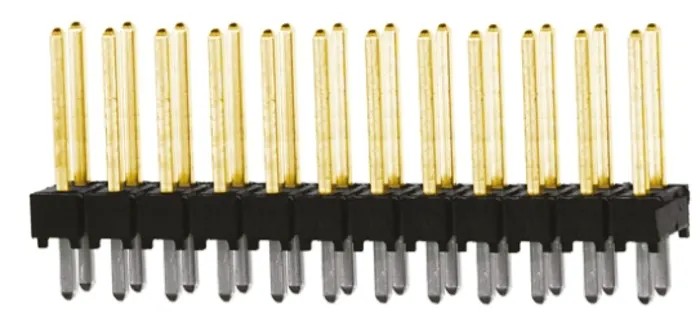

Samtec TSW Series Straight Through Hole Pin Header, 24 Contacts, 2.54 mm Pitch, 2 Row, Unshrouded, 550V TSW-112-14-L-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 550V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 7.6A |
| Model | TSW-112-14-L-D |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyester |
| Contact Material | Phosphor Bronze |
| Series | TSW |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 24 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 2.79mm |
| Mating Pin Length | 8.13mm |
Key Features
- The header features a robust glass filled polyester housing providing high temperature resistance.
- Contact material is phosphor bronze with gold plating ensuring reliable conductivity and corrosion resistance.
- Designed for board-to-board and wire-to-board connector systems with a current rating of 7.6A and voltage rating of 550V.
- Operation temperature ranges from -55°C to 125°C for demanding environments.
- Tail pin length is 2.79 mm with mating pin length of 8.13 mm for secure connections.
- Suitable for industrial electronics, PCB assembly, and connector interfacing applications.
Product Description
The Samtec TSW-112-14-L-D is a high-quality pin header from the TSW series, engineered for precise through hole mounting in PCB applications. Featuring 24 gold-plated contacts and a pitch of 2.54 mm across 2 rows, this unshrouded header ensures dependable electrical connections with excellent signal integrity.
Constructed with a glass filled polyester housing, the header provides durability and resistance to high temperatures with an operational range from -55°C to 125°C. The phosphor bronze contacts are plated with gold to maintain corrosion resistance and reduce contact resistance over time, supporting a current capacity of 7.6A and a voltage rating of 550V.
This pin header supports both board-to-board and wire-to-board connector systems, making it versatile for various industrial electronics, manufacturing, and assembly processes. Its solder termination type and straight orientation provide ease of assembly and reliable terminal strength.
The tail pin length of 2.79mm and mating pin length of 8.13mm ensure stable mechanical engagement, suitable for demanding environments requiring secure electrical connectors. The TSW series includes multiple configurations, with this model representing the double row (D) straight arrangement with specific plating and dimensions.
Robust glass filled polyester housing for mechanical and thermal stability. Gold plated phosphor bronze contacts increase conductivity and lifespan. Operational temperature range from -55°C to 125°C. Current rating of 7.6A at 550V suitable for industrial power and signal applications.
Designed for through hole mounting in PCB assembly lines. Applicable in electronics manufacturing, automation, and computing hardware.
This product is a key component in electronics and electrical systems requiring high reliability connectors. Available as part of the Samtec TSW series, it offers compatibility with various sockets and connectors to create modular and maintainable PCB assemblies. Suitable for use in laboratory equipment, industrial control systems, and communication devices.
Explore more connectors and headers within the Samtec product range and other electronics components available by category at EnvMart for professional industrial and manufacturing needs.
Explore more products in our PCB Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating of this pin header is 550V.
It supports a current capacity of 7.6A.
The operational temperature range is from -55°C to 125°C.
This model features 24 contacts.
The pitch size of the contacts is 2.54 mm.
The housing is made of glass filled polyester, and the contacts are phosphor bronze with gold plating.
It uses a solder termination type.
The tail pin length is 2.79 mm.
The mating pin length is 8.13 mm.
It is compatible with both board-to-board and wire-to-board connector systems.
The orientation of this model is straight.
This pin header is manufactured in India.
