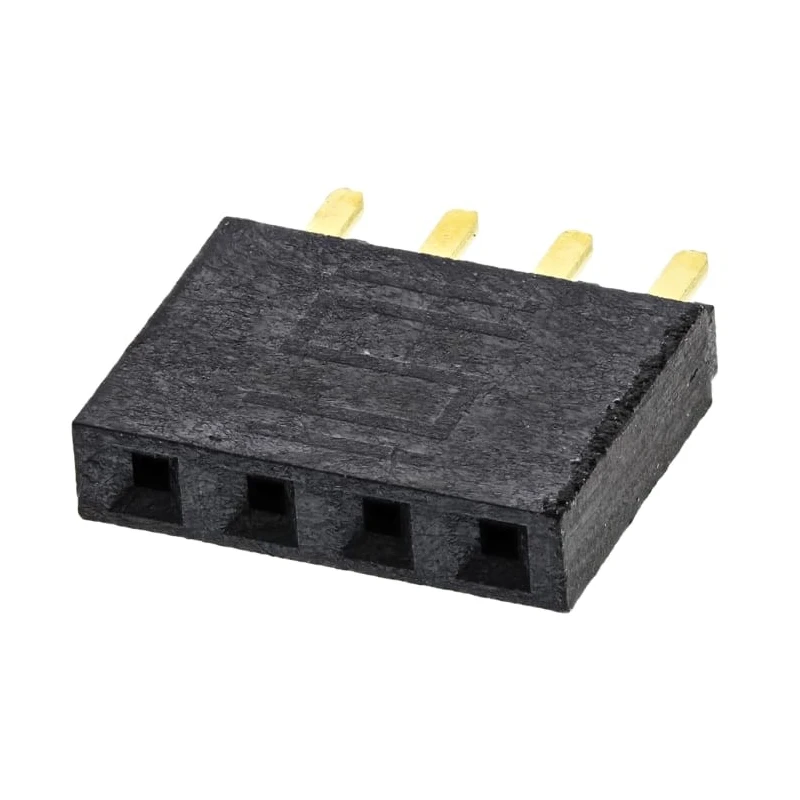

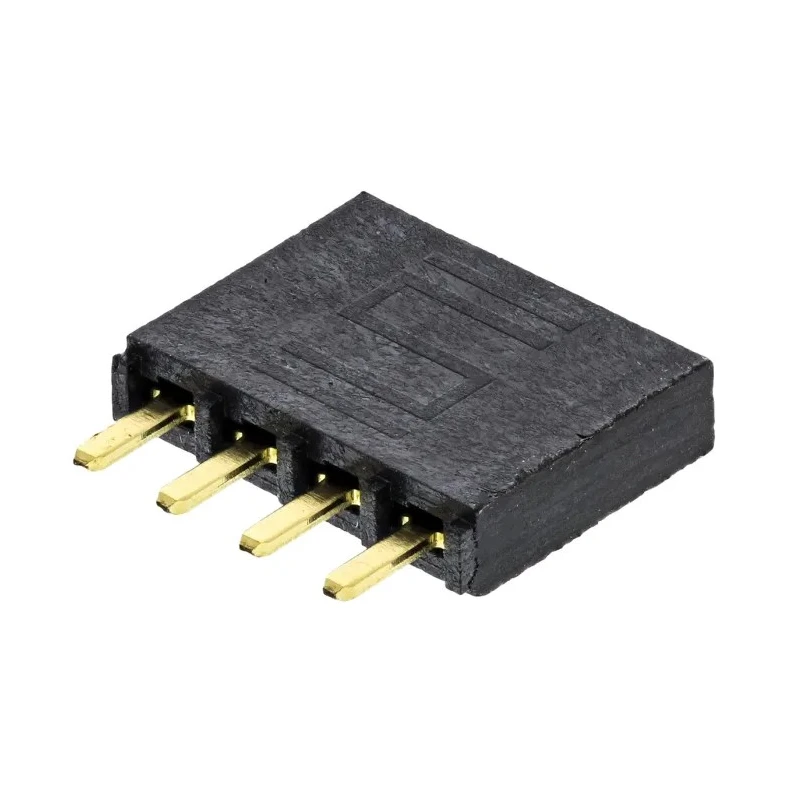

Samtec SSW Series Straight Through Hole PCB Socket, 4-Contact, 1 Row, 2.54 mm Pitch, 6.9A, 550V Solder SSW-104-01-G-S

Samtec SSW-104-01-G-S PCB Socket is a versatile and reliable 4-contact, 1-row straight through hole connector with a 2.54 mm pitch designed for board-to-board applications. The connector offers a compact design to maximize PCB space, perfect for industrial and electronic manufacturing environments requiring robust electrical connections.

The socket’s gold flash plated phosphor bronze contacts provide excellent conductivity and resist corrosion, ensuring efficient and continuous electrical flow. Its liquid crystal polymer housing offers superior insulation and mechanical strength to protect against electric shocks and physical damage.

The connector supports a current of up to 6.9 A and a voltage of 550 V, making it suitable for demanding industrial automation and control systems. Featuring through-hole mounting, it provides a strong, vibration-resistant attachment to circuit boards, enhancing operational reliability.

Operating temperature ranges between -55°C and 125°C, which makes the socket compatible with various industrial and harsh environment conditions. The female contact gender design aligns with standard PCB connector implementations, enabling easy integration in automated assembly lines and medical device manufacturing.

The socket features a compact 2.54 mm pitch to maximize board space efficiency. Gold flash plated phosphor bronze contacts ensure high conductivity and resistance to corrosion. The socket has a current rating of 6.9A and voltage rating of 550V for reliable electrical performance.

Through-hole mounting offers a durable, vibration-resistant connection. Operating temperature range from -55°C to 125°C supports demanding industrial environments. Housing is made from liquid crystal polymer providing effective insulation and durability.

Designed for board-to-board connector systems with female contact gender. Ideal for use in medical, pharmaceutical manufacturing, industrial automation, and electronics industries.

This Samtec PCB Socket is an excellent choice for engineers and manufacturers seeking dependable and compact board-to-board connections in medical, industrial automation, and electronics production. Explore additional Samtec connectors and components at EnvMart for comprehensive electronic assembly projects.
