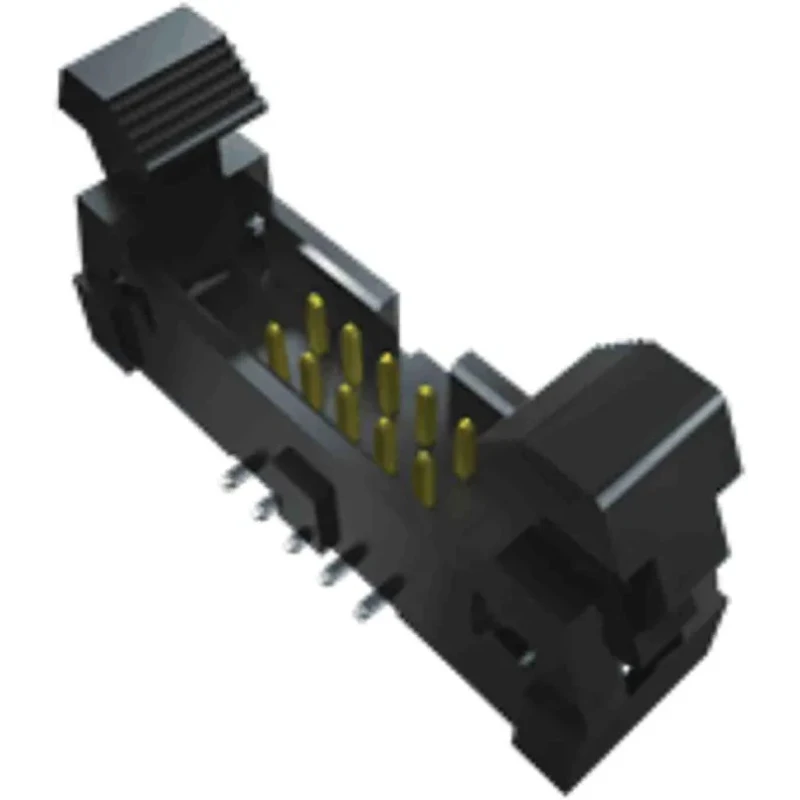

Samtec 10-Way Shrouded Male PCB Header 2 Row Through Hole 2mm Pitch EHT-105-01-F-D
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Straight |
| Operating Temperature Range | -55°C to +125°C |
| Model | EHT-105-01-F-D |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | EHT |
| Termination Type | IDC |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold, Tin |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Connector Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Insulator Material | black liquid crystal polymer |
| SMT lead coplanarity | 0.10mm max |
Key Features
- Constructed with phosphor bronze contacts for reliable conductivity.
- Features gold and tin plating on contacts for corrosion resistance.
- Uses black liquid crystal polymer housing for durable insulation.
- Supports operating temperatures from -55°C to +125°C.
- Includes polarization notch for correct cable orientation.
- Compatible with IDC termination for quick and secure cable connections.
- Offers straight orientation and has SMT lead coplanarity of 0.10mm max.
- The header is part of the Samtec EHT series for high-quality electrical connections.
Product Description
Samtec EHT-105-01-F-D is a precision-engineered 10-way shrouded male PCB header designed for through-hole applications in electronics. It features two rows of contacts spaced at a 2mm pitch, facilitating high-density PCB connections. The contacts are manufactured from phosphor bronze material and plated with gold and tin, ensuring excellent electrical conductivity and corrosion resistance. The housing uses a black liquid crystal polymer insulator that offers high durability and temperature stability.
This PCB header is designed to operate within a temperature range of -55°C to +125°C, making it suitable for use in demanding industrial, manufacturing, and electronic assembly environments. Its polarization notch ensures correct cable orientation, preventing misalignment during installation. The product supports IDC termination, which provides a reliable and quick method for connecting cables without soldering.
The straight orientation of the header and SMT lead coplanarity of 0.10mm max ensure compatibility with standard PCB assembly processes. As part of the Samtec EHT series, this header meets the requirements for high-performance IDC connectors in various industrial applications including telecommunications, automation, instrumentation, and embedded systems.
Phosphor bronze contacts plated with gold and tin provide superior electrical reliability. Housing made from liquid crystal polymer offers robust insulation and mechanical strength. Operating temperature range supports both extreme cold and heat environments.
Shrouded and polarized design prevents incorrect mating. Ideal for industrial, manufacturing, and electronic device assembly applications. Compatible with IDC cables for efficient terminations. Ensures high-quality through-hole mounting with a 2mm pitch and straight orientation.
Incorporates Samtec’s EHT series quality standards for reliability. Explore more Samtec connectors and PCB Headers in the Electronics Components category at EnvMart for your PCB assembly and electronic connector needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this header is 2mm, facilitating high-density PCB connections.
It operates within a temperature range of -55°C to +125°C, making it suitable for various environments.
The contacts are made from phosphor bronze and are plated with gold and tin for enhanced conductivity and corrosion resistance.
This model supports IDC termination, allowing for quick and secure cable connections without soldering.
It features 10 contacts arranged in two rows.
The maximum SMT lead coplanarity is 0.10mm, ensuring compatibility with standard PCB assembly processes.
It has a straight orientation, which is standard for through-hole mounting.
The housing is made from black liquid crystal polymer, providing robust insulation and mechanical strength.
The Samtec EHT-105-01-F-D header is shrouded, which helps prevent incorrect mating during installation.
The country of origin for this header is India.
It is part of the Samtec EHT series, known for high-performance IDC connectors.
This model is suitable for various industrial applications including telecommunications, automation, and embedded systems.
