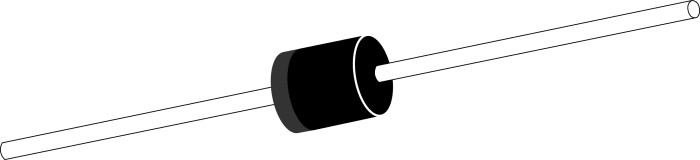

Littelfuse 1-Element Uni-Directional TVS Diode, 5 kW Peak Pulse Power Dissipation, 2-Pin P600 Package 5KP33A
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 9.1mm |
| Brand | Littelfuse |
| Length | 9.1mm |
| Model | 5KP33A |
| Mount Type | Through Hole |
| Series | 5KP |
| Maximum Operating Temperature | 175°C |
| Package Type | P600 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 53.3V |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 36.7V |
| Maximum Reverse Stand-off Voltage Vwm | 33V |
| Peak Pulse Power Dissipation Pppm | 5kW |
| Test Current It | 5mA |
| Maximum Peak Pulse Current Ippm | 95.7A |
| Maximum Reverse Leakage Current | 2μA |
Key Features
- This diode features a peak pulse power dissipation of 5 kW for robust transient protection.
- It has a minimum breakdown voltage of 36.7 V and a maximum reverse stand-off voltage of 33 V.
- The component is designed with a uni-directional diode configuration and offers effective ESD protection.
- Rated for operation between -55°C and 175°C for reliability in harsh environments.
- Compact through-hole P600 package with 2 pins allows easy PCB mounting and integration.
- Maximum peak pulse current rating is 95.7 A, ensuring high surge current tolerance.
- Clamping voltage of 53.3 V provides voltage spike suppression to protect sensitive electronics.
- Maximum reverse leakage current is low at 2μA, enhancing energy efficiency.
Product Description
Littelfuse 5KP33A is a high-performance uni-directional 1-element TVS (Transient Voltage Suppressor) diode engineered to protect electronic circuits from voltage spikes and transient surges. It delivers a peak pulse power dissipation of 5 kW, making it highly suitable for transient voltage protection in industrial electronics and power supply protection systems.
Featuring a minimum breakdown voltage of 36.7 V and a maximum reverse stand-off voltage of 33 V, this diode provides precise voltage clamping with a clamping voltage rated at 53.3 V. The device supports an operational temperature range from -55°C up to 175°C, ensuring reliability in demanding environments.
Housed in a compact, through-hole P600 package with 2 pins, the 5KP33A offers ease of installation on printed circuit boards and integration into electronic assemblies. Its peak pulse current capacity of 95.7 A allows it to withstand significant transient currents during voltage surges, while the low maximum reverse leakage current of 2μA minimizes power loss and improves efficiency.
This diode is ideal for use in applications such as industrial power supplies, electronic equipment, telecommunications, and automotive electronics where voltage transients pose a threat to sensitive components.
This diode features a peak pulse power dissipation of 5 kW for robust transient protection. It has a minimum breakdown voltage of 36.7 V and a maximum reverse stand-off voltage of 33 V. The component is designed with a uni-directional diode configuration and offers effective ESD protection.
Rated for operation between -55°C and 175°C for reliability in harsh environments. Compact through-hole P600 package with 2 pins allows easy PCB mounting and integration. Maximum peak pulse current rating is 95.7 A, ensuring high surge current tolerance.
Clamping voltage of 53.3 V provides voltage spike suppression to protect sensitive electronics. Maximum reverse leakage current is low at 2μA, enhancing energy efficiency. Suitable for industrial, electronic, and power protection applications requiring robust transient voltage suppression.
Explore more Littelfuse TVS Diodes and semiconductor components at EnvMart for reliable, industry-grade solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The 5KP33A TVS diode features a peak pulse power dissipation of 5 kW, providing robust transient protection for electronic circuits.
This model has a minimum breakdown voltage of 36.7 V, which allows it to effectively clamp voltage surges.
The maximum reverse stand-off voltage for this diode is 33 V, ensuring it operates safely under normal conditions.
The clamping voltage for this diode is rated at 53.3 V, providing effective voltage spike suppression.
This unit has a maximum peak pulse current rating of 95.7 A, allowing it to withstand significant transient currents during voltage surges.
The diode is rated for operation between -55°C and 175°C, making it suitable for use in harsh environments.
It is housed in a compact through-hole P600 package with 2 pins, facilitating easy PCB mounting.
This model is a single-element diode, designed for uni-directional operation.
The maximum reverse leakage current for the 5KP33A is low at 2μA, enhancing energy efficiency.
The test current for this diode is specified at 5 mA, which is used for performance evaluation.
The 5KP33A is manufactured in India, which is noted in its specifications.
This diode is ideal for applications in industrial power supplies, electronic equipment, telecommunications, and automotive electronics where voltage transients can damage sensitive components.
