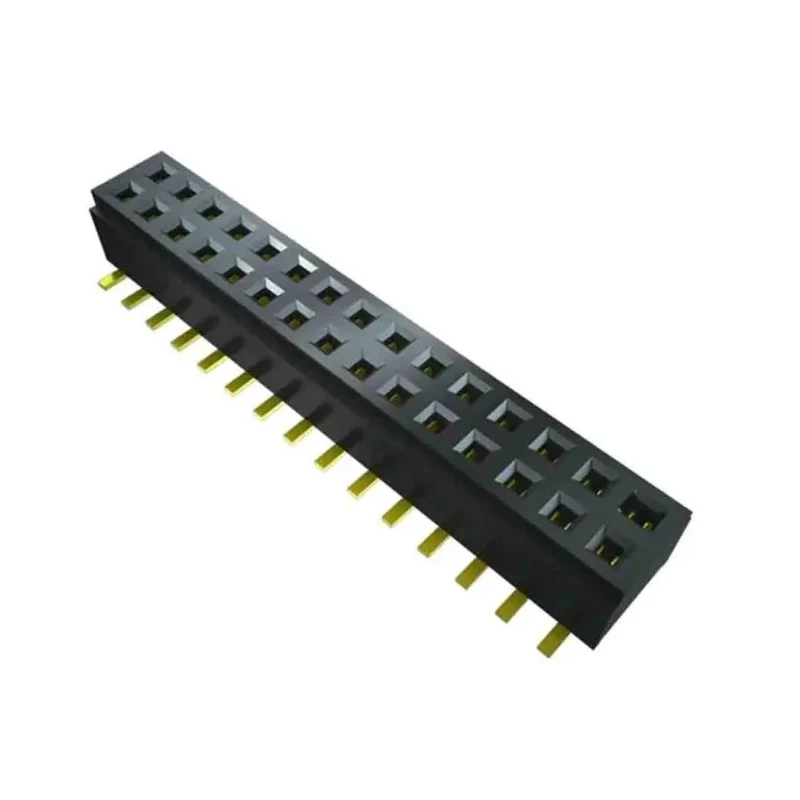

Samtec CLM Series Vertical Surface PCB Socket, 7-Contact, 2 Row, 1 mm Pitch Press-in CLM-107-02-F-D-P-TR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Vertical |
| Model | CLM-107-02-F-D-P-TR |
| Mount Type | Surface |
| Housing Material | LCP |
| Contact Material | Phosphor Bronze |
| Series | CLM |
| Termination Type | Press-in |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold |
| Number of Contacts | 7 |
Key Features
- Features a vertical orientation for surface mounting.
- Utilizes a Tiger claw dual-wipe contact system for pass-through arrangement.
- Constructed with phosphor bronze contacts plated in gold for durability.
- Housing is made of LCP material ensuring thermal stability.
- Suitable for operating temperatures ranging from -55°C to 125°C.
- Compliant with RoHS standards for environmental safety.
- Available in the CLM series optimizing reliability for PCB socket applications.
- Termination type is press-in for secure electrical connection.
Product Description
Samtec CLM-107-02-F-D-P-TR vertical surface PCB socket is engineered for high reliability and rugged printed circuit board mounting applications. This 7-contact, 2-row socket features a 1 mm pitch and press-in termination type, ideal for both top- and bottom-entry configurations.
The contact system employs Tiger claw dual-wipe technology, which ensures robust pass-through electrical connections while maintaining excellent contact integrity. Contacts are fabricated from phosphor bronze and plated with gold to provide superior conductivity and corrosion resistance.
The housing is manufactured with LCP material, granting stability under a wide operational temperature range from -55°C to 125°C, making it suited for demanding industrial and commercial electronic uses. The socket’s vertical orientation facilitates effective surface mounting on PCBs.
Designed for compliance with RoHS standards, this CLM series socket supports environmentally friendly manufacturing requirements. Packaging options include economic tape and reel formats, supporting automated assembly line integration.
Applications for this PCB socket span electronic device manufacturing, industrial equipment, and other electronics requiring secure, reliable surface mount connector solutions. The durable construction ensures excellent performance in a wide variety of industrial, laboratory, and manufacturing environments.
Features a vertical orientation for surface mounting. Utilizes a Tiger claw dual-wipe contact system for pass-through arrangement. Constructed with phosphor bronze contacts plated in gold for durability. Housing is made of LCP material ensuring thermal stability.
Suitable for operating temperatures ranging from -55°C to 125°C. Compliant with RoHS standards for environmental safety. Available in the CLM series optimizing reliability for PCB Socket applications. Termination type is press-in for secure electrical connection.
Ideal for top- and bottom-entry applications. Optional tape and reel packaging available for automated assembly. Explore more advanced PCB connectors and sockets for electronics manufacturing on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this PCB socket is 1 mm.
The maximum operating temperature for the CLM-107-02-F-D-P-TR is 125°C.
This model features 7 contacts.
The contacts are made of phosphor bronze and are plated with gold.
It uses a press-in termination type for secure electrical connections.
This socket has a vertical orientation for surface mounting.
Yes, it is compliant with RoHS standards for environmental safety.
The housing is made of LCP material, which ensures thermal stability.
The minimum operating temperature for the CLM-107-02-F-D-P-TR is -55°C.
This PCB socket has 2 rows.
It is suitable for electronic device manufacturing, industrial equipment, and other electronics requiring secure, reliable surface mount connections.
Packaging options include economic tape and reel formats, supporting automated assembly line integration.
