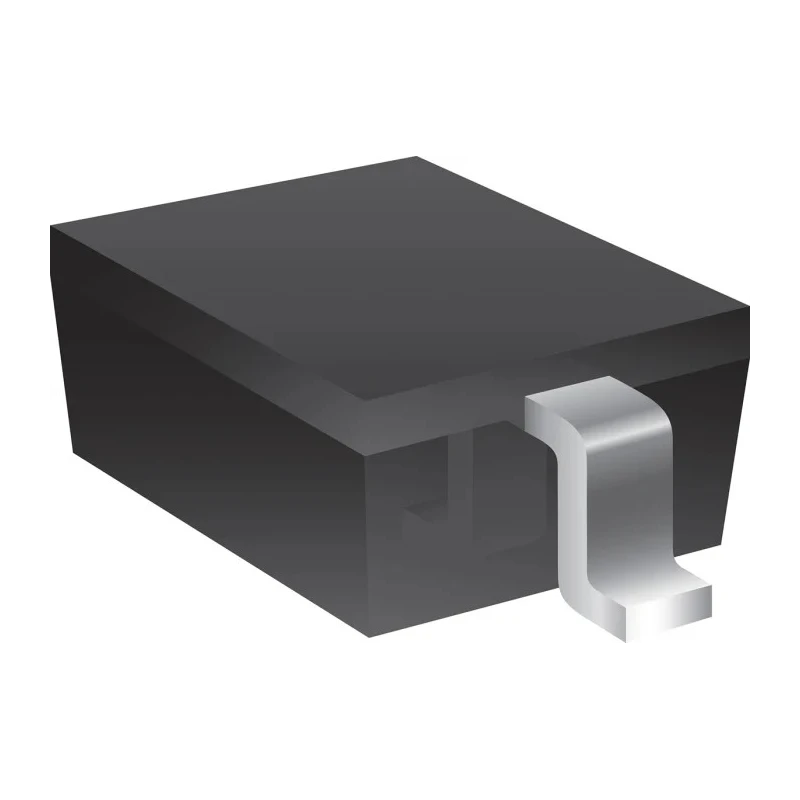

Bourns 1-Element Bi-Directional Transient Voltage Suppressor Diode 400 W, 2-Pin SOD-323 CDSOD323-T03SC
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | Bourns |
| Height | 1.01mm |
| Length | 1.9mm |
| Model | CDSOD323-T03SC |
| Width | 1.45mm |
| Mount Type | Surface |
| Series | CDSOD |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-323 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 8V |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 4V |
| Peak Pulse Power Dissipation Pppm | 400W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 43A |
| Maximum Reverse Leakage Current | 125μA |
Key Features
- Single element diode configuration designed for bidirectional voltage suppression.
- Minimum breakdown voltage of 4 V with a clamping voltage of 8 V to protect sensitive electronics.
- Surface mount package with 2 pins for easy PCB integration.
- Operates over a temperature range from -55°C to 150°C for reliable performance.
- Maximum peak pulse current rating of 43 A ensures robust surge protection.
- Low maximum reverse leakage current of 125 μA minimizes power loss.
- ESD protection capability suitable for portable communication and computing equipment.
Product Description
Bourns CDSOD323-T03SC is a 1-element bi-directional Transient Voltage Suppressor Diode rated for a peak pulse power dissipation of 400 watts. It comes in a compact SOD-323 surface mount package with 2 pins making it ideal for space-constrained electronic applications.
This TVS diode offers excellent surge and ESD protection for sensitive semiconductor devices used in portable communications, computing, and video equipment. Its minimum breakdown voltage of 4 volts and clamping voltage of 8 volts provide effective transient voltage suppression.
The diode supports operation across a wide temperature range from -55°C to 150°C, ensuring performance in diverse environments. With a maximum peak pulse current of 43 A, it can withstand substantial transient energy without damage.
The device’s low maximum reverse leakage current of 125 microamperes helps reduce power consumption and increases efficiency. Its small package size (1.9 mm length, 1.45 mm width, 1.01 mm height) facilitates high-density mounting on modern PCBs.
Single element, bi-directional diode configuration for reliable transient voltage protection. 400 W peak pulse power dissipation rating for robust surge absorption. Surface mount SOD-323 package with 2 pins for compact device integration.
Minimum breakdown voltage of 4 V and a clamping voltage of 8 V. Wide operating temperature range from -55°C to 150°C suitable for industrial use. Maximum peak pulse current of 43 A for handling high transient currents. Low leakage current of 125 μA enhances overall circuit efficiency.
Applicable in electronic devices requiring transient voltage suppression and ESD protection.
Manufactured in the Philippines, this Bourns CDSOD323-T03SC TVS diode meets the demands of industrial, telecommunications, consumer electronics, and computing sectors. It is widely used to safeguard circuits against voltage spikes and electrostatic discharge.
Explore similar and related TVS Diode components in the Electronics & Electricals category on EnvMart to find the perfect fit for your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Bourns CDSOD323-T03SC has a peak pulse power dissipation rating of 400 watts.
The minimum breakdown voltage for this diode is 4 volts.
The clamping voltage of this model is 8 volts.
This TVS diode has a maximum peak pulse current rating of 43 A.
The dimensions of the SOD-323 package are 1.9 mm in length, 1.45 mm in width, and 1.01 mm in height.
It operates over a temperature range from -55°C to 150°C.
The CDSOD323-T03SC uses surface mounting for easy PCB integration.
The maximum reverse leakage current is 125 μA.
The SOD-323 package has 2 pins.
This model features a single element, bi-directional diode configuration.
The Bourns CDSOD323-T03SC is manufactured in the Philippines.
It is suitable for protecting sensitive semiconductor devices in portable communications, computing, and video equipment.
