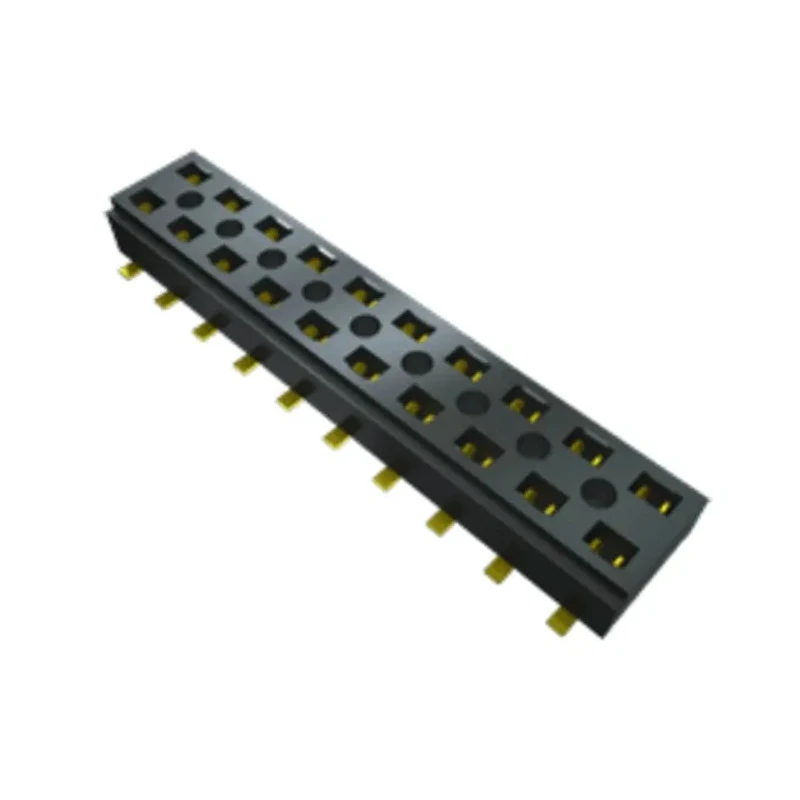

Samtec CLT Series Straight Surface PCB Socket 8-Contact, 2 Row, 2 mm Pitch, 4.1A Current, Black Liquid CLT-104-02-L-D-A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Straight |
| Current | 4.1A |
| Model | CLT-104-02-L-D-A |
| Mount Type | Surface |
| Housing Material | Black Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | CLT |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold over Tin |
| Number of Contacts | 8 |
Key Features
- Constructed with black liquid crystal polymer housing for high insulation.
- Phosphor bronze contact material ensures durability and conductivity.
- Gold over tin plating on contacts provides reliable corrosion resistance.
- Supports up to 4.1 amps per pin current for demanding applications.
- Surface mount with straight orientation suitable for PCB assembly.
- Operates robustly in temperature ranges from -55°C to 125°C.
- Complies with RoHS standards for environmental safety.
- Part of the CLT series known for Tiger Claw dual wipe contact reliability.
Product Description
Samtec CLT-104-02-L-D-A is a straight surface mount PCB socket featuring 8 contact points arranged in 2 rows with a 2 mm pitch. This component is part of the robust CLT series, designed to provide reliable dual wipe contact performance for board-to-board connections in electronic assemblies.
The housing is made from black liquid crystal polymer, offering excellent insulation and thermal stability, making it suitable for industrial and commercial electronic manufacturing. Its phosphor bronze contacts plated with gold over tin ensure exceptional endurance, electrical conductivity, and corrosion resistance during operation.
The socket supports a continuous current rating of 4.1 amperes per pin, making it appropriate for applications requiring moderate power transfer and signal integrity. Operating temperature range from -55°C to 125°C expands usability across demanding temperature environments.
This product meets RoHS compliance standards, affirming its adherence to environmental safety regulations. The CLT series Tiger Claw design ensures rugged, reliable connections with dual wipe contact technology.
Industrial sectors such as electronics manufacturing, laboratory instrumentation, and telecommunications equipment assembly benefit from this socket's precise board-to-board interfacing capability. Its straight orientation and surface mount style simplify integration into modern PCB designs.
Black liquid crystal polymer housing provides high insulation. Phosphor bronze contacts plated with gold over tin enhance durability. 4.1A per pin electrical rating supports moderate power applications. Temperature range from -55°C to +125°C for diverse environments.
RoHS compliant for environmental safety. Innovative Tiger Claw dual wipe contact design. Surface mount and straight orientation facilitates PCB assembly. Explore more PCB Sockets and electronic components at EnvMart for your specialized requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This socket supports a continuous current rating of 4.1 amperes per pin, making it suitable for moderate power applications.
The Samtec CLT-104-02-L-D-A features a 2 mm pitch and has 8 contacts arranged in 2 rows.
It is constructed with a black liquid crystal polymer housing and phosphor bronze contact material, with contacts plated in gold over tin.
This socket operates within a temperature range from -55°C to 125°C, allowing it to function in diverse environments.
Yes, this product complies with RoHS standards, ensuring it meets environmental safety regulations.
This model is designed for surface mounting, which simplifies integration into modern PCB designs.
The Tiger Claw dual wipe contact design enhances the reliability of board-to-board connections by ensuring a secure electrical contact.
The termination type for this socket is solder, which is standard for PCB assembly.
This socket features a straight orientation, making it suitable for various PCB layouts.
The socket is manufactured in India.
It is suitable for applications in electronics manufacturing, laboratory instrumentation, and telecommunications equipment assembly.
The gold over tin plating provides reliable corrosion resistance, enhancing the durability and conductivity of the contacts during operation.
