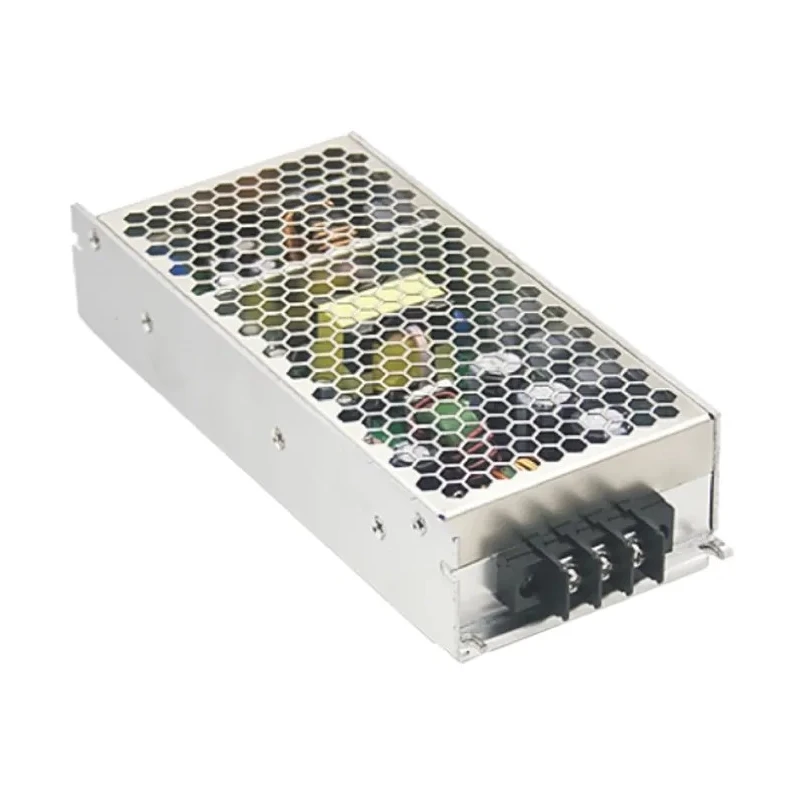

MEAN WELL 200W Railway Certified Regulated Isolated DC/DC Converter Chassis Mount 24V DC Output RSD-200B-24
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Converters / DC-DC Converters MEAN WELL RSD 200 DC/DC Converter, 24V dc/, 24V dc |
| Brand | MEAN WELL |
| Efficiency | 89% |
| Length | 191mm |
| Model | RSD-200B-24 |
| Depth | 40mm |
| Gross Weight | 940g |
| Width | 40mm |
| Mount Type | Chassis |
| Series | RSD 200 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -40°C |
| MTBF | 218200h |
| Number of outputs | 1 |
| Ripple and Noise | 150mV Pk-Pk |
| Maximum Output Power | 201.6W |
| Maximum Input Voltage | 24V dc |
| Standards/Approvals | EN/IEC |
| Minimum Input Voltage | 16.8V |
| Output Voltage 1 | 24V dc |
| Output Current 1 | 8.4A |
| Isolation Voltage | 4kV dc |
| Input Ratio | 2:1 |
| Input Ratio 2 | 1 |
Key Features
- Complies with railway certification standards including EN50155 and IEC60571.
- High efficiency up to 89% ensuring energy saving and reduced heat generation.
- Features 4000V DC input/output isolation and 150mV peak-to-peak ripple and noise.
- Operating temperature range from -40°C to 70°C for harsh environmental suitability.
- Built-in protections against short circuit, overload, over voltage, and over temperature.
- Compact dimensions with a low profile of 39mm height and chassis mount for easy installation.
- Designed for robust use in railway, transportation, industrial and automation applications.
Product Description
MEAN WELL RSD-200B-24 is a 200W railway-certified regulated isolated DC/DC converter designed for applications requiring dependable power conversion with high reliability and compliance to stringent railway standards. This chassis mount converter provides a stable 24V DC output from a DC input range of 16.8V to 24V, accommodating fluctuating power sources common in vehicular power systems.
Designed with a 2:1 wide input voltage range, it supports robust system operation within harsh environments with operating temperature from -40°C to +70°C. Its high efficiency of 89% results in minimal power loss enhancing operational life and reducing energy cost.
The converter features 4000V DC isolation between input and output, protecting sensitive electronics against surges and noise. Ripple and noise are maintained at a low 150mV peak-to-peak ensuring stable output power suitable for precision industrial and railway equipment.
Its chassis mount construction is compact (191mm length × 40mm width × 40mm depth) and lightweight at 940g, enabling easy integration in confined spaces. The RSD-200B-24 includes built-in current limiting and protection against short circuit, overload, over voltage, and over temperature scenarios for enhanced operational safety.
Certified to EN50155, IEC60571, IEC61373, and EN50121-3-2 railway standards, this product is optimized for industrial, railway, transport vehicles, manufacturing automation, and other demanding power supply applications.
Railway certified with compliance to EN50155 and relevant IEC standards. Wide 2:1 input voltage range from 16.8V to 24V DC. High efficiency of 89% with low ripple and noise. Robust chassis mount design with semi-encapsulation for PCB protection.
Built-in protections: short circuit, overload, over voltage, over temperature. Operating temperature range from -40°C to +70°C. 4000V DC isolation for input to output. Ideal for railway, industrial, and automotive power solutions.
Explore more DC/DC converters and power modules by browsing EnvMart’s Electronics & Electricals > Converters > DC/DC Converter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a stable output voltage of 24V DC.
The maximum output power is 201.6W.
It supports a wide input voltage range from 16.8V to 24V DC.
The efficiency of the RSD-200B-24 is up to 89%.
This unit has dimensions of 191mm in length, 40mm in width, and 40mm in depth.
It operates effectively within a temperature range of -40°C to +70°C.
This model features a chassis mount design for easy installation.
It includes protections against short circuit, overload, over voltage, and over temperature.
The isolation voltage is 4000V DC, protecting sensitive electronics from surges and noise.
It complies with EN50155, IEC60571, IEC61373, and EN50121-3-2 railway standards.
The gross weight of this model is 940g.
The RSD-200B-24 has one output.
