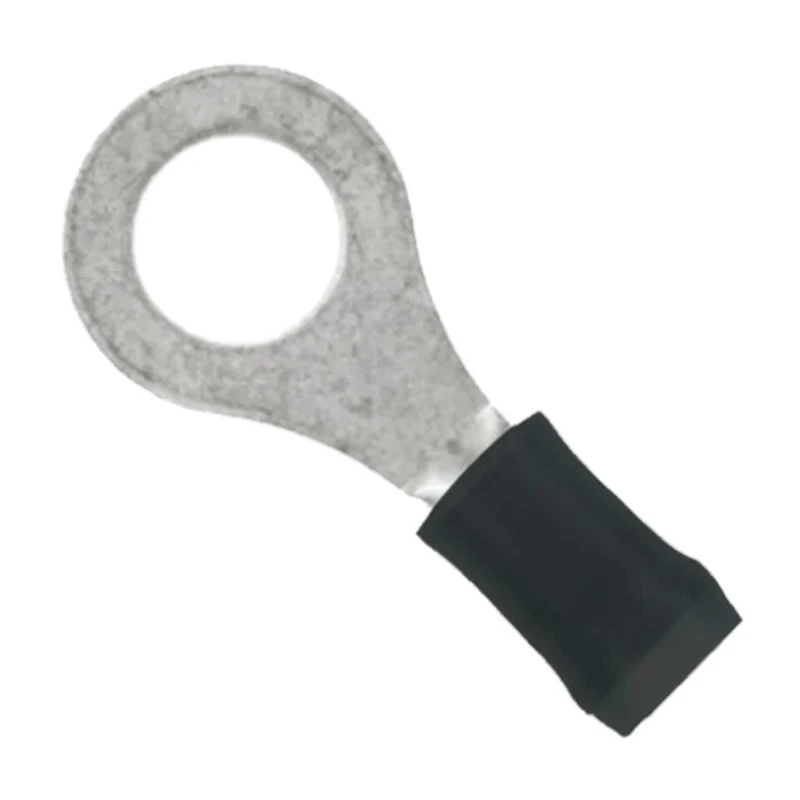

TE Connectivity PIDG Insulated Ring Terminal, M2.5 Stud Size, 24 AWG 22 AWG Wire Size, Black 151438
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Black |
| THICKNESS | 0.79mm |
| Model | 151438 |
| Insulation | Insulated |
| Overall Length | 19.98mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.26mm² |
| Maximum Wire Size mm² | 0.4mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 22AWG |
| Outer Ring Diameter | 7.14mm |
| Inner Ring Diameter | 3.02mm |
| Stud Size | M2.5 |
Key Features
- Constructed from high conductivity copper with tin plating to ensure superior electrical contact.
- Insulated with black nylon for wire protection and easy size identification.
- Features a copper sleeve improving wire insulation support and preventing fraying.
- Serrations inside the barrel offer maximum contact and tensile strength after crimping.
- Funnelled wire entry enables quick and secure wire insertion during assembly.
- Suitable for a wide range of industrial applications including control instruments, power supplies, and aerospace.
- Meets RoHS standards for environmental compliance.
- Maximum operating temperature rating of 105°C ensures reliable performance in harsh environments.
Product Description
TE Connectivity 151438 PIDG Insulated Ring Terminal is engineered for reliable electrical connections with M2.5 stud size compatibility and wire sizes ranging from 24 AWG to 22 AWG. The high conductivity copper contact with tin plating ensures efficient signal transmission and corrosion resistance.
The terminal features a robust black nylon insulation providing secure wire protection and excellent durability. Inside the barrel, serrations maximize contact and tensile strength post-crimping, while the copper sleeve enhances insulation support and prevents wire fraying.
The funnelled entry design facilitates fast wire insertion, improving production efficiency during high-volume manufacturing. These PIDG terminals meet stringent RoHS compliance and are suitable for demanding industrial environments such as instrumentation, control panels, lighting systems, power supplies, transportation equipment, motors, aerospace, and appliance manufacturing.
With an overall length of 19.98mm, an outer ring diameter of 7.14mm, and a thickness of 0.79mm, this ring terminal ensures precise fitting and mechanical stability. It supports a maximum operating temperature of 105°C, making it reliable in elevated temperature conditions.
Constructed from high conductivity copper with tin plating. Black nylon insulation enhances durability and wire identification. Copper sleeve supports insulation and prevents fraying. Serrated wire barrel maximizes contact and tensile strength.
Funnelled wire entry for quick insertion during manufacturing. Meets RoHS environmental compliance standards. Rated for maximum operating temperature of 105°C. Compatible with wire sizes from 24 AWG to 22 AWG and M2.5 stud size.
This product is ideal for various industrial and commercial electrical wiring applications, ensuring uniform and reliable crimps for enhanced electrical performance. Explore more quality Ring Terminals and electronic components on EnvMart for your professional needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal is compatible with wire sizes ranging from 24 AWG to 22 AWG.
The stud size for this model is M2.5.
It has a maximum operating temperature rating of 105°C.
The terminal is constructed from high conductivity copper with tin plating and features black nylon insulation.
The overall length is 19.98mm, with an outer ring diameter of 7.14mm and a thickness of 0.79mm.
Yes, it meets RoHS standards for environmental compliance.
It features serrations inside the barrel for maximum contact and tensile strength after crimping, and a funnelled wire entry for quick and secure wire insertion.
It is suitable for a wide range of industrial applications including control instruments, power supplies, and aerospace.
The insulation material is nylon, which provides wire protection and easy size identification.
The inner ring diameter is 3.02mm.
The funnelled wire entry design allows for quick and secure wire insertion during assembly, improving production efficiency.
The thickness of this terminal is 0.79mm.
