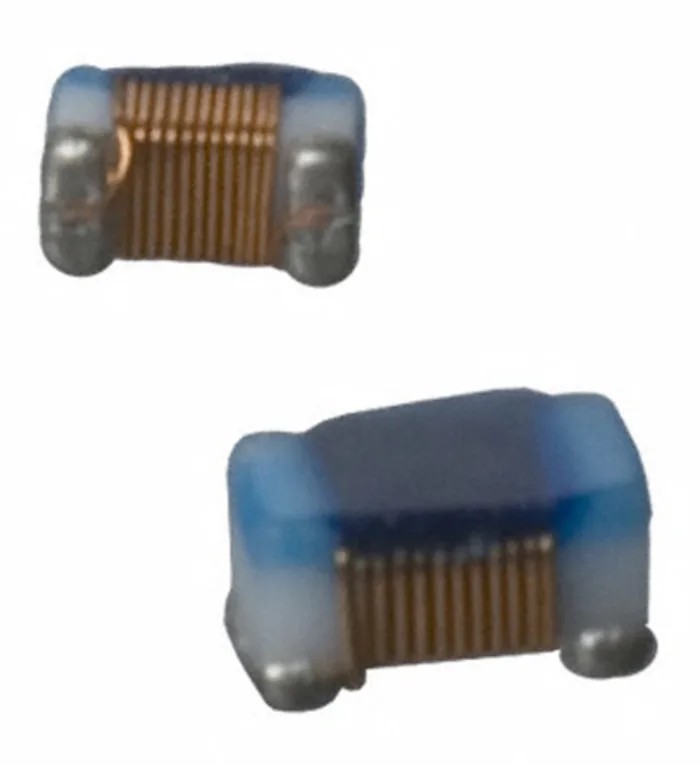

Murata Wirewound Surface Mount Inductor with Ferrite Core 0.16 μH ±5% 1A Idc 1608 Package LQW18CNR16J00D

Murata LQW18CNR16J00D is a wirewound surface mount inductor constructed with a ferrite core, delivering an inductance value of 0.16 μH with a tolerance of ±5%. Designed for compact electronic solutions, this inductor supports a continuous DC current of 1 A and has a maximum DC resistance of 100 mΩ, providing efficient current handling with minimal losses.

The 1608 package size with dimensions of 1.6 mm length, 0.8 mm width, and 0.8 mm height makes it ideal for dense PCB layouts. It operates reliably in temperature ranges between -40°C and 85°C and uses solder termination for secure PCB mounting.

Murata's LQW series inductors are noted for their high-quality RF performance, including high Q values that improve filter pass-band characteristics. These inductors are commonly used in antenna matching circuits to maintain antenna sensitivity for transmission and reception. Additionally, the low DC resistance allows use in choke circuits where high current flow is present.

This inductor features a wirewound construction with a ferrite core for efficient magnetic performance. It supports a maximum DC current rating of 1 ampere. The inductance is precisely controlled at 0.16 microhenries with ±5% tolerance.

Designed with a 1608 surface mount package measuring 1.6 mm length and 0.8 mm height and depth. Maximum DC resistance is 100 milliohms ensuring low power losses during operation. Operational temperature range is from -40°C up to 85°C for reliable performance.

Termination style is solder, compatible with standard PCB assembly processes. The product is RoHS compliant, ensuring environmental safety standards. Application includes antenna matching and choke circuits for RF and high current conditions.

Manufactured in Japan, ensuring high-quality production standards.

Ideal for industrial, telecommunications, automotive electronics, and consumer devices, this high performance inductive component helps in power conditioning, noise filtering, and signal integrity enhancement. Murata's commitment to quality ensures durability and consistency for manufacturing processes.
