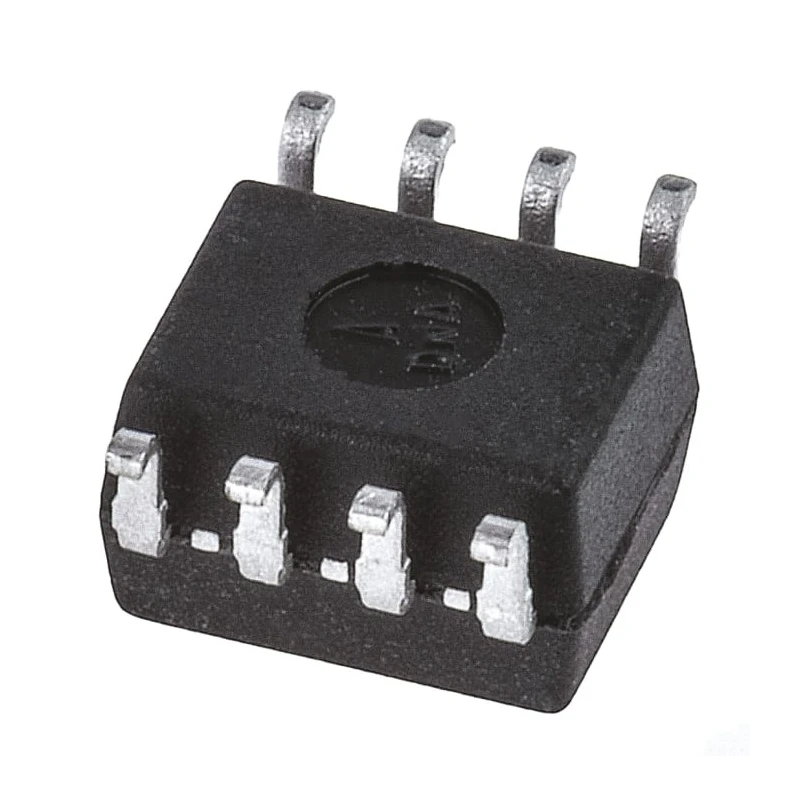

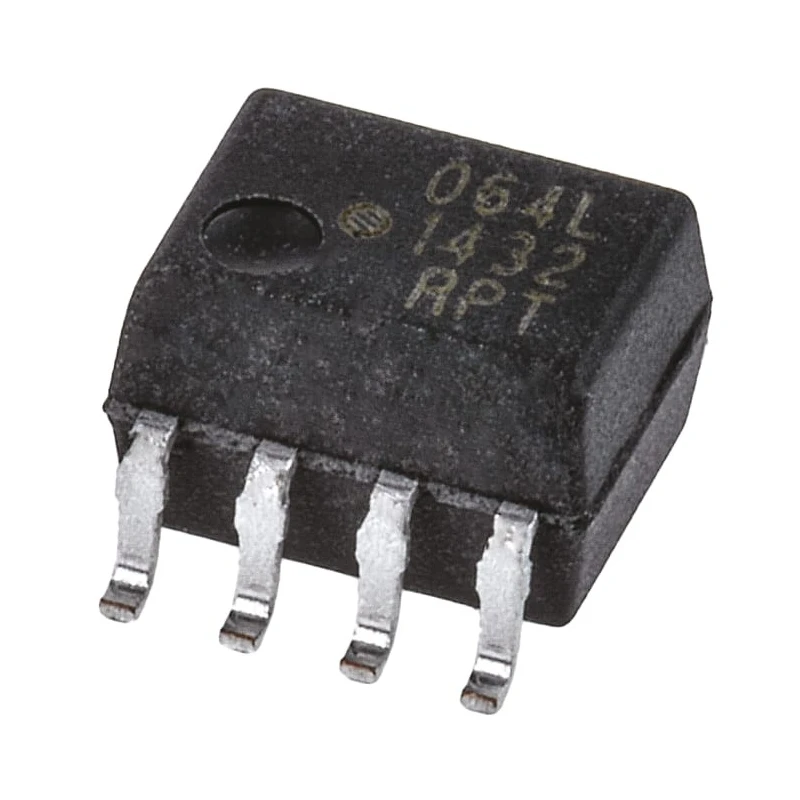

Broadcom DC Input 2-Channel Ultra Low Power Optocoupler, Surface Mount SOIC 8-Pin ACPL-064L-000E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | ACPL-064L-000E |
| Packaging | Tube |
| Mount Type | Surface |
| Series | ACPL |
| Maximum Operating Temperature | 105°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 8mA |
| Number Of Channels | 2 |
| Standards/Approvals | UL, CSA, IEC |
| Maximum Forward Voltage | 1.7V |
| Number of Pins | 8 |
| Input Current Type | DC |
| Typical Rise Time | 0.012μs |
| Isolation Voltage | 3750V ac |
| Low Input Current | 1.6mA min |
| Ultra low IDD current | 1.3mA/channel max |
| Guaranteed AC and DC performance over wide temperature | -40°C to +105°C |
Key Features
- Features dual channel isolation in a compact 8-pin SOIC surface mount package.
- Operates with low input current minimum of 1.6 mA and maximum IDD current of 1.3 mA per channel.
- Guarantees high isolation voltage of 3750 V AC for circuit safety and noise immunity.
- Supports wide operating temperature range from -40°C to +105°C for harsh environments.
- Slew-rate controlled CMOS outputs ensure stable signal transitions with a typical rise/fall time of 0.012 µs.
- Compatible with TTL and CMOS logic levels, suitable for microprocessor interfacing.
- Built-in Faraday shield provides common mode transient immunity of 20 kV/µs.
- Packaged in tubes, ideal for automated manufacturing and insertion.
Product Description
Broadcom ACPL-064L-000E is a high-performance, ultra low power 2-channel optocoupler designed with DC input capability and housed in an 8-pin SOIC surface mount package. It integrates a GaAlAs LED and a high-gain photodetector for efficient, high-speed digital signal isolation with minimal power consumption.
The device operates over a broad temperature range from -40°C to +105°C, ensuring dependable performance in demanding industrial, automotive, and instrumentation applications. The low input current requirement of just 1.6 mA minimum and a maximum IDD current of 1.3 mA per channel allows direct interface from most microprocessors.
Featuring a guaranteed isolation voltage of 3750 V AC, it effectively protects sensitive electronics from high voltages and noise disturbances. The inclusion of a Faraday shield enhances common mode transient immunity to 20 kV/µs, critical for robust signal integrity in industrial control systems.
The optocoupler outputs are CMOS compatible with slew-rate controlled transitions and a typical rise and fall time of 0.012 microseconds, supporting high-speed data rates of at least 10 MBd. This makes it suitable for applications in power supplies, motor controls, and digital communication interfaces.
Dual channel isolation for multi-signal interfacing in compact footprint. Low power consumption tailored for battery-powered and low-energy systems. Wide operational temperature range for versatile environments. High isolation for safety and noise immunity compliance.
Compatibility with TTL/CMOS logic levels for microcontroller integration. Industry-standard certifications including UL, CSA, and IEC. Tube packaging suitable for automated assembly lines.
This Broadcom optocoupler is ideal for industrial automation, HVAC control, power electronics, and instrumentation applications requiring precise, reliable signal isolation. It combines low power, high speed, and robust isolation in a compact surface mount package to meet demanding modern electronics needs.
Explore our extensive inventory of electronic components and Optocouplers at EnvMart for your industrial and laboratory requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The optocoupler guarantees an isolation voltage of 3750 V AC, ensuring protection for sensitive electronics against high voltages and noise disturbances.
This model operates over a wide temperature range from -40°C to +105°C, making it suitable for demanding industrial and automotive applications.
It has a low input current requirement of 1.6 mA minimum and a maximum IDD current of 1.3 mA per channel, allowing for direct interfacing with most microprocessors.
The outputs of this optocoupler are CMOS compatible, with slew-rate controlled transitions and a typical rise and fall time of 0.012 microseconds, supporting high-speed data rates of at least 10 MBd.
This optocoupler is packaged in tubes, which is ideal for automated manufacturing and insertion processes.
It features dual channel isolation, allowing for multi-signal interfacing in a compact footprint.
The optocoupler meets industry standards including UL, CSA, and IEC, ensuring compliance for various applications.
The maximum forward voltage is 1.7 V, which is critical for ensuring proper operation within specified limits.
This optocoupler is ideal for applications in industrial automation, HVAC control, power electronics, and instrumentation requiring precise signal isolation.
It is designed for surface mounting, which is common in modern electronic circuit board designs.
The typical rise and fall time is 0.012 microseconds, ensuring stable signal transitions for high-speed applications.
The country of origin for this optocoupler is India, reflecting its manufacturing location.
