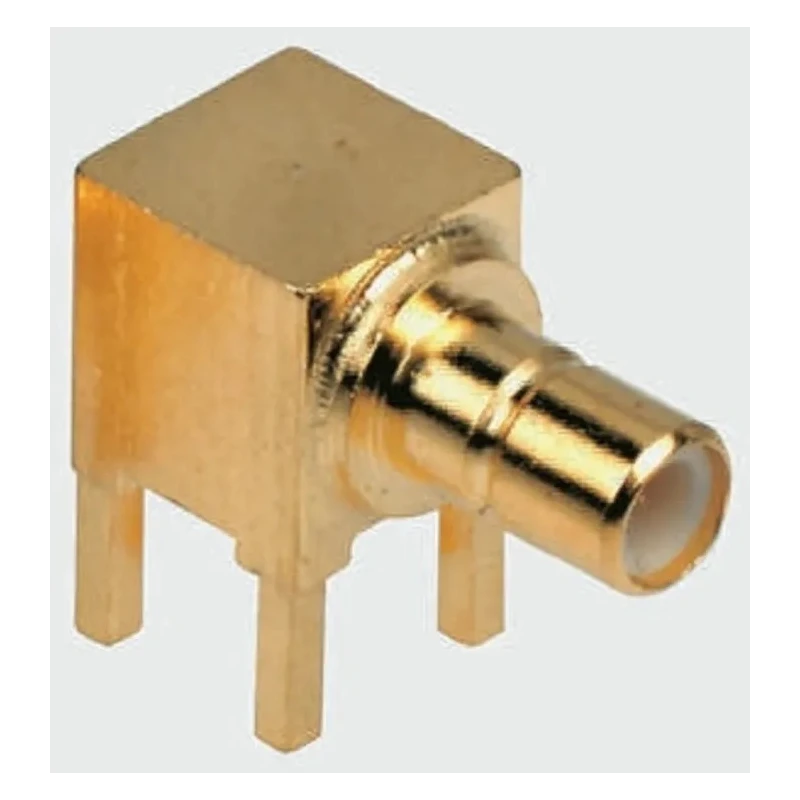

TE Connectivity SMB Series Coaxial Connector Through Hole Female Right Angle Body Solder 50 Ω 4 GHz 415340-1
Specifications
| Country of Origin | India |
|---|---|
| Size | Standard |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Model | 415340-1 |
| Mount Type | Through Hole |
| Operating Frequency | 4GHz |
| Contact Material | Brass |
| Series | SMB |
| Termination Type | Solder |
| Maximum Operating Temperature | 165°C |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | SMB |
| Body Plating | Gold |
Key Features
- Constructed with brass material for durable contact performance.
- Gold plated body and contact ensuring excellent conductivity and corrosion resistance.
- Operates reliably within temperature range of -65°C to 165°C.
- Designed with a normal polarity female contact gender and right angle orientation.
- Standard size connector compatible with PCB mounting via through hole technology.
- Termination type is solder, enabling secure electrical connections.
- Recommended for RF and coaxial high-frequency connectivity applications.
- Part of the SMB series featuring a reliable connect/disconnect mechanism.
Product Description
TE Connectivity 415340-1 SMB Series coaxial connector is a precision-engineered through hole female SMB connector designed for applications requiring 50 Ω impedance and operating frequencies up to 4 GHz. It features a right angle body with gold plating on both the body and contact surfaces, which ensures high reliability and effective corrosion resistance in challenging environments.
Manufactured with durable brass contact material, this connector supports a broad operating temperature range from -65°C to 165°C, making it suitable for diverse industrial, electronic, telecommunications, and instrumentation use cases. The solder termination type facilitates strong mechanical and electrical bonds with PCB substrates through a through-hole mount mechanism.
Its normal polarity female contact design and standard sizing align with typical SMB series specifications. The connector's right angle orientation is ideal for applications where PCB space optimization or directional signal routing is needed.
This SMB coaxial connector is widely used in RF coaxial connectivity for communication equipment, test instrumentation, and industrial electronics, supporting quick and reliable mating and unmating cycles. It does not carry specific approvals or certifications but is built with stringent quality standards by TE Connectivity.
Durable brass material contact for robust performance. Gold plating on both body and contact for enhanced conductivity and corrosion resistance. Through-hole mount type allows secure PCB attachment. Right angle orientation for space-efficient PCB layouts.
Operates at frequencies up to 4 GHz with 50 Ω impedance. Solder termination for reliable electrical connectivity. Wide operating temperature range from -65°C to 165°C. Normal polarity female contact suitable for standard SMB applications.
Choose this connector for high-quality, reliable SMB coaxial connection solutions in industrial electronics, communications, laboratory equipment, and manufacturing environments. Explore more TE Connectivity products and Coaxial Connectors on EnvMart for your technical and procurement needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector operates at a maximum frequency of 4 GHz, making it suitable for high-frequency applications.
It features a solder termination type, which ensures reliable electrical connectivity with PCB substrates.
The impedance rating of this SMB connector is 50 Ω, which is standard for RF applications.
This model operates reliably within a temperature range of -65°C to 165°C, suitable for various industrial environments.
The connector has a right angle orientation, which is beneficial for optimizing PCB space and directional signal routing.
The contact material is brass, which provides robust performance in connectivity applications.
This connector features a female contact gender, aligning with standard SMB specifications.
It is designed for through hole mounting, allowing secure attachment to PCB substrates.
Both the body and contact surfaces are gold plated, enhancing conductivity and providing corrosion resistance.
This connector is part of the SMB series, known for its reliable connect/disconnect mechanism.
The country of origin for this connector is India.
It is recommended for RF and coaxial high-frequency connectivity applications, including communication equipment and test instrumentation.
