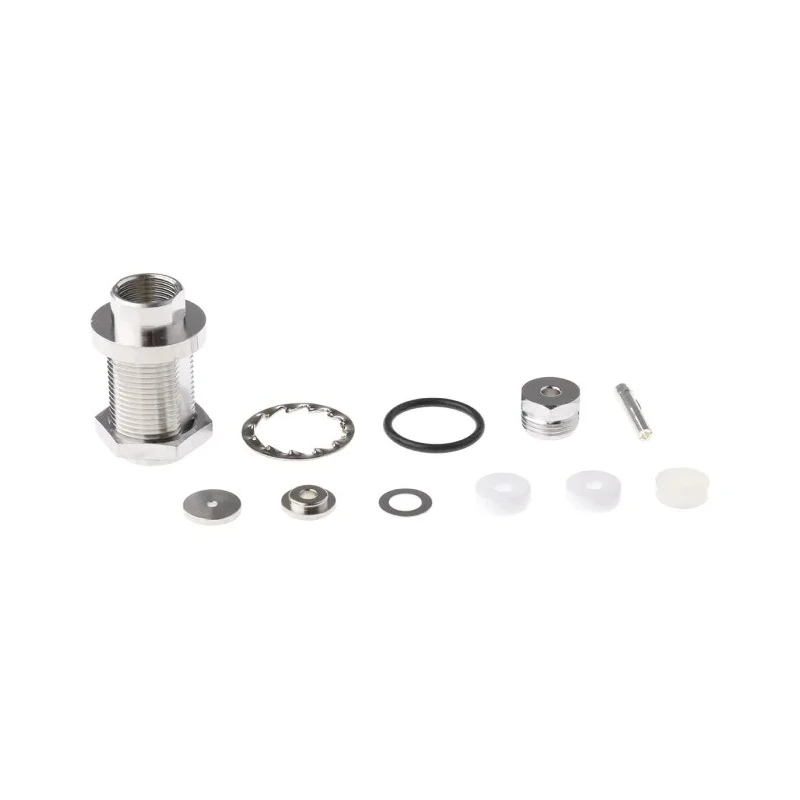

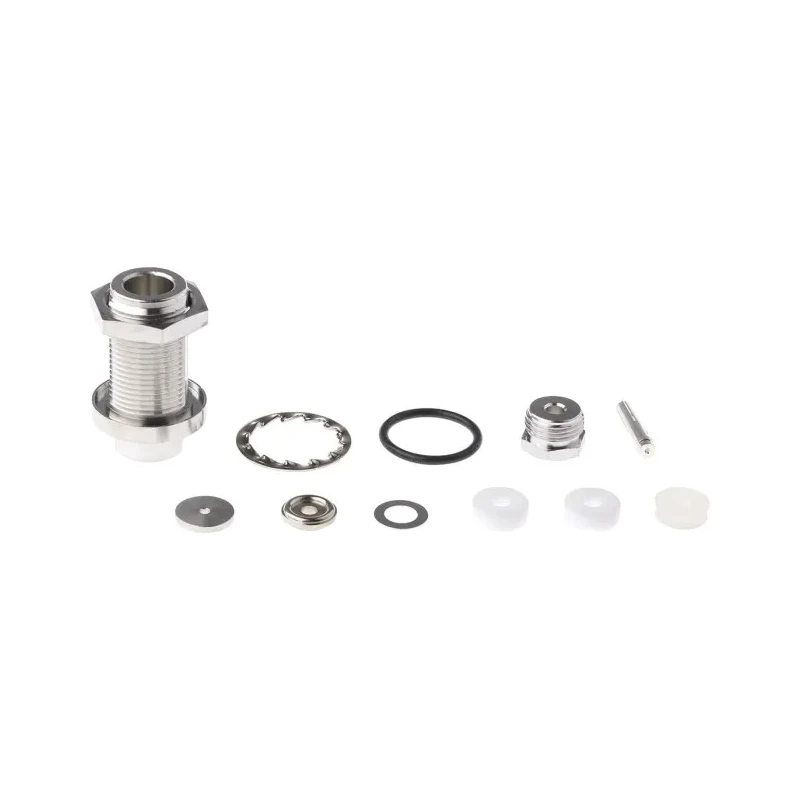

Telegartner N Series Coaxial Connector Panel Mount Female N Connector 50 Ω Straight Body Solder J01021H1003
Specifications
| Country of Origin | Germany |
|---|---|
| Size | Standard |
| Brand | Telegartner |
| Orientation | Straight |
| Model | J01021H1003 |
| Mount Type | Panel Mount |
| Operating Frequency | 11GHz |
| Contact Material | Beryllium Copper Alloy |
| Series | N |
| Termination Type | Solder |
| Maximum Operating Temperature | 165°C |
| Cable Type | RG-174U, RG188A/U, RG316/U |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Silver |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | N Connector |
| Body Plating | Copper Nickel Alloy |
Key Features
- This coaxial connector is designed for panel mount applications ensuring secure installation.
- Operates effectively at frequencies up to 11 GHz.
- The connector features a female gender with normal polarity for broad compatibility.
- Made with beryllium copper alloy contacts plated with silver to ensure excellent conductivity and durability.
- Body plating consists of copper nickel alloy providing corrosion resistance.
- Suitable for cable types RG-174U, RG188A/U, and RG316/U.
- Designed for extreme operating temperatures ranging from -65°C to 165°C.
- The connector includes a bulkhead for robust panel mounting.
Product Description
Telegartner J01021H1003 is a high-quality N Series Coaxial Connector designed for panel mount applications in electronic and electrical systems. This female N connector provides a stable 50 Ω impedance and features a straight body with soldered termination, delivering reliable signal integrity for RF applications.
The connector supports operating frequencies up to 11 GHz, making it suitable for advanced communication and testing equipment. Its contact components are made from beryllium copper alloy and plated with silver to ensure excellent electrical conductivity and wear resistance. The body is plated with copper nickel alloy to protect against corrosion and environmental factors.
Specifically designed to handle a wide temperature range from -65°C to 165°C, this connector maintains performance under extreme industrial conditions. It supports cable types RG-174U, RG188A/U, and RG316/U, which are commonly used in RF transmission setups.
Being a bulkhead panel mount connector, it ensures secure and durable installation in equipment panels, racks, and enclosures used in industrial electronics, telecommunications, and measurement devices. The connector’s normal polarity and female gender provide versatile connectivity.
This connector contributes to excellent intermodulation performance in RF applications. It is ideal for industrial, laboratory, and telecommunications use cases requiring precision and durability. Manufactured in Germany, it meets high quality and manufacturing standards ensuring reliability.
Telegartner’s N Series connectors are known for consistency and robustness in demanding environments. Explore more in the Electronics Components section at EnvMart for complementary connectors and accessories to complete your setup.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating frequency of this coaxial connector is 11 GHz, making it suitable for advanced communication and testing applications.
This connector is compatible with cable types RG-174U, RG188A/U, and RG316/U, which are commonly used in RF transmission setups.
It is designed to operate in extreme temperatures ranging from -65°C to 165°C, ensuring performance in harsh industrial conditions.
The contacts are made from beryllium copper alloy and are plated with silver to ensure excellent electrical conductivity and wear resistance.
This model features a panel mount design, which ensures secure installation in equipment panels, racks, and enclosures.
The connector has a stable impedance rating of 50 Ω, which is essential for maintaining signal integrity in RF applications.
This connector has a female gender with normal polarity, providing broad compatibility for various applications.
It uses a solder termination type, which allows for a reliable and secure connection to the cable.
The body of the connector is plated with copper nickel alloy, which provides corrosion resistance and protects against environmental factors.
This connector is manufactured in Germany, ensuring adherence to high quality and manufacturing standards.
This connector belongs to the N Series, which is known for its consistency and robustness in demanding environments.
It is suitable for industrial, laboratory, and telecommunications applications requiring reliable RF connectivity and performance.
