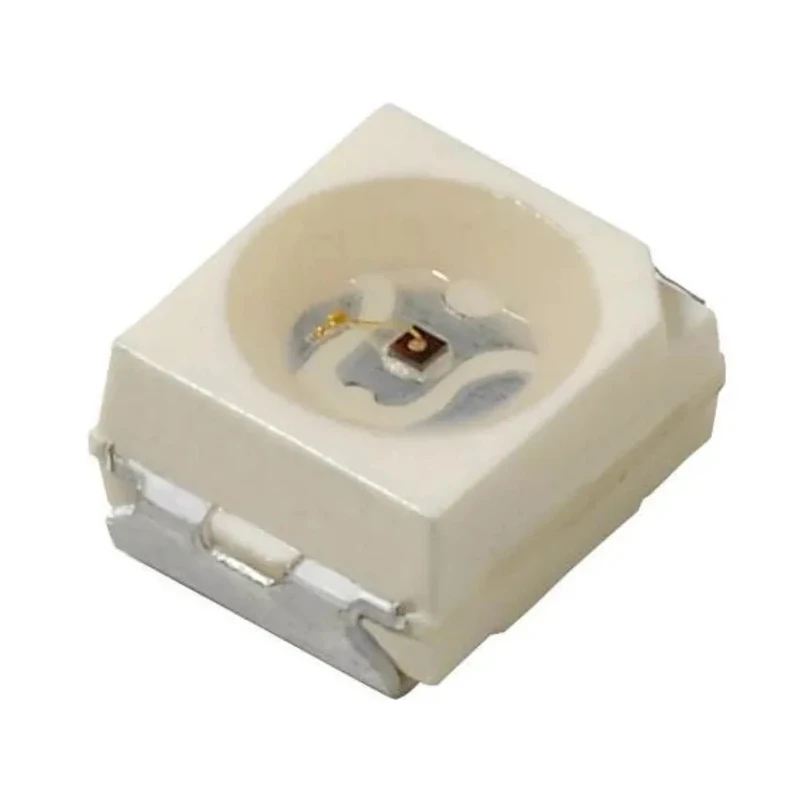

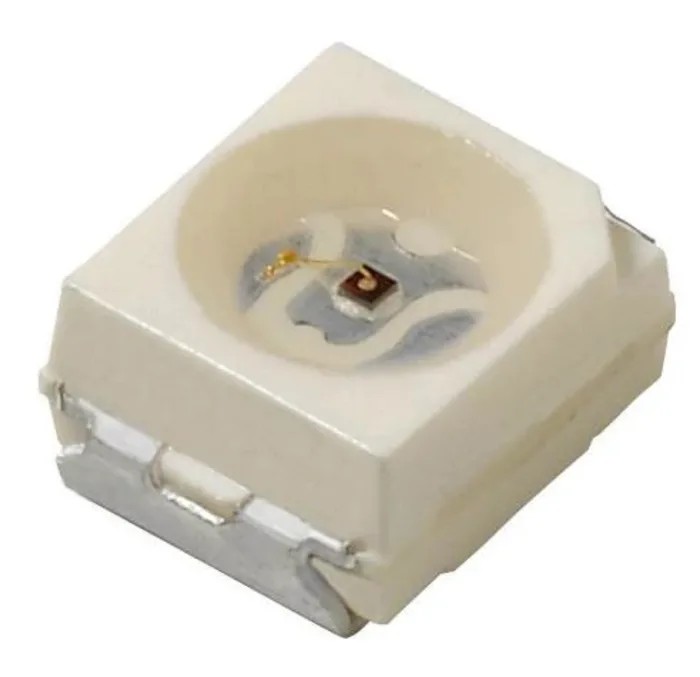

Vishay VSML3710-GS18 VEMT3700 940 nm High Power Infrared LED PLCC 2 Surface Mount 5V 40mW Radiant Flux
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Dimensions | 3.5 x 2.8 x 1.75 mm |
| Model | VSML3710-GS18 |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | VEMT3700 |
| Beam angle | 120° |
| Number Of Leds | 1 |
| Package Type | PLCC 2 |
| Standards/Approvals | JS709A, J-STD-020, Halogen Free, RoHS, J-STD-051, JEDEC |
| Number of Pins | 2 |
| Lens Shape | Round |
| Automotive Standard | AEC-Q101 |
| Maximum Supply Voltage | 5V |
| Peak Wavelength | 940nm |
| Radiant Flux | 40mW |
| LED Material | GaAlAs |
| Angle of half intensity | 60° |
| Radiant Intensity | 9.5mW/sr |
| ams OSRAM Chip LED 860 nm IR LED 0402 Surface packageBrand | ams OSRAM |
Key Features
- Features a peak wavelength of 940 nm for effective infrared emission.
- PLCC 2 package with compact dimensions of 3.5 x 2.8 x 1.75 mm.
- Radiant flux output of 40 mW and radiant intensity of 9.5 mW/sr.
- Designed for surface mount applications with 2 pins and round lens shape.
- Beam angle of 120° and angle of half intensity at 60°.
- Uses GaAlAs LED material providing high reliability and power output.
- Maximum supply voltage rating of 5 V with low forward voltage characteristics.
- Compliant with RoHS and automotive standard AEC-Q101.
Product Description
Vishay VSML3710-GS18 VEMT3700 is a high power infrared (IR) emitting diode featuring a peak wavelength of 940 nm. Packaged in a compact PLCC 2 surface mount package measuring 3.5 x 2.8 x 1.75 mm, this LED delivers a radiant flux of 40 mW and radiant intensity of 9.5 mW/sr. It uses GaAlAs LED material with double hetero technology enabling high radiant power output and reliable performance.
This infrared LED is designed for various industrial and commercial applications including photointerrupters, reflective sensors, household appliances, and tactile keyboards. Its surface mount configuration with 2 pins and a round lens shape allows easy integration in space-limited designs. The device features a wide beam angle of 120° with an angle of half intensity of 60°, and has a maximum supply voltage rating of 5 V ensuring compatibility with common circuit designs.
VSML3710-GS18 complies with key standards including JS709A, J-STD-020, Halogen Free, RoHS, J-STD-051, JEDEC, and the automotive AEC-Q101 standard, making it suitable for automotive and general industrial electronics markets.
Peak wavelength: 940 nm for effective IR emission. PLCC 2 surface mount package with compact size improves space efficiency. High radiant flux output of 40 mW offers strong IR signal generation. Radiant intensity of 9.5 mW/sr ensures reliable sensing performance.
Round lens shape and 2 pins facilitate easy PCB mounting. Double hetero GaAlAs LED material ensures durability and efficiency. Maximum supply voltage of 5 V supports a variety of circuits. Wide beam angle and half intensity angle optimize IR signal coverage.
Compliant with RoHS and automotive standards for broad market use.
This IR LED is ideal for industrial, laboratory, HVAC, manufacturing, commercial, and automotive applications requiring high power infrared emission in a compact surface mount package.
Explore more Vishay electronic components and IR LEDs at EnvMart for your advanced sensing and emitting needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak wavelength of the Vishay VSML3710-GS18 is 940 nm, which is effective for infrared emission.
This model has compact dimensions of 3.5 x 2.8 x 1.75 mm, making it suitable for space-limited designs.
The maximum supply voltage rating for the VSML3710-GS18 is 5 V, ensuring compatibility with common circuit designs.
This infrared LED features a wide beam angle of 120°, with an angle of half intensity at 60°.
It is packaged in a Tape & Reel format, facilitating easy handling and placement in manufacturing processes.
The lens shape of this model is round, which aids in optimizing the emission pattern.
This infrared LED has 2 pins, designed for surface mount applications.
It complies with several standards including JS709A, J-STD-020, Halogen Free, RoHS, J-STD-051, JEDEC, and the automotive AEC-Q101 standard.
This model uses GaAlAs LED material, which contributes to its high reliability and power output.
The radiant intensity of the VSML3710-GS18 is 9.5 mW/sr, ensuring reliable sensing performance.
