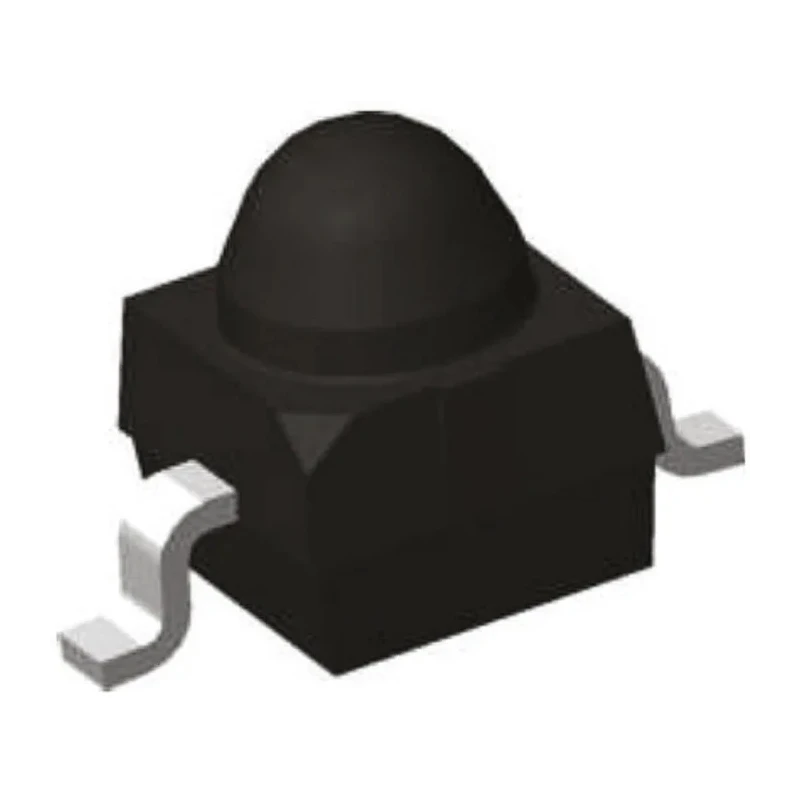

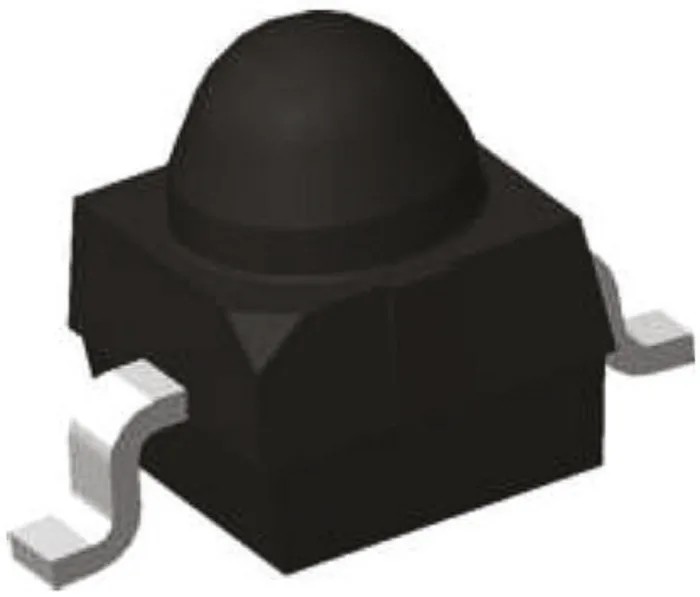

Vishay 940 nm Infrared LED Subminiature Surface Mount Package VSMB2020X01
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Dimensions | 2.3 x 2.3 x 2.8 mm |
| Model | VSMB2020X01 |
| Packaging | Bulk |
| Mount Type | Surface |
| Beam angle | 24° |
| Number Of Leds | 1 |
| Package Type | Subminiature |
| Standards/Approvals | JEDEC |
| Number of Pins | 2 |
| Lens Shape | Dome |
| Automotive Standard | AEC-Q101 |
| Peak Wavelength | 940nm |
| Radiant Flux | 40mW |
| LED Material | GaAlAs |
| Angle of half intensity | 12° |
| Radiant Intensity | 40mW/sr |
Key Features
- This infrared LED operates at a peak wavelength of 940 nm.
- The subminiature package is surface mount type suitable for SMT assembly.
- It delivers a radiant flux and radiant intensity of 40mW and 40mW/sr respectively.
- The device features a dome-shaped lens and uses GaAlAs LED material.
- Beam angle is designed at 24° with an angle of half intensity at 12°.
- Complies with JEDEC standards and automotive AEC-Q101 certification.
- The LED has 2 pins and is supplied in bulk packaging format.
- Ideal for applications such as IrDA data transmission, miniature light barriers, photointerrupters, optical switches, shaft encoders, and control circuits.
Product Description
Vishay VSMB2020X01 Infrared LED Subminiature Surface Mount Package is a precision engineered 940 nm IR emitting diode developed for critical industrial and electronic applications. It has a compact footprint of 2.3 x 2.3 x 2.8 mm and features a surface mount design enabling efficient PCB assembly.
This LED is constructed using Gallium Aluminium Arsenide (GaAlAs) material, delivering a high radiant flux of 40mW and radiant intensity of 40mW/sr. The dome-shaped lens focuses the infrared beam which has a narrow beam angle of 24° and a half intensity angle of 12°, enabling precise light direction and targeting.
Designed to meet JEDEC standards and automotive AEC-Q101 qualification, this LED guarantees high reliability and suitability for automotive, industrial, and consumer electronic markets. The device incorporates 2 pins and is available in bulk packaging to support volume manufacturing needs.
Common use cases include IrDA compatible data transmission systems, miniature light barriers, photointerrupters, optical switches, shaft encoders, as well as a wide variety of control and drive circuits in industrial and laboratory instruments.
Key features include the reverse gull wing lead form that eases SMT mounting, low forward voltage which increases energy efficiency, and the compact surface package optimized for modern miniaturized electronic designs.
This infrared LED operates at a peak wavelength of 940 nm. The subminiature package is surface mount type suitable for SMT assembly. It delivers a radiant flux and radiant intensity of 40mW and 40mW/sr respectively. The device features a dome-shaped lens and uses GaAlAs LED material.
Beam angle is designed at 24° with an angle of half intensity at 12°. Complies with JEDEC standards and automotive AEC-Q101 certification. The LED has 2 pins and is supplied in bulk packaging format. Ideal for applications such as IrDA data transmission, miniature light barriers, photointerrupters, optical switches, shaft encoders, and control circuits.
Explore the Vishay IR LED range in the Electronics Components category at EnvMart for reliable, high-performance optoelectronic devices suited for demanding industrial and commercial technologies.
Explore more products in our IR LEDs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak wavelength of this infrared LED is 940 nm.
This model has dimensions of 2.3 x 2.3 x 2.8 mm.
It delivers a radiant flux of 40 mW.
The radiant intensity is 40 mW/sr.
The LED is supplied in bulk packaging format.
The beam angle is designed at 24° with an angle of half intensity at 12°.
It features a surface mount design suitable for SMT assembly.
This infrared LED has 2 pins.
It complies with the automotive AEC-Q101 standard.
The LED is constructed using Gallium Aluminium Arsenide (GaAlAs) material.
It is ideal for applications such as IrDA data transmission, miniature light barriers, photointerrupters, optical switches, and control circuits.
It complies with JEDEC standards.
