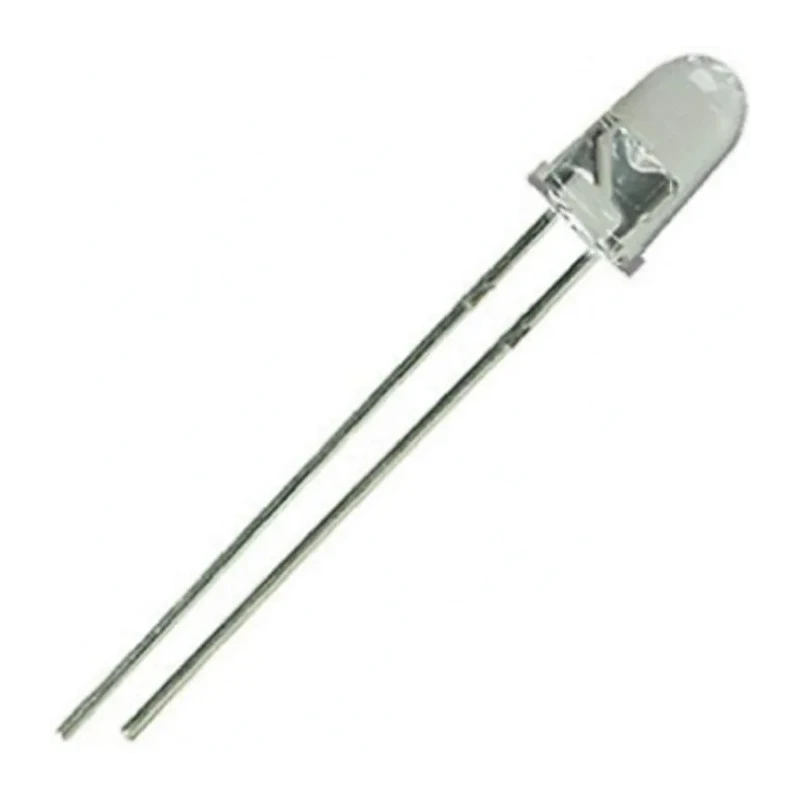

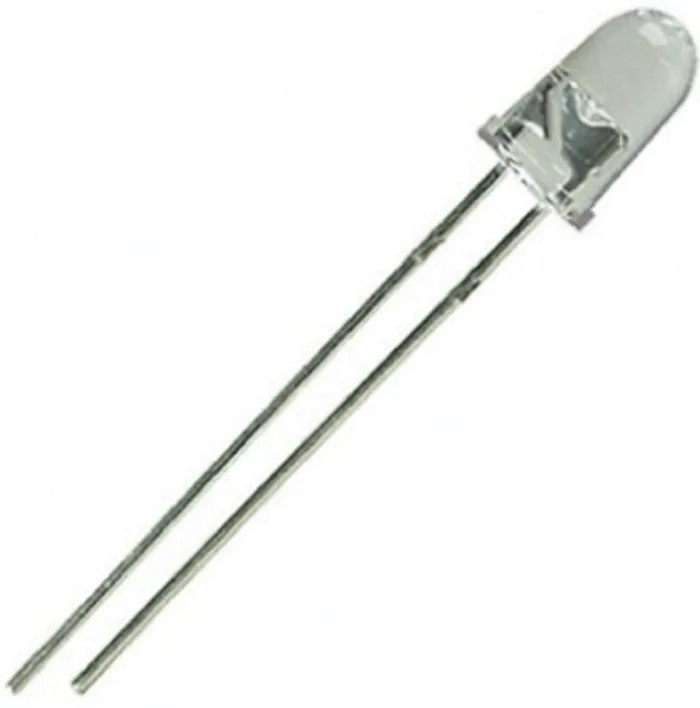

Vishay Infrared LED 830 nm Radiant Flux 50 mW Radiant Intensity 180 mW/sr 5 mm Through Hole TSHG8200
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | TSHG8200 |
| Packaging | Bulk |
| Mount Type | Through Hole |
| Series | TSHG8200 |
| Number Of Leds | 1 |
| Package Type | 5 mm (T-1 3/4) |
| Standards/Approvals | JEDEC JS709A, RoHS 2002/95/EC, WEEE 2002/96/EC |
| Number of Pins | 2 |
| Lens Shape | Round |
| Maximum Supply Voltage | 5V |
| Peak Wavelength | 830nm |
| Radiant Flux | 50mW |
| LED Material | GaAlAs |
| Angle of half intensity | 20° |
| Radiant Intensity | 180mW/sr |
Key Features
- This IR LED offers a radiant flux of 50 mW for efficient infrared emission.
- The radiant intensity is rated at 180 mW per steradian for focused light output.
- It features a round lens shape and mounts via through-hole technology for ease of assembly.
- The device uses GaAlAs LED material ensuring high reliability and performance.
- Angle of half intensity is 20 degrees for directional infrared applications.
- Maximum supply voltage is 5 volts, compatible with standard low voltage circuits.
- Complies with JEDEC JS709A, RoHS 2002/95/EC, and WEEE 2002/96/EC standards.
- Designed for applications such as CMOS cameras, high-speed IR data transmission, and smoke detectors.
Product Description
Vishay TSHG8200 is a high-performance infrared (IR) LED designed for industrial and electronic applications requiring efficient infrared emission. This LED features a 5 mm (T-1 3/4) through-hole package, which provides easy mounting and integration into electronic circuits.
With a peak wavelength of 830 nm, the TSHG8200 delivers a radiant flux of 50 mW and a radiant intensity of 180 mW/sr, making it suitable for focused infrared light applications. The round lens shape and 20° angle of half intensity ensure precise beam directionality, essential for applications like CMOS cameras and IR data transmission systems.
The LED uses Gallium Aluminum Arsenide (GaAlAs) semiconductor material built with double heterostructure technology, ensuring high radiant power, fast switching speed, and long-term reliability. The maximum supply voltage rating is 5 volts, compatible with common low voltage power supplies.
This IR LED complies with international environmental and quality standards including JEDEC JS709A, RoHS 2002/95/EC, and WEEE 2002/96/EC, confirming its suitability for use in modern eco-conscious electronic manufacturing.
Typical applications include use in CMOS camera modules, infrared remote controls, high-speed data communication via IR, and smoke-automatic fire detectors, highlighting its versatility in industrial and consumer electronic markets.
This IR LED offers a radiant flux of 50 mW for efficient infrared emission. The radiant intensity is rated at 180 mW per steradian for focused light output. It features a round lens shape and mounts via through-hole technology for ease of assembly.
The device uses GaAlAs LED material ensuring high reliability and performance. Angle of half intensity is 20 degrees for directional infrared applications. Maximum supply voltage is 5 volts, compatible with standard low voltage circuits.
Complies with JEDEC JS709A, RoHS 2002/95/EC, and WEEE 2002/96/EC standards. Designed for applications such as CMOS cameras, high-speed IR data transmission, and smoke detectors. Explore more infrared LED components at EnvMart for reliable and high quality electronic component sourcing.
Explore more products in our IR LEDs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TSHG8200 IR LED has a radiant flux of 50 mW, providing efficient infrared emission.
The peak wavelength of the TSHG8200 is 830 nm, suitable for various infrared applications.
This model has a radiant intensity rated at 180 mW per steradian, allowing for focused light output.
The angle of half intensity for the TSHG8200 is 20 degrees, which is important for directional infrared applications.
This infrared LED features a through-hole mounting type, facilitating easy assembly into electronic circuits.
The maximum supply voltage for this model is 5 volts, making it compatible with standard low voltage circuits.
This LED complies with JEDEC JS709A, RoHS 2002/95/EC, and WEEE 2002/96/EC standards.
The lens shape of this infrared LED is round, which aids in directing the emitted light effectively.
The TSHG8200 package contains one LED, designed for individual applications.
The TSHG8200 is packaged in bulk, suitable for various electronic manufacturing needs.
