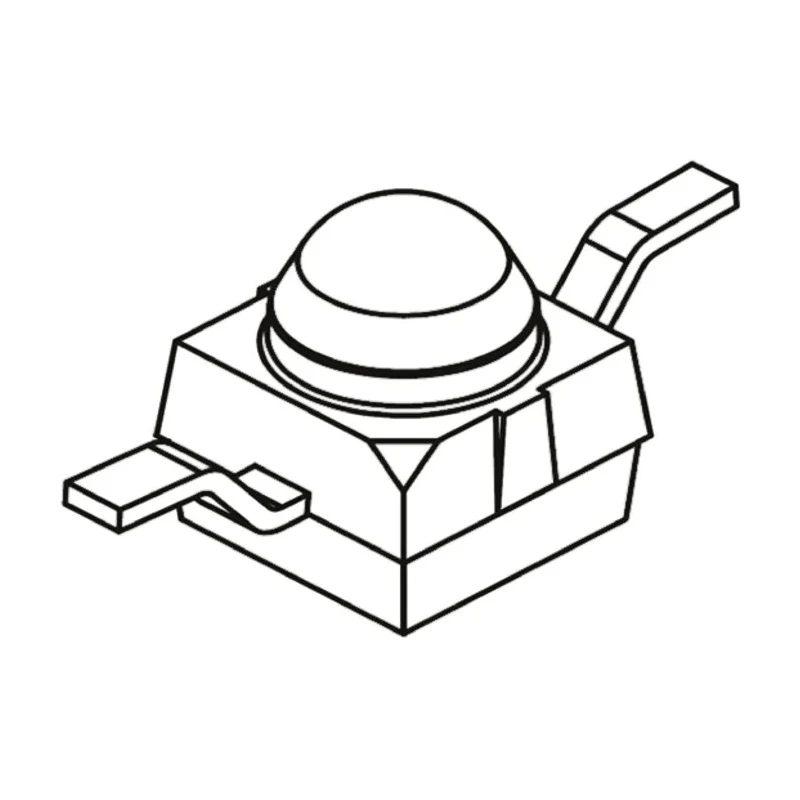

Vishay Infrared LED Subminiature Surface Mount 940 nm Peak Wavelength 40mW Radiant Flux VSMB2000X01

Name: Vishay Infrared LED Subminiature Surface Mount 940 nm Peak Wavelength 40mW Radiant Flux VSMB2000X01
Brand: Vishay
SKU: 218112
Price: 20.22 USD
Availability: InStock



Category IR LEDs Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Dimensions	2.3 x 2.3 x 2.8 mm
Model	VSMB2000X01
Packaging	Bulk
Mount Type	Surface
Series	VSMB
Beam angle	24°
Number Of Leds	1
Package Type	Subminiature
Standards/Approvals	JEDEC
Number of Pins	2
Lens Shape	Dome
Automotive Standard	AEC-Q101
Peak Wavelength	940nm
Radiant Flux	40mW
LED Material	GaAlAs
Angle of half intensity	12°
Radiant Intensity	40mW/sr

Key Features

This IR LED has a surface mount subminiature package with clear dome lens.
Peak wavelength is 940 nanometers, suitable for IR applications.
Radiant flux and intensity are 40 milliwatts and 40 milliwatts per steradian respectively.
Low forward voltage enables efficient power usage.
Beam angle of half intensity is 12 degrees and total beam angle is 24 degrees.
Single LED with 2 pins for easy PCB mounting.
Constructed with GaAlAs LED material for high reliability.
Meets JEDEC and automotive AEC-Q101 industry standards.

Product Description

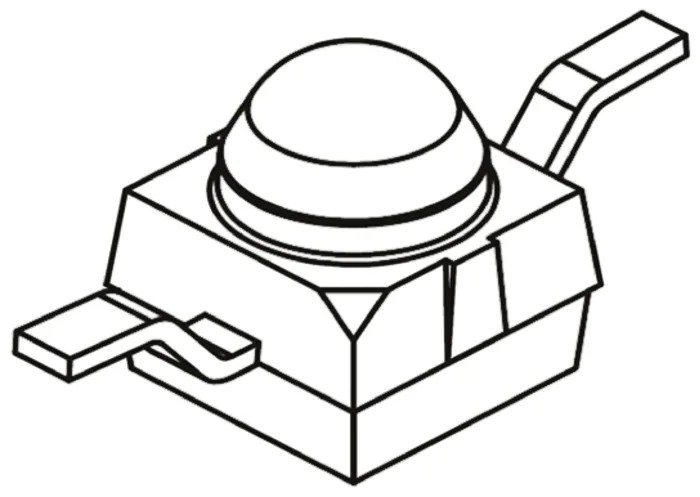

Vishay VSMB2000X01 is an infrared emitting diode in a subminiature surface mount package, featuring a peak wavelength of 940 nanometers and 40 milliwatts radiant flux. It is designed with a clear dome lens and compact dimensions of 2.3 by 2.3 by 2.8 millimeters.

This single IR LED includes two pins and is fabricated with gallium aluminum arsenide (GaAlAs) material to provide high reliability and efficient infrared light emission. With a narrow beam half intensity angle of 12 degrees and total beam angle of 24 degrees, it is suitable for focused IR applications.

The device complies with JEDEC industry standards and automotive AEC-Q101 certification, ensuring suitability for demanding automotive and industrial environments.

Its low forward voltage allows for efficient power consumption. The VSMB2000X01 is ideal for use in infrared data transmission such as IrDA protocols, miniature light barriers, photointerrupters, optical switching, shaft encoders, and various control and drive circuits in industrial and electronic applications.

This IR LED has a surface mount subminiature package with clear dome lens. Peak wavelength is 940 nanometers, suitable for IR applications. Radiant flux and intensity are 40 milliwatts and 40 milliwatts per steradian respectively.

Low forward voltage enables efficient power usage. Beam angle of half intensity is 12 degrees and total beam angle is 24 degrees. Single LED with 2 pins for easy PCB mounting. Constructed with GaAlAs LED material for high reliability.

Meets JEDEC and automotive AEC-Q101 industry standards. Compact dimensions: 2.3 x 2.3 x 2.8 millimeters for space-constrained designs. Ideal for IrDA data transmission, light barriers, photointerrupters, optical switches, and control circuits.

Use Vishay VSMB2000X01 IR LEDs for precise optical sensing and signaling in electronic, industrial, automotive, and telecommunications applications. Explore more Vishay components at EnvMart for advanced optoelectronic solutions.
