Vishay 950 nm Infrared LED Subminiature Surface Mount Dome Lens TSML1020

Free Delivery in India | Lowest Global Shipping Charges

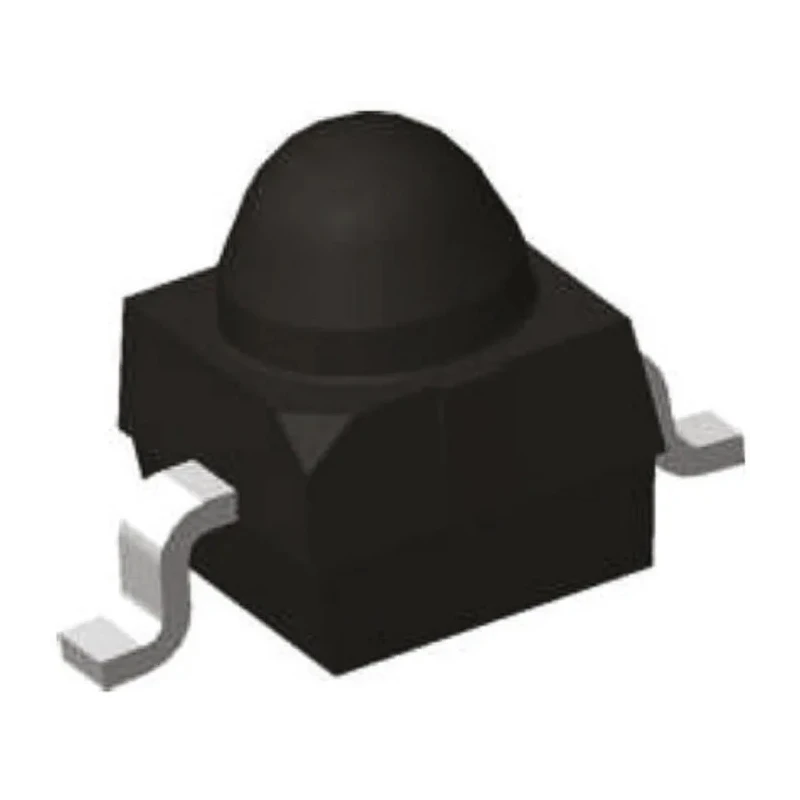

Vishay 950 nm Infrared LED Subminiature Surface Mount Dome Lens TSML1020

Name: Vishay 950 nm Infrared LED Subminiature Surface Mount Dome Lens TSML1020
Brand: Vishay
SKU: 218104
Price: 0.41 USD
Availability: InStock



Category IR LEDs Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Dimensions	2.5 x 2 x 2.7 mm
Model	TSML1020
Packaging	Bulk
Mount Type	Surface
Beam angle	24°
Number Of Leds	1
Package Type	Subminiature
Standards/Approvals	JEDEC
Number of Pins	2
Lens Shape	Dome
Peak Wavelength	950nm
Radiant Flux	35mW
LED Material	GaAlAs
Angle of half intensity	12°
Radiant Intensity	7mW/sr

Key Features

Peak wavelength is 950 nm suitable for infrared applications.
Subminiature surface mount package with dome-shaped lens for efficient emission.
Radiant flux rating of 35 mW providing high power IR output.
Beam angle of 24 degrees ensures focused infrared light.
Low forward voltage contributes to energy-efficient operation.
GaAlAs LED material for reliable infrared emission.
Compact dimensions of 2.5 x 2 x 2.7 mm fit tight PCB layouts.
Designed for surface mounting with two pins and gull-wing leads.

Product Description

Vishay TSML1020 is a high power infrared (IR) emitting diode designed in a subminiature surface mount package with a clear, untinted plastic dome lens. It operates at a peak wavelength of 950 nm and features a radiant flux of 35 mW, delivering efficient IR light output with a beam angle of 24 degrees.

The LED is constructed using GaAlAs material and offers low forward voltage operation, making it energy efficient. Its compact dimensions of 2.5 x 2 x 2.7 mm allow integration into space-constrained electronic assemblies.

Compliant with JEDEC standards, the TSML1020 is manufactured for reliable and consistent performance. Mounting is via a surface mount gull-wing leads package with two pins, facilitating easy PCB assembly.

This infrared LED is ideal for industrial, electronic components, and automation applications such as remote control units, punched tape readers, encoders, and photointerrupters. The device is supplied in bulk packaging, optimizing handling for large production runs.

Key features include a narrow angle of half intensity (12°) and high radiant intensity (7 mW/sr), ensuring effective IR illumination for sensing and signaling purposes. Peak wavelength is 950 nm suitable for infrared applications.

Subminiature surface mount package with dome-shaped lens for efficient emission. Radiant flux rating of 35 mW providing high power IR output. Beam angle of 24 degrees ensures focused infrared light. Low forward voltage contributes to energy-efficient operation.

GaAlAs LED material for reliable infrared emission. Compact dimensions of 2.5 x 2 x 2.7 mm fit tight PCB layouts. Designed for surface mounting with two pins and gull-wing leads. Complies with JEDEC standards ensuring manufacturing quality.

Suitable for remote controls, encoders, and photointerrupters in industrial applications. This product fits in the Electronics Components segment under IR LEDs. For further industrial and electronic application needs, browse related categories and brands at EnvMart.
