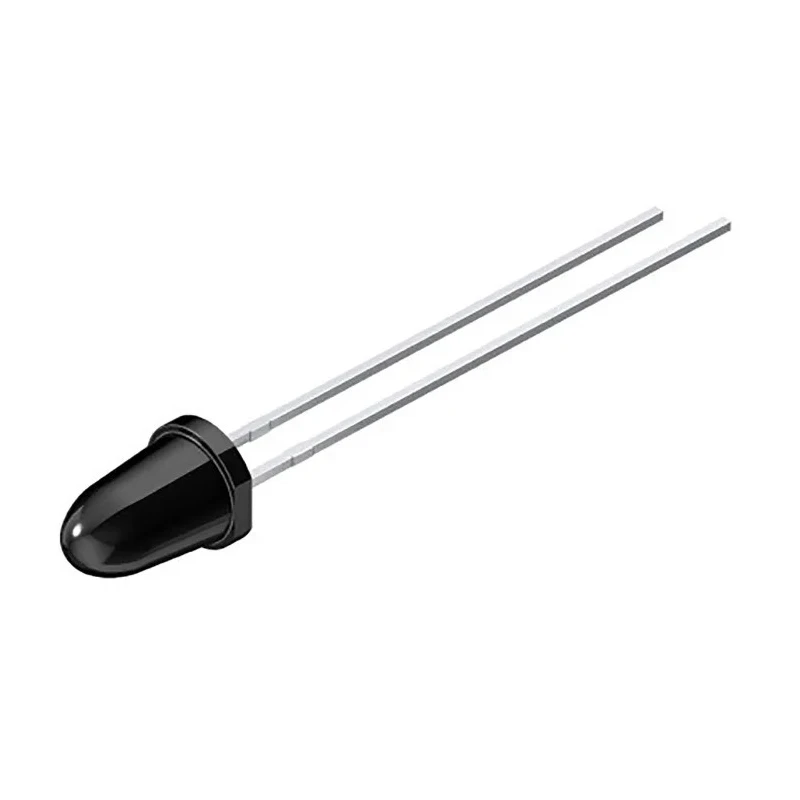

ams OSRAM 950 nm IR LED 5 mm Through Hole Package SFH 4545-DWEW

Free Delivery in India | Lowest Global Shipping Charges

ams OSRAM 950 nm IR LED 5 mm Through Hole Package SFH 4545-DWEW

Name: ams OSRAM 950 nm IR LED 5 mm Through Hole Package SFH 4545-DWEW
Brand: ams OSRAM
SKU: 142522
Price: 0.41 USD
Availability: InStock



Category IR LEDs Brand ams OSRAM Condition New

Specifications

Country of Origin	Malaysia
Brand	ams OSRAM
Model	SFH 4545-DWEW
Mount Type	Through Hole
Number Of Leds	1
Package Type	5 mm (T-1 3/4)
Standards/Approvals	IEC 62471:2006, ANSI/ESDA/JEDEC JS-001 (HBM,Class 2), IEC60810
Number of Pins	2
Lens Shape	Dome
Maximum Supply Voltage	12V
Peak Wavelength	950nm
Radiant Flux	55mW
Angle of half intensity	5°
Radiant Intensity	4200mW/sr
Standards/ApprovalsIEC 62471	2006, ANSI/ESDA/JEDEC JS-001 (HBM,Class 2), IEC60810
IEC 62471	2006, ANSI/ESDA/JEDEC JS-001 (HBM,Class 2), IEC60810

Key Features

Operates at a peak wavelength of 950 nm for precise infrared emission.
Features a standard 5 mm (T-1 3/4) dome-shaped lens for reliable light output.
Through-hole mount type allows easy integration into PCBs.
Radiant flux of 55 mW ensures strong infrared light intensity.
Radiant intensity of 4200 mW/sr provides focused and efficient light projection.
Maximum supply voltage is 12 V, supporting robust operation.
Compact device with a narrow half-intensity angle of 5 degrees.
Contains 1 LED and 2 pins for electrical connection.

Product Description

The ams OSRAM SFH 4545-DWEW is a specialized infrared (IR) LED designed for applications requiring precise and reliable IR light emission. This IR LED emits light at a peak wavelength of 950 nm, making it ideal for use in remote control devices, night vision systems, and optical sensors.

Housed in a standard 5 mm (T-1 3/4) through-hole plastic package with a dome-shaped lens, this LED facilitates easy mounting on printed circuit boards (PCBs) and ensures durable physical protection while maintaining optimal light projection.

With a radiant flux of 55 mW and radiant intensity of 4200 mW/sr, the SFH 4545-DWEW provides strong and focused infrared light output with a half-intensity angle of just 5 degrees, making it suitable for applications requiring narrow beam angles.

Its maximum supply voltage is 12 V, supporting stable operation in various industrial and commercial electronic systems. The LED complies with multiple international safety standards, including IEC 62471:2006 and ANSI/ESDA/JEDEC JS-001 (HBM, Class 2), ensuring user safety and product reliability.

Manufactured in Malaysia, the SFH 4545-DWEW IR LED is a robust and high-quality components choice for electronics engineers and designers working on electronic components, power and connectors, and optoelectronic displays.

Operates at a peak wavelength of 950 nm for infrared applications. Standard 5 mm (T-1 3/4) dome lens for effective light transmission. Through-hole mount for easy PCB integration. High radiant flux of 55 mW ensures strong IR output.

Narrow 5-degree half intensity angle for focused emission. Rated maximum supply voltage of 12 V for stable operation. Compliant with IEC 62471:2006 and related safety standards. Single LED with two pins for electrical connection.

Reliable manufacturing origin: Malaysia.

Applications include industrial, electronic, laboratory, and commercial sectors requiring infrared LEDs. This product is categorized under IR LEDs within the Electronics Components segment, suitable for integration in optoelectronics and lighting solutions.
