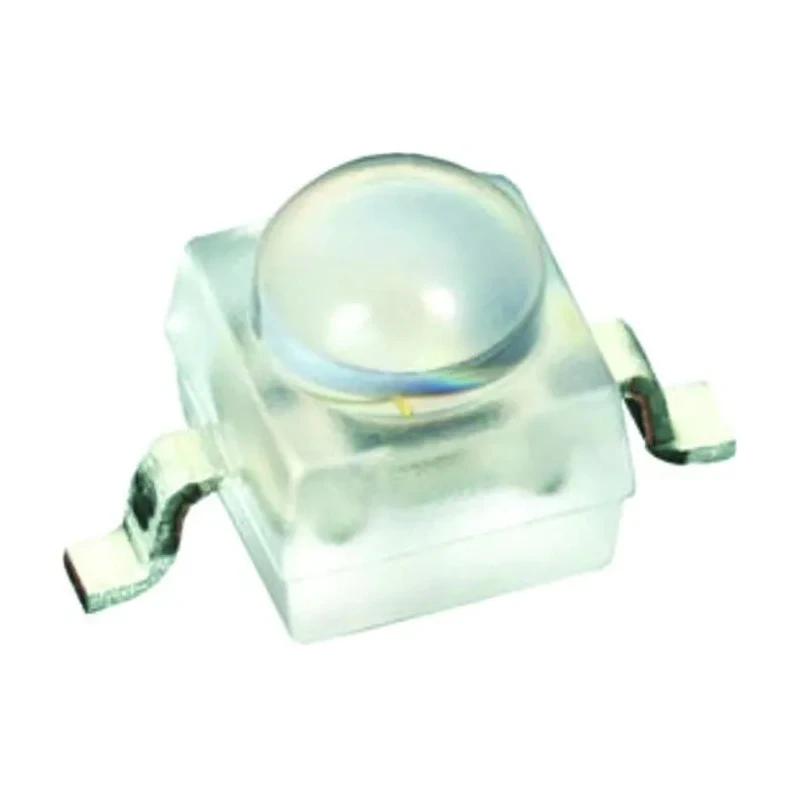

Kingbright 2520 940 nm IR LED Subminiature Surface Mount Package KM2520F3C03

Kingbright KM2520F3C03 is a 2520 series subminiature IR LED engineered for surface mount technology applications. It emits infrared light peaking at 940 nm wavelength, ideal for electronic devices requiring a narrow beam of IR light.

Its compact subminiature package features a 2520 (1008) footprint with gull-wing leads that support straightforward surface mounting onto PCBs. The dome-shaped water clear lens delivers a focused 20° viewing angle, optimizing infrared signal directionality for enhanced device performance.

This infrared LED is manufactured using gallium arsenide (GaAs) material, providing reliable radiant intensity of 20 mW/sr under a maximum supply voltage of 1.6 V. It is compliant with the CIE 127-2007 international standard, ensuring consistent and quality light emission characteristics.

The device is supplied in tape and reel packaging which is compatible with automated pick-and-place assembly equipment, improving manufacturing efficiency for high-volume production runs.

Measuring only 2.5 mm by 2 mm by 2.8 mm, this IR LED module is designed for compact electronic, optoelectronic, and sensor applications where space is limited. It is suitable for industrial, automotive (non-automotive grade), laboratory, and general electronic uses that require precise infrared light emission.

Kingbright's KM2520F3C03 IR LED provides a durable, high-quality infrared light source useful for remote controls, proximity sensors, and other communication devices. Features a subminiature surface mount package with 2520 (1008) standard footprint.

Emits infrared light with a peak wavelength of 940 nm and radiant intensity of 20 mW/sr. Equipped with a dome-shaped water clear lens providing a narrow viewing angle of 20 degrees. Supports a maximum supply voltage of 1.6 V and has two gull-wing leads for surface mounting.

Constructed using gallium arsenide (GaAs) LED material for reliable performance. Complies with CIE 127-2007 standard but is not automotive grade. Compact dimensions of 2.5 x 2 x 2.8 mm suitable for space-constrained designs.

Packaged in tape and reel format facilitating automated assembly processes. Single LED with two pins designed specifically for infrared emission in electronic and optoelectronic devices. Manufactured in China ensuring consistent quality and reliability.
