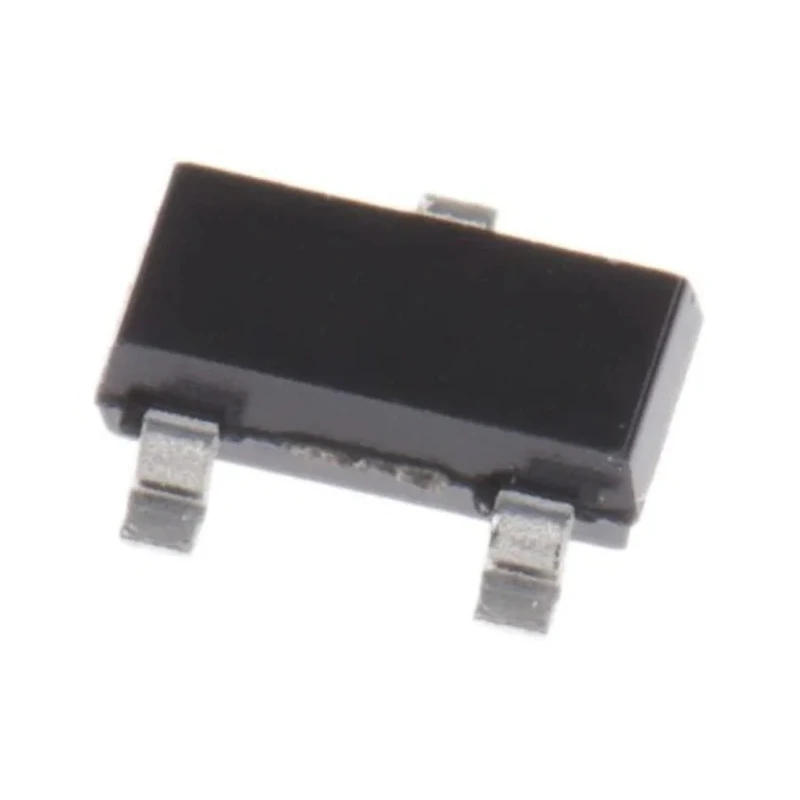

STMicroelectronics Multiplexer Switch IC, 6-Pin SOT-23, Single Pole Double Throw SPDT, 1 Element, C2MOS Technology
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Length | 3mm |
| Model | C2Mos |
| Width | 3mm |
| Mount Type | Surface |
| Output type | Single Ended |
| Series | STG719 |
| Configuration | Emergency Eyewash Dign |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 6 |
| Number of Elements per Chip | 1 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | C2Mos |
| Minimum Supply Voltage | 1.8V |
| Maximum On State Resistance | 4Ω |
Key Features
- Operates over a wide supply voltage range of 1.8V to 5.5V suitable for portable electronics.
- Fast switching speed with typical turn-on time of 7 ns and turn-off time of 4.5 ns.
- Maximum on-state resistance of 4 Ohms at 5 V providing low signal distortion.
- Low power dissipation with maximum supply current of 1 microampere at 25 °C.
- Wide operating temperature range from -55 °C to 125 °C for reliability in harsh conditions.
- Surface mount package type SOT-23 supports compact PCB designs.
- Equipped with electrostatic discharge protection and transient voltage immunity.
- Ideal for audio signal routing, video switching, and mobile communication systems.
Product Description
STMicroelectronics STG719STR is a high-speed multiplexer switch IC manufactured using silicon gate C2MOS technology. The device features a single pole double throw (SPDT) switch configuration with one element per chip housed in a compact 6-pin SOT-23 surface mount package measuring 3 mm by 3 mm.
Designed to operate with minimum supply voltage of 1.8 V and maximum voltage of 5.5 V, this IC is well suited for portable and battery-powered applications due to its low power consumption of 1 microampere maximum at 25 °C. The device delivers a maximum on-state resistance of 4 ohms at 5 V supply, ensuring minimal signal loss and high fidelity when switching audio, video, or communication signals.
This multiplexer switch offers fast switching speeds with typical turn-on and turn-off times of 7 ns and 4.5 ns respectively. Its operating temperature range from -55 °C to 125 °C makes it reliable in a variety of industrial, communication, and consumer electronic environments. All inputs and outputs include built-in protection circuits against electrostatic discharge (ESD) and transient voltages, enhancing device robustness.
This device is ideal for engineers designing applications involving audio signal routing, video switching, mobile communications, and other portable electronics requiring low-power, fast switching multiplexers. The SOT-23 surface-mount package supports compact and space-efficient PCB layouts.
Operates at 1.8 V to 5.5 V single supply voltage. Low maximum on resistance of 4 Ω at 5 V supply voltage. Fast switching with tON = 7 ns and tOFF = 4.5 ns. Low power dissipation with max supply current of 1 μA at 25 °C. Operating temperature from -55 °C to 125 °C.
6-pin SOT-23 package measuring 3x3 mm. Built-in ESD protection on inputs and outputs. Suitable for portable, audio, video, and communication system applications. Single pole double throw SPDT switch configuration.
The STG719STR multiplexer switch IC from STMicroelectronics is a robust and efficient solution for high-speed signal switching in industrial, laboratory, communication, and commercial electronic systems.
