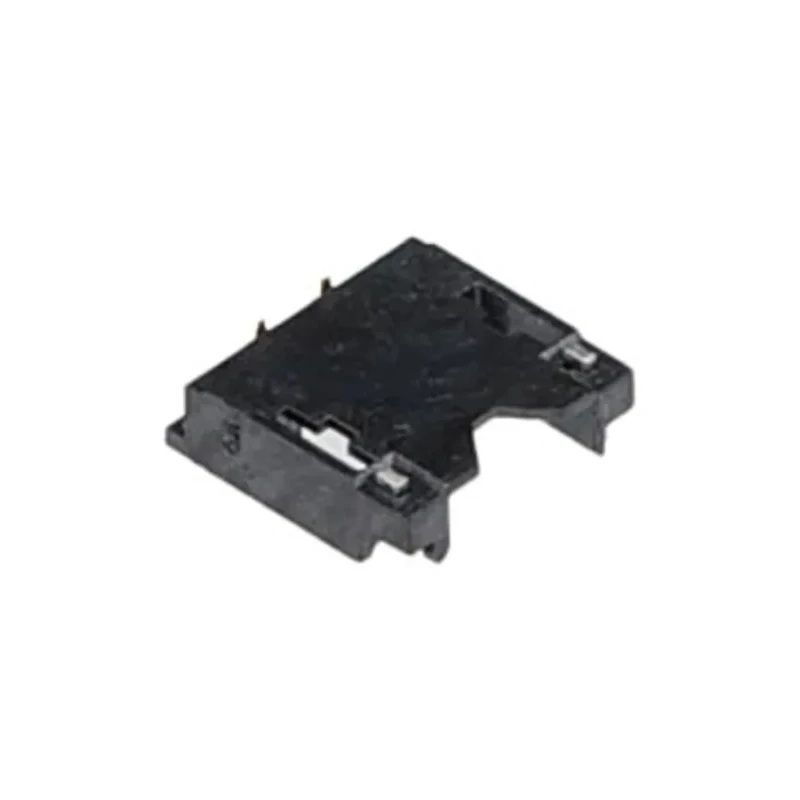

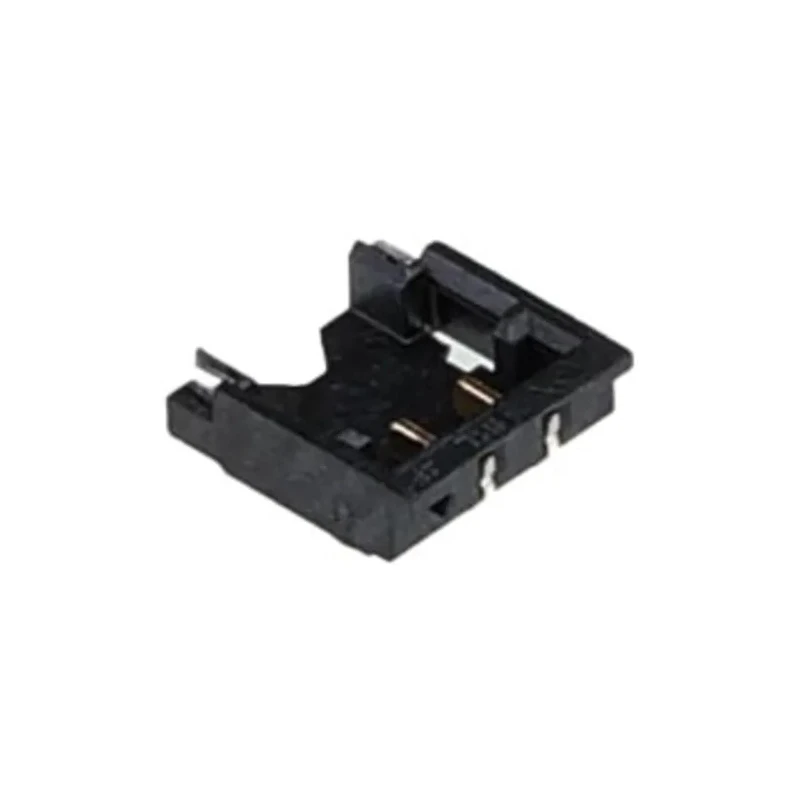

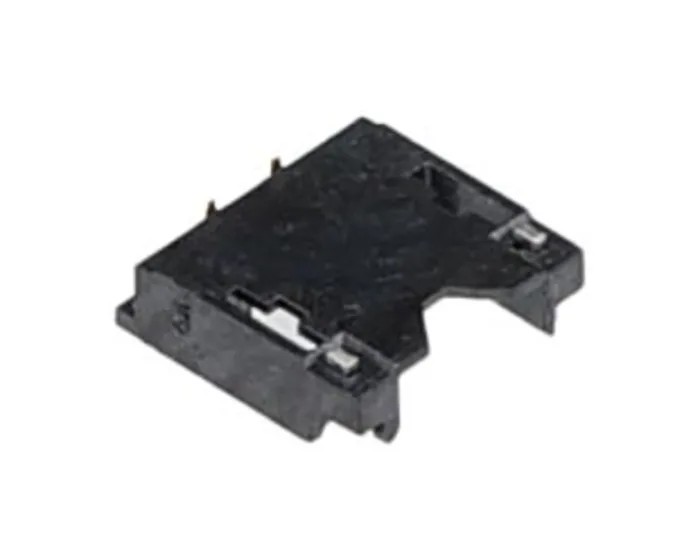

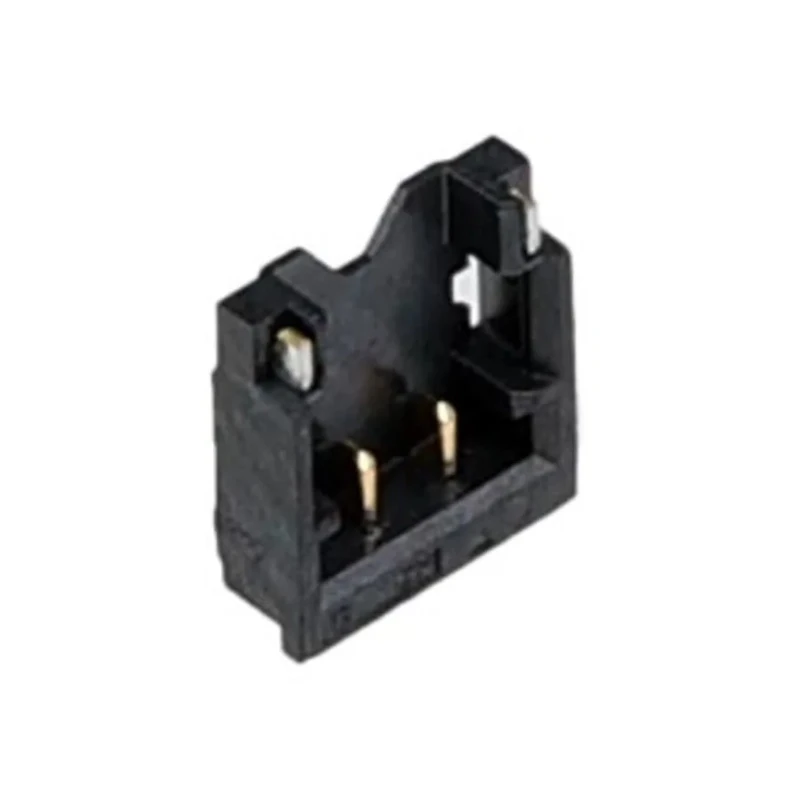

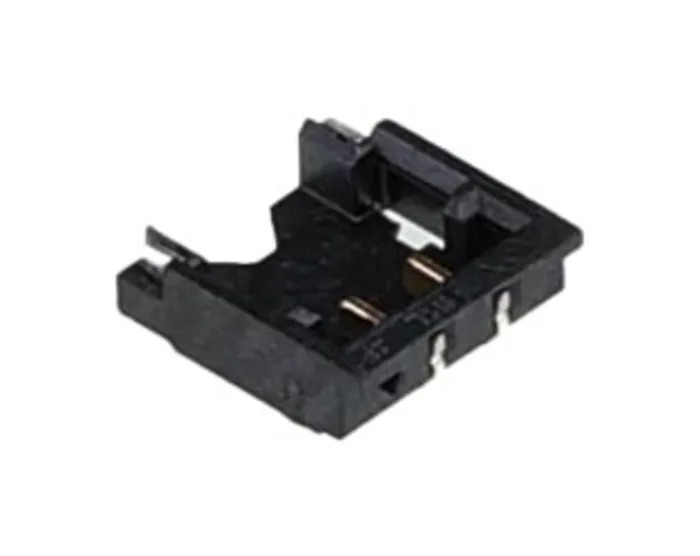

Molex PCB Header 2 Contact(s) 1.2 mm Pitch 1 Row Shrouded Surface Mount 50 V 1.5 A 78171-0002

Molex 78171-0002 is a PCB Header featuring 2 contacts with 1.2 mm pitch in a single row, designed for surface mounting in electronic assemblies. The shrouded straight orientation improves connection stability and protects against damage during handling or assembly. It is manufactured using copper alloy contacts with gold plating to ensure excellent electrical conductivity, durability, and corrosion resistance. Rated at 1.5 A current and 50 V voltage, this header performs reliably across a wide temperature range from -40°C to 105°C, making it suitable for demanding industrial and commercial environments.

This connector belongs to the Molex 78171 Series and forms part of the Pico-EZmate™ wire-to-board system, designed to optimize small pitch spacing for compact, efficient circuit board interconnections. The surface mount termination allows integration into automated production lines, improving assembly efficiency and reducing labor costs. The shrouded design features keying elements that promote proper alignment and reliable mating cycles up to 10 times, enhancing long-term connection integrity.

Common applications include telecommunications equipment, industrial automation systems, consumer electronics, and medical instrumentation. The connector's compactness and solid electrical performance support high-density PCB layouts while maintaining dependable operation. The Molex 78171-0002 PCB Header is an excellent choice for engineers requiring a robust, easy-to-assemble wire-to-board connection with reliable electrical characteristics and space-saving design.

Compact 1.2 mm pitch and 1 row layout ensure compatibility with various PCB designs. The shrouded design provides protection and alignment support during installation. Constructed with copper alloy contacts and gold plating for excellent conductivity and corrosion resistance.

Rated for 1.5 A current at 50 V providing versatile usage in electronic circuits. Designed for surface mount termination facilitating automated assembly processes. Operates reliably within a temperature range from -40°C to 105°C.

Wire-to-board connector system supports compact and efficient circuit connections. Ideal for telecommunications, consumer electronics, medical devices, and automation systems.
