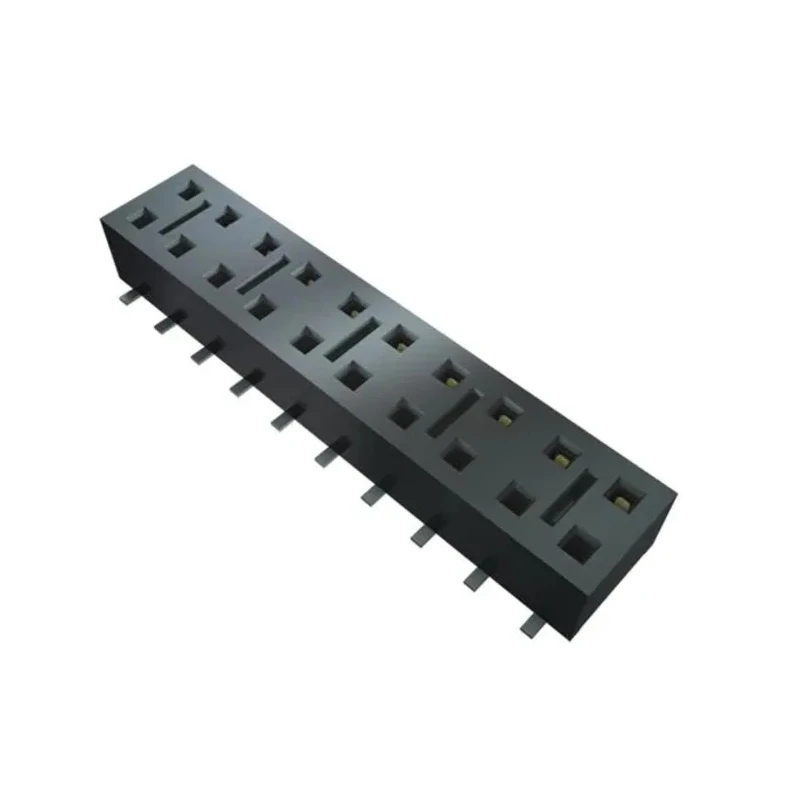

Samtec Straight Surface PCB Socket 10-Contact 2 Row 2.54 mm Pitch Solder HLE-105-02-G-DV-P-TR

Samtec HLE-105-02-G-DV-P-TR Straight Surface PCB Socket combines reliable mechanical and electrical connectivity with a compact 10-contact, 2-row structure and standard 2.54 mm pitch. Engineered for surface mounting, it enables quick and accurate PCB assembly, making it ideal for prototyping, manufacturing, and repair work in electronic systems.

The socket features robust liquid crystal polymer housing for high durability and temperature resistance, supporting ranges from -55°C to +125°C. Its gold-plated, beryllium copper alloy contacts ensure optimal conduction and corrosion resistance, delivering consistent performance for critical circuitry.

With solder termination, the HLE Series socket achieves steadfast electrical bonding and long-term reliability. The 2-row layout and single beam strip design simplify integration onto densely populated boards, compatible with a wide range of board-to-board connector systems.

10-contact, 2-row configuration suitable for board-to-board connections. Surface mount orientation ensures secure PCB assembly. 2.54 mm pitch compatible with standard PCB layouts. Robust housing made from liquid crystal polymer for enhanced durability.

Gold-plated beryllium copper alloy contacts for reliable conductivity. Rated for up to 400V and 4.1A current, supporting demanding electronics. Solder termination type provides strong electrical bonds. Wide operating temperature range from -55°C to 125°C for industrial use.

Cost-effective single beam socket strip design.

This PCB Socket is perfectly suited for industrial, laboratory, and commercial electronics, including control panels, sensor interfaces, and custom assembly tasks. Typical uses involve embedded systems, industrial automation, and instrument panels demanding secure, reliable connections.
