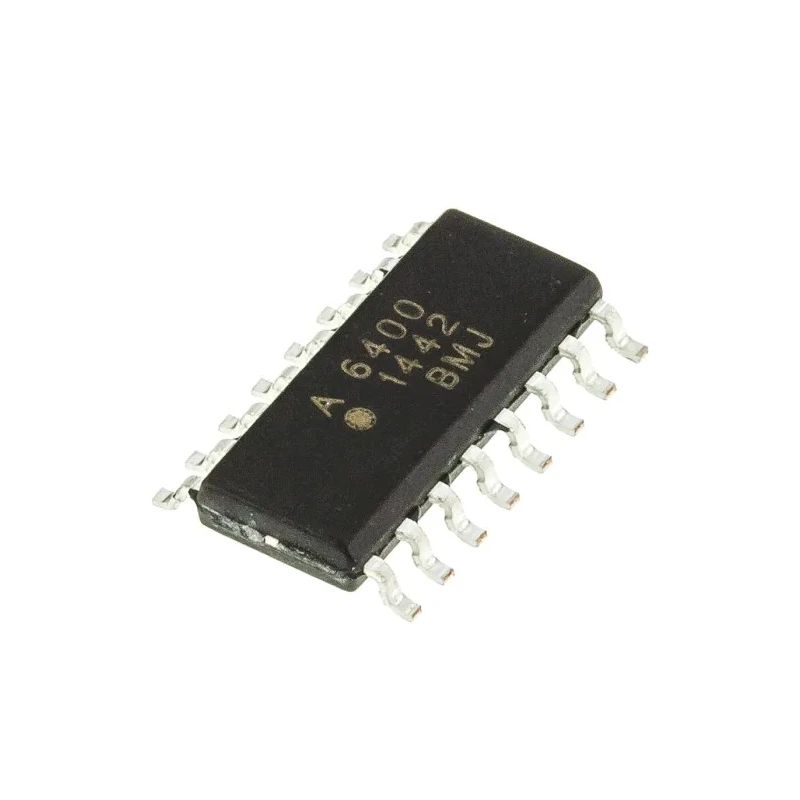

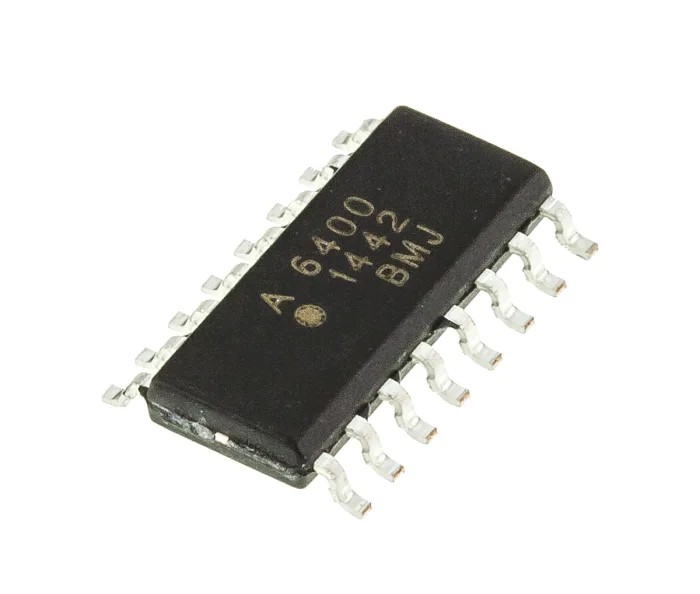

Broadcom DC Input 4-Channel Optocoupler Surface Mount 16-Pin SOIC ACSL-6400-00TE
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | ACSL-6400-00TE |
| Packaging | Tube Reel |
| Mount Type | Surface |
| Series | ACSL |
| Maximum Operating Temperature | 100°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 15mA |
| Number Of Channels | 4 |
| Standards/Approvals | UL1577/CSA Component Acceptance Notice 5A/IEC/EN/DIN EN 60747-5-5/RoHS 6 |
| Maximum Forward Voltage | 1.8V |
| Number of Pins | 16 |
| Input Current Type | DC |
| Typical Rise Time | 30μs |
| Typical Fall Time | 0.012μs |
| Isolation Voltage | 2500V ac |
Key Features
- Features a maximum forward voltage of 1.8V for efficient input operation.
- Supports a maximum input current of 15mA ensuring reliable switching performance.
- Offers a typical rise time of 30 microseconds for fast response times.
- Designed with a high isolation voltage of 2500V AC for safety in electronic circuits.
- Operates reliably over a temperature range from -40°C to 100°C.
- Includes logic output compatible with digital circuits for easy interfacing.
- Packaged in a tube reel suitable for automated assembly processes.
- Complies with UL1577, CSA Notice 5A, IEC/EN/DIN EN 60747-5-5 standards and RoHS 6 directives.
Product Description
Broadcom ACSL-6400-00TE is a DC input optocoupler featuring 4 channels in a surface mount 16-pin SOIC package. It is engineered to provide robust electrical isolation between input and output signals, making it essential in electronic and industrial circuits for signal integrity and noise reduction.
This device supports a maximum forward voltage of 1.8V and a maximum input current of 15mA, ensuring low power consumption and efficient switching. The typical rise and fall times of 30μs and 0.012μs respectively deliver accurate and fast response characteristics valuable for timing-sensitive applications.
With an isolation voltage rating of 2500V AC, the ACSL-6400-00TE ensures protection against high voltage transients and noise, enhancing system reliability. It operates within a broad temperature range of -40°C to 100°C, suitable for harsh industrial environments.
The four logic output channels make it convenient for digital interfacing in automation, communication, and power management systems. The device is RoHS 6 compliant and meets multiple international standards, including UL and CSA, ensuring safety and quality assurance.
Packaged in a tube reel format, it is compatible with automated insertion machinery, improving production efficiency and consistency. Maximum Forward Voltage: 1.8V. Maximum Input Current: 15mA. Typical Rise Time: 30 microseconds.
Isolation Voltage: 2500V AC. Operating Temperature Range: -40°C to 100°C. Logic Output Compatible. Packaging: Tube reel. Standards: UL1577, CSA Acceptance Notice 5A, IEC/EN/DIN EN 60747-5-5, RoHS 6.
This Broadcom optocoupler is ideal for industrial, electronics manufacturing, communication equipment, power supply isolation, and instrumentation applications requiring high isolation, fast switching, and reliable digital output. Browse EnvMart's extensive electronics component catalog for more Optocoupler solutions from Broadcom and other top manufacturers.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward voltage of this model is 1.8V, which supports efficient input operation.
This optocoupler features 4 channels, allowing for multiple signal isolation in electronic applications.
The maximum input current supported by the ACSL-6400-00TE is 15mA, ensuring reliable switching performance.
It has a high isolation voltage rating of 2500V AC, providing protection against high voltage transients.
The ACSL-6400-00TE operates reliably within a temperature range of -40°C to 100°C, suitable for harsh environments.
The typical rise time is 30 microseconds, and the fall time is 0.012 microseconds, allowing for fast response times.
This model includes logic output compatible with digital circuits, facilitating easy interfacing in various applications.
It is packaged in a tube reel format, making it suitable for automated assembly processes.
This optocoupler complies with UL1577, CSA Notice 5A, IEC/EN/DIN EN 60747-5-5 standards, and RoHS 6 directives.
The ACSL-6400-00TE is designed for surface mounting, making it suitable for compact electronic designs.
This model features 16 pins, which are standard for its package type.
It belongs to the ACSL series, which is known for its robust electrical isolation capabilities.
