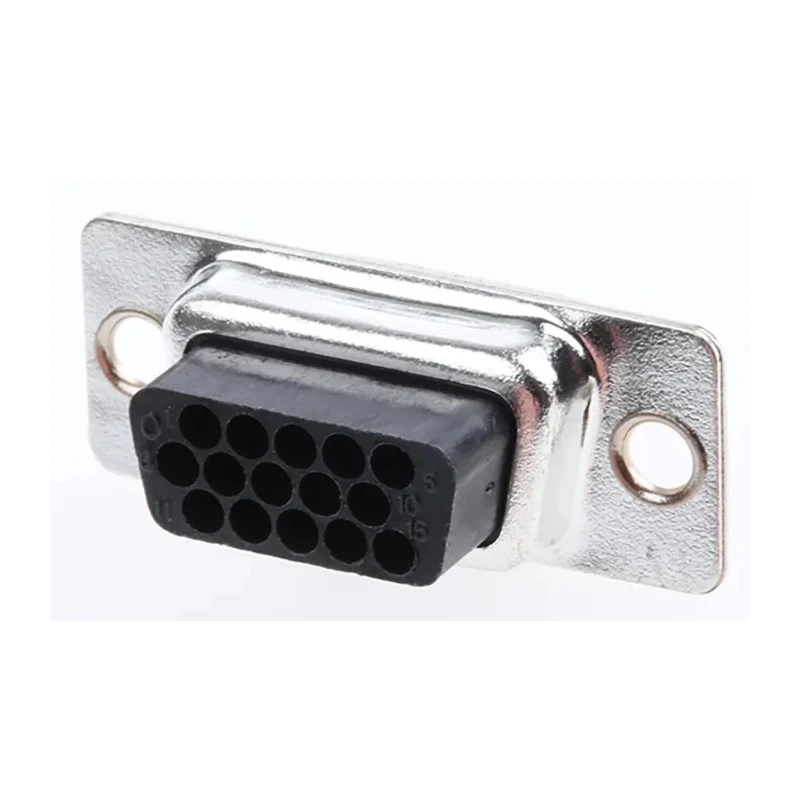

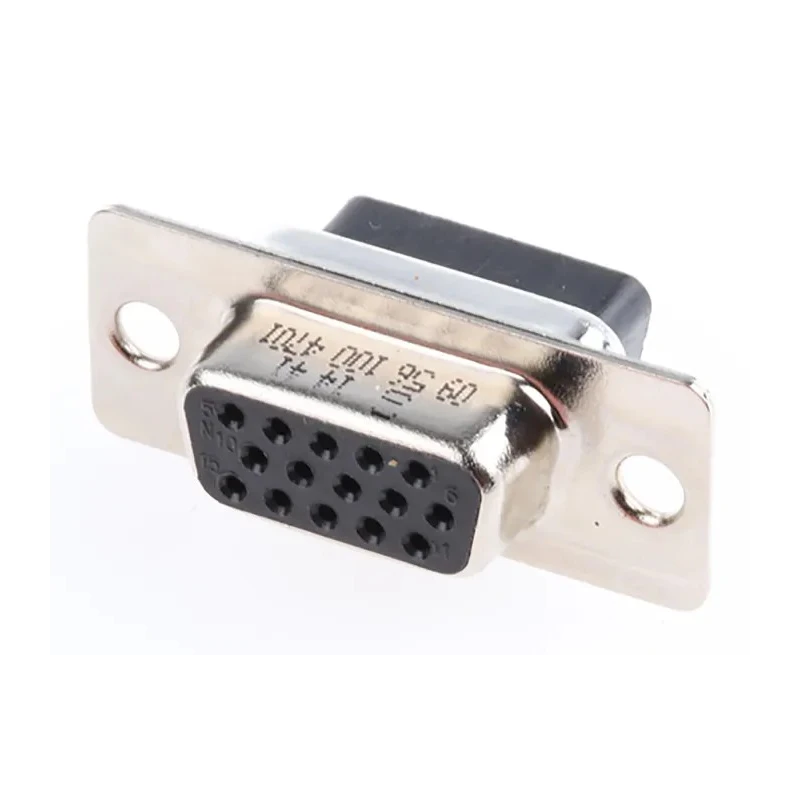

HARTING D-Sub 15 Way Straight 2.29 mm Pitch Cable D-Sub Connector with Screw Lock Female 09561004701
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1000V |
| Brand | HARTING |
| Orientation | Straight |
| Current | 2A |
| Mount Type | Cable |
| Housing Material | Steel |
| Contact Material | Copper Alloy |
| Series | D-Sub |
| Mounting Hardware | Screw Lock |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.29mm |
| Standards/Approvals | RoHS, UL94-0 |
| Contact Plating | Gold Plated |
| Number of Contacts | 15 |
| Contact Gender | Female |
| Connector Gender | Female |
| Connector Type D | D-Sub |
| D-Sub Shell Size | DS-1 |
Key Features
- Connector with 15 contacts rated at 2A current capacity.
- Straight orientation with cable mount type for easy installation.
- Female connector gender with DS-1 D-Sub shell size for compatibility.
- Steel housing with gold-plated copper alloy contacts for durability.
- Rated for 1000V voltage and operates between -55°C to 105°C temperature range.
- Crimp termination type for secure electrical connections.
- Screw lock mounting hardware provides robust and vibration-resistant fixation.
- Certified compliant to RoHS and UL94-0 standards.
Product Description
HARTING 09561004701 is a high-quality D-Sub 15 Way Straight Cable D-Sub Connector with a precise 2.29 mm pitch.
This connector is designed for reliable cable mounting applications and features a female connector gender with a DS-1 shell size made of sturdy steel for enhanced durability and shielding.
The contacts are crafted from copper alloy and finished with gold plating to ensure excellent conductivity and corrosion resistance.
It supports a voltage rating of 1000V and a current rating of 2A, capable of operating within a temperature range of -55°C to 105°C, making it suitable for demanding industrial environments.
The termination type is crimp, providing secure electrical connections, and it uses screw lock mounting hardware for robust fixing and vibration resistance. This connector complies with RoHS and UL94-0 standards, ensuring environmental and safety compliance.
The high-density design allows 70% more contacts than standard subminiature D connectors, optimized for compact and high-contact applications. This product is perfect for electronic component assembly, power and signal connections in industrial, manufacturing, and electronic system designs.
Its superior build and compact form factor make it a reliable choice for demanding technical applications. Explore more high-quality connectors and related components in the Electronics & Electricals category at EnvMart for comprehensive industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector has a current capacity of 2A.
It supports a voltage rating of 1000V.
The connector operates within a temperature range of -55°C to 105°C.
It uses crimp termination for secure electrical connections.
The housing is made of steel, and the contacts are crafted from copper alloy with gold plating.
This model features 15 contacts.
It is designed for cable mounting and includes screw lock mounting hardware.
The pitch size is 2.29 mm.
Yes, it is certified compliant with RoHS and UL94-0 standards.
This connector has a female gender.
It features a DS-1 shell size.
The country of origin for this connector is India.
