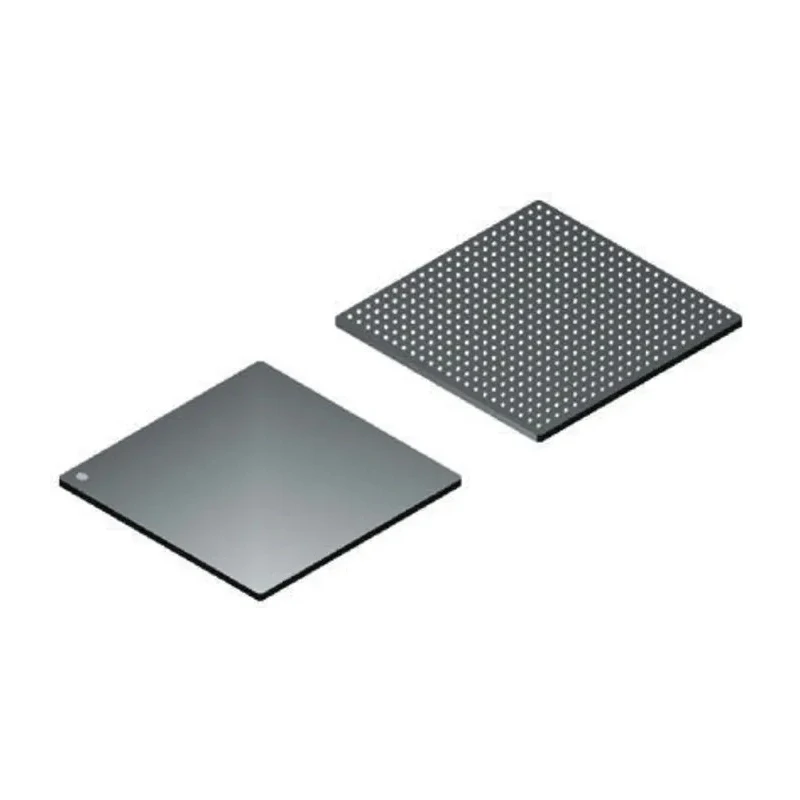

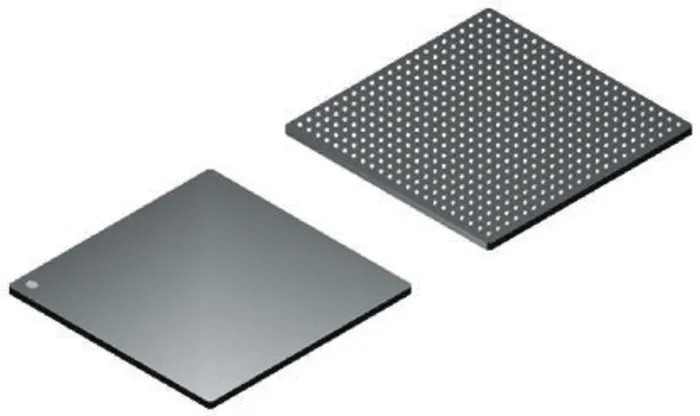

Altera FPGA Cyclone III 15408 Logic Cells, 56 Multipliers, 484-Pin FBGA EP3C16F484C8N

Free Delivery in India | Lowest Global Shipping Charges

Altera FPGA Cyclone III 15408 Logic Cells, 56 Multipliers, 484-Pin FBGA EP3C16F484C8N

Name: Altera FPGA Cyclone III 15408 Logic Cells, 56 Multipliers, 484-Pin FBGA EP3C16F484C8N
Brand: Altera
SKU: 101899



Category FPGAs Brand Altera Condition New

Specifications

Country of Origin	India
Brand	Altera
Height	2.2mm
Length	23mm
Model	EP3C16F484C8N
Mount Type	Surface
Series	Cyclone III
Maximum Operating Temperature	85°C
Package Type	FBGA
Minimum Operating Temperature	0°C
Pin Count	484
Maximum Supply Voltage	1.25V
Minimum Supply Voltage	1.15V
Number of Logic Cells	15408
Number of Multipliers	56 (18 x 18)

Key Features

Operates with a minimum supply voltage of 1.15V and maximum of 1.25V.
Designed for stable operation between 0°C and 85°C ambient temperature.
Compact dimensions of 23mm length and 2.2mm height optimize PCB space.
Suitable for programmable logic applications requiring up to 15408 configurable logic blocks.
Equipped with 56 (18 x 18) multipliers enhancing arithmetic processing capabilities.
Surface mount technology provides reliable and standard package integration.
Package type is Fine-pitch Ball Grid Array (FBGA) with 484 pins for high-density connections.
Compliant with industry standards but has no specific automotive certifications.

Product Description

Altera EP3C16F484C8N FPGA Cyclone III is a high-performance programmable logic device featuring 15408 logic cells and 56 embedded multipliers (18 x 18 configuration). It comes in a 484-pin Fine-pitch Ball Grid Array (FBGA) surface mount package with compact dimensions of 23mm length and 2.2mm height, suitable for space-constrained electronic circuits.

This FPGA operates within a supply voltage range of 1.15V to 1.25V and supports ambient operating temperatures from 0°C to 85°C, ensuring reliable performance in various industrial environments. The Cyclone III series provides a matrix of configurable logic blocks (CLBs) connected via programmable interconnects which can be customized through SRAM programming, allowing flexible hardware design adjustments even post PCB assembly.

The 56 multipliers embedded in the device facilitate efficient arithmetic computations, beneficial for digital signal processing and complex control algorithms often deployed in telecommunications, industrial automation, and embedded systems. The 484-pin FBGA package affords high pin density and excellent electrical performance while supporting surface mount technology for ease of manufacturing.

While the device complies with general industry standards, it does not hold specific automotive approvals, thus is intended primarily for commercial and industrial applications. Its design aids engineers and developers in implementing adaptable logic solutions that can be iteratively refined through in-system programming methods.

Operates with supply voltages between 1.15V and 1.25V. Supports an ambient temperature range from 0°C to 85°C. Compact form factor with dimensions 23mm x 2.2mm. Incorporates 15408 logic cells and 56 dedicated multipliers.

Utilizes a 484-pin FBGA surface mount package. Allows post-manufacture design reconfiguration via SRAM programming. Ideal for industrial, communication, embedded system applications. Complies with general standards; lacks automotive certification.

Facilitates high-speed arithmetic and logic operations. Explore further FPGA solutions in the Altera Cyclone III series to find programmable logic devices tailored to your industrial and commercial electronic design needs.
