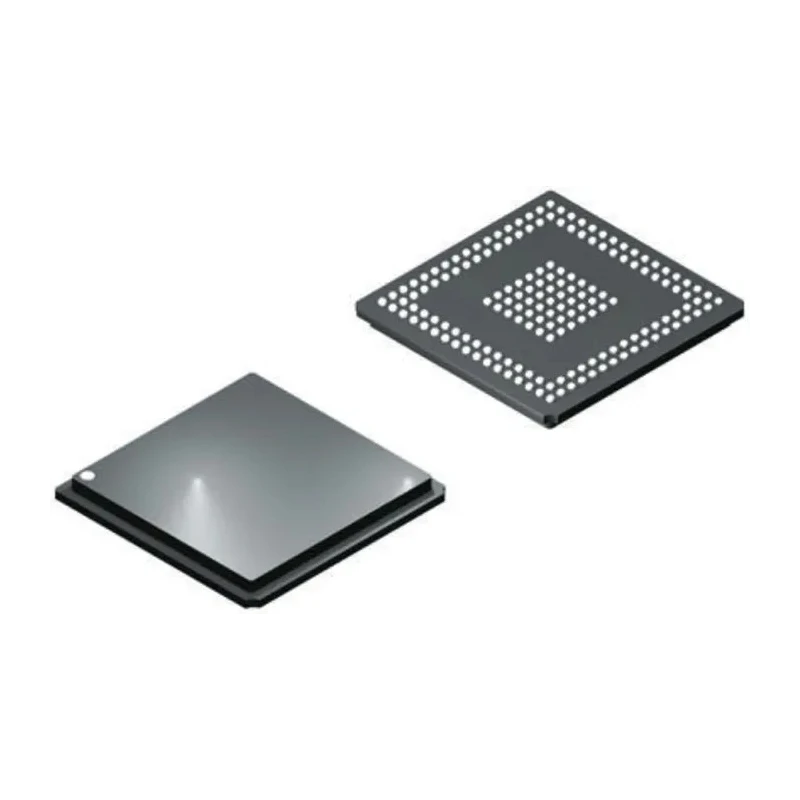

Altera Cyclone IV GX FPGA 14400 Logic Cells 540000 bit 900 Logic Units 169-Pin FBGA EP4CGX15BF14C8N

Altera EP4CGX15BF14C8N is a Cyclone IV GX series FPGA optimized for high-performance digital logic operations with 14400 logic cells and 900 logic units. It incorporates a 540000 bit RAM capacity, providing extensive memory resources within the 169-pin FBGA surface mount package sized at 14 mm length and 1.25 mm height.

This FPGA operates at supply voltages ranging from 1.16V minimum to 1.24V maximum, supporting a temperature range of 0°C to 85°C, making it suitable for various industrial and electronic applications. The programmable logic blocks and SRAM-based architecture allow for versatile and reconfigurable digital circuit designs, facilitating rapid prototyping and deployment in embedded systems.

The 169-pin FBGA package ensures compact integration on PCBs with surface mount technology, catering to space-constrained designs in consumer electronics and industrial automation.

Altera's Cyclone IV GX FPGA offers high integration, low power consumption, and reliable performance, addressing requirements in telecommunications, signal processing, and data acquisition systems. Its programmable interconnects enable flexible hardware customization post-soldering, enhancing design adaptability.

Use cases span electronic component manufacturing, embedded control modules, industrial automation, telecommunications equipment, and advanced computing applications requiring high logic density and configurable memory.

Features 14400 Logic Cells for complex digital circuits. Integrated 540000 bit RAM capacity for extensive data storage. Comprises 900 Logic Units to support robust computing tasks. Packaged in a Surface Mount 169-Pin FBGA for compact board integration.

Operates with a supply voltage range from 1.16V to 1.24V for stable performance. Designed for operating temperatures between 0°C and 85°C. Measures 14 mm in length and 1.25 mm in height ensuring small footprint. Supports reprogrammable SRAM design allowing dynamic hardware configuration.

Ideal for industrial, electronic manufacturing, and embedded system applications. Enables design flexibility with configurable logic blocks interconnected via programmable routing. Explore more FPGAs and programmable logic ICs on EnvMart to find compatible components for your project requirements.
