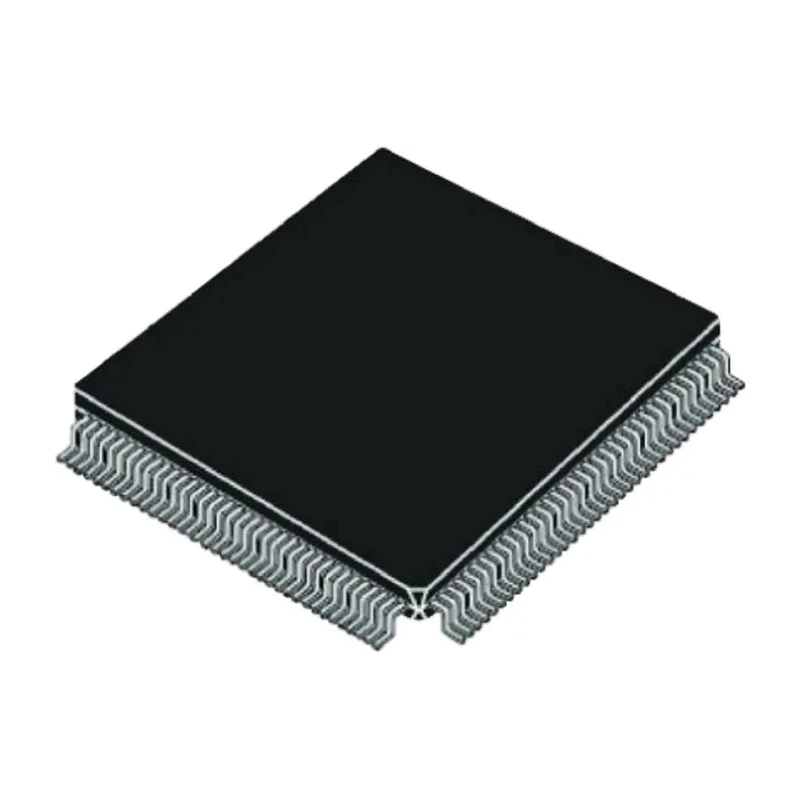

Altera FPGA Cyclone IV 15408 Logic Cells, 504 bit RAM, 56 Multipliers, 144-Pin EQFP EP4CE15E22C8N

Altera EP4CE15E22C8N FPGA Cyclone IV is a semiconductor device optimized for programmable logic applications. Featuring 15408 logic cells and 963 logic units, it enables extensive digital design flexibility through configurable logic blocks interconnected with SRAM-based routing.

The device offers 15408 registers, 504 bits of embedded RAM, and 56 dedicated 18 x 18 multipliers, making it suitable for complex arithmetic and data-intensive implementations. The FPGA is packaged in a 144-pin EQFP surface mount package with a compact physical footprint measuring 20mm in length and 1.6mm in height, facilitating integration into modern PCB assemblies.

Operating voltage ranges from 1.15V minimum to 1.25V maximum supply voltage, with an operating temperature window from 0°C to 85°C, ensuring stable industrial-grade performance. The Cyclone IV series is recognized for low power consumption and flexibility, ideal for electronic circuit prototyping, embedded computing, and industrial automation controls.

This FPGA is widely used in applications such as signal processing, digital logic design, and embedded system development. Its surface mount EQFP package supports high-density PCB configurations, enhancing production efficiency and reliability.

Contains 963 logic units for configurable digital functions. Equipped with 15408 registers and 504 bits of RAM for complex data storage. Includes 56 multipliers of 18 x 18 bits for efficient arithmetic operations. Operates between minimum 1.15V and maximum 1.25V supply voltage.

Designed for surface mount applications with compact size 20mm x 1.6mm. Reliable operation from 0°C to 85°C ambient temperature. Packaged in 144-pin EQFP to support high-density PCB layouts. Ideal for industrial, electronics, embedded systems, and design prototyping.
