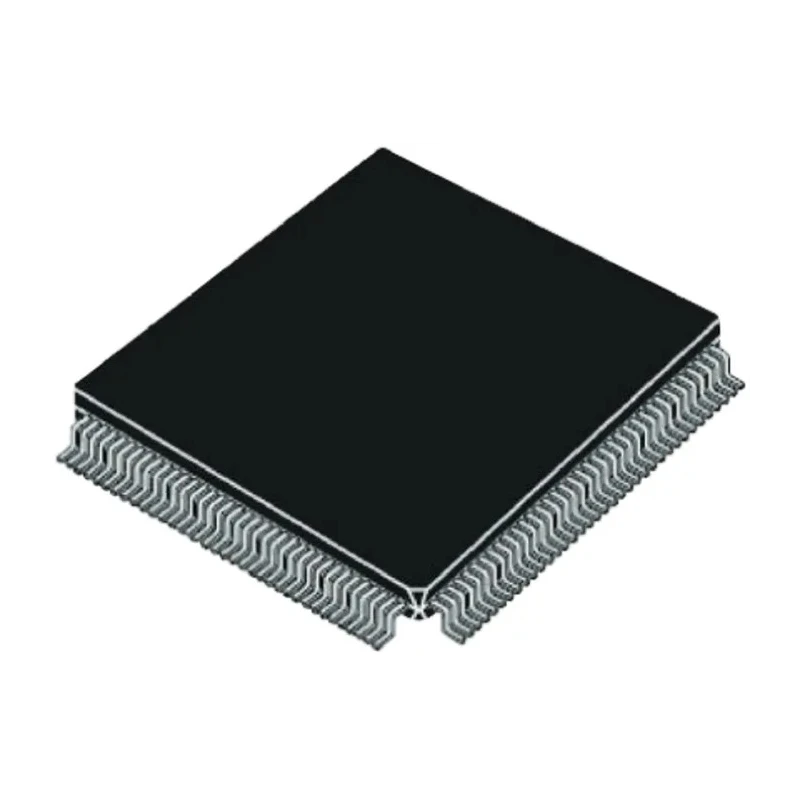

Lattice Semiconductor Field Programmable Gate Array FPGA 3520 Logic Cells 80000 bit 144-Pin TQFP iCE40HX4K-TQ144

Lattice Semiconductor iCE40HX4K-TQ144 is a high-performance Field Programmable Gate Array (FPGA) featuring 3520 logic cells and 440 logic units. It is delivered in a compact 144-pin TQFP package measuring 20 mm in length and 1.45 mm in height, making it suitable for integration into densely packed electronic assemblies.

This FPGA operates on a supply voltage range of 1.14V to 1.26V and is designed to function effectively within an extended temperature range from -40°C to 85°C. The 80000-bit RAM capacity allows for substantial data processing and handling capabilities, essential for complex digital logic implementations.

Being a surface mount device, it supports modern PCB assembly processes, essential for electronic product manufacturing in industrial, laboratory, HVAC, and advanced research sectors.

The device provides programmable interconnects and configurable logic blocks, enabling users to customize hardware functions after installation through SRAM programming. This flexibility supports iterative design development and system upgrades without hardware replacement.

This FPGA is widely applicable in programmable logic IC applications such as industrial automation, embedded systems, signal processing, and other electronic control systems. It provides robust, adaptable logic structures for various development and production environments.

Contains 3520 configurable logic cells for versatile digital circuit design. Includes 440 logic units and 3520 registers enabling complex programmable functions. Equipped with 80000 bits of RAM for data storage and processing.

Operates at a minimum supply voltage of 1.14V and maximum supply voltage of 1.26V. Designed to function reliably between -40°C to 85°C operating temperature range. Compact TQFP package type with 144 pins and dimensions: 20 mm length and 1.45 mm height.

Surface mount type suited for high-density PCB assembly. No automotive or specific certifications but suitable for a broad range of industrial and consumer electronics applications. Ideal for industrial, laboratory, manufacturing, and advanced electronics development uses.
