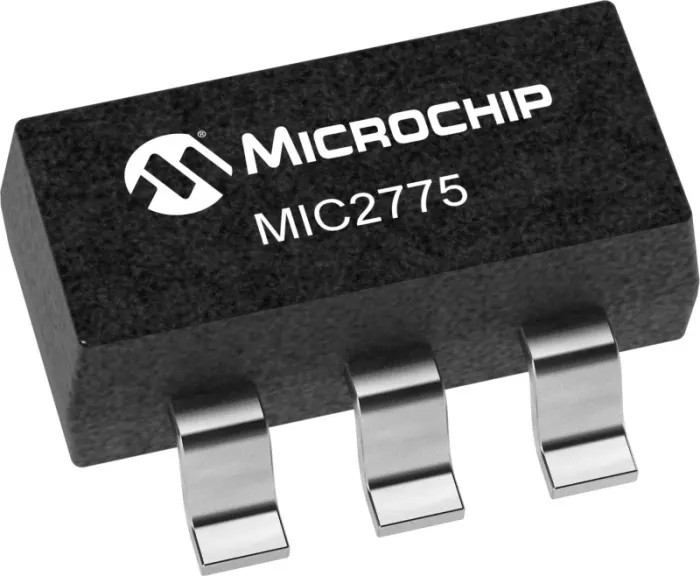

Microchip 1 Voltage Supervisor 5-Pin 3.09 V SOT-23 MIC2775-31YM5-TR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.45mm |
| Length | 2.9mm |
| Model | MIC2775-31YM5-TR |
| Width | 1.6mm |
| Mount Type | Surface |
| Series | MIC2775 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOT-23 |
| Sub Type | Power Supply Sequencer |
| Minimum Operating Temperature | -40°C |
| Pin Count | 5 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.5V |
| Number of Supervisors | 1 |
| Reset Threshold Voltage | 3.09V |
| Monitored Voltage | 3.09V |
Key Features
- Monitors power supply for under voltage conditions at 3.09 V threshold.
- Includes manual reset input for controlled system resets.
- Provides both active-high and active-low reset outputs.
- Ultra-low typical supply current of 3.5 μA minimizes power consumption.
- Compact 5-pin SOT-23 surface mount package supports PCB integration.
- Operates reliably from 1.5 V to 5.5 V supply voltage range.
- Functions within industrial temperature range from -40°C to 85°C.
- Generates a 140 ms power-on reset pulse for system stability.
Product Description
The Microchip MIC2775-31YM5-TR is a high-performance voltage supervisor designed to monitor power supplies for under voltage conditions. It integrates an under voltage detector, a delay generator, and manual reset input within a compact 5-pin SOT-23 surface mount package, making it ideal for industrial and electronic system applications.
This device operates with a fixed reset threshold voltage of 3.09 V and monitors supply voltages ranging from 1.5 V minimum up to 5.5 V maximum. The MIC2775 series provides both active-high and active-low reset outputs, offering flexible system reset signaling options. Its ultra-low supply current (3.5 μA typical) ensures minimal power drain, suitable for battery-powered or low-power electronics.
Designed to function across a wide temperature range (-40°C to 85°C), the MIC2775-31YM5-TR ensures reliable performance in varied environmental conditions. Upon power-up, it generates a 140 ms reset pulse to stabilize system operation during startup.
Applications of this voltage supervisor include power supply monitoring, embedded systems, industrial controls, and other electronics requiring precise voltage supervision and reliable manual reset functionality. The device’s compact SOT-23 package facilitates convenient PCB mounting and space-saving designs.
Monitors power supply for under voltage conditions at 3.09 V threshold. Manual reset input supports controlled resets. Active-high and active-low reset outputs provide versatile signaling. Ultra-low supply current minimizes overall power consumption.
Compact 5-pin SOT-23 package suitable for surface mounting. Wide operating voltage range from 1.5 V to 5.5 V. Operating temperature range from -40°C to 85°C. Generates a power-on reset pulse of 140 ms duration. Factory-programmed reset thresholds for consistent performance.
Explore the Microchip category for additional Voltage Supervisors and power management ICs to meet diverse electronic system requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The reset threshold voltage of this model is 3.09 V, which it uses to monitor power supply for under voltage conditions.
It operates within a supply voltage range of 1.5 V to 5.5 V, making it suitable for various applications.
The typical supply current for this voltage supervisor is 3.5 μA, which helps minimize power consumption.
This unit functions reliably across an operating temperature range of -40°C to 85°C.
The device comes in a compact 5-pin SOT-23 surface mount package, facilitating easy PCB integration.
Yes, it offers both active-high and active-low reset outputs, providing flexible signaling options for system resets.
Upon power-up, it generates a power-on reset pulse with a duration of 140 ms to stabilize system operation.
This model includes one supervisor for monitoring voltage levels.
The dimensions of this voltage supervisor are 2.9 mm in length, 1.6 mm in width, and 1.45 mm in height.
It is suitable for applications including power supply monitoring, embedded systems, and industrial controls requiring precise voltage supervision.
The country of origin for this device is India.
It includes a manual reset input for controlled system resets, enhancing its usability in various applications.
