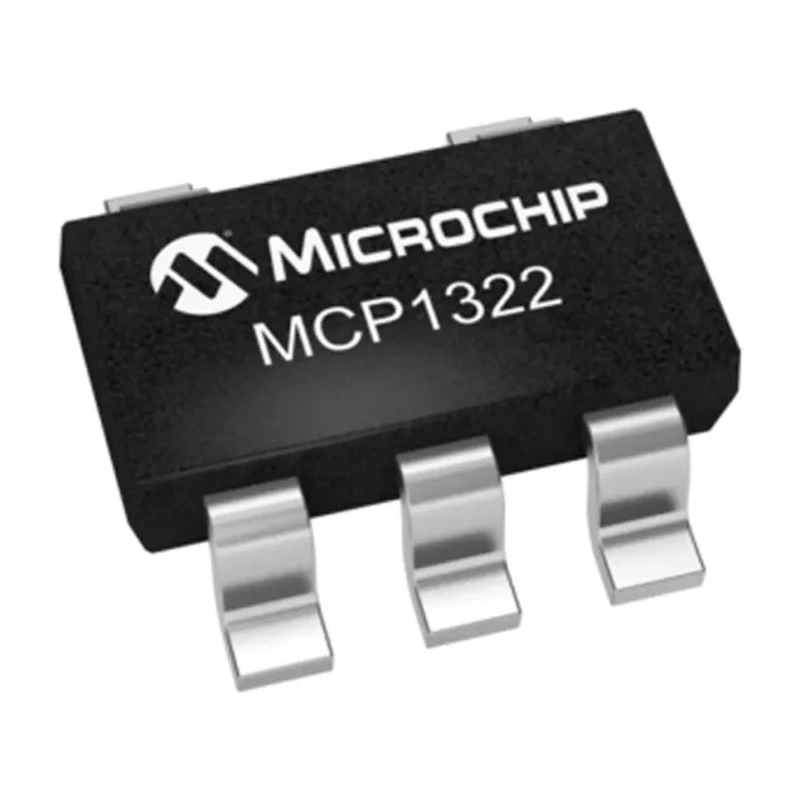

Microchip 1 Voltage Supervisor 5-Pin 2.9 V SOT-23 MCP1322T-29LE/OT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.3mm |
| Length | 3.1mm |
| Model | MCP1322T-29LE/OT |
| Width | 1.8mm |
| Mount Type | Surface |
| Series | MCP1322 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Sub Type | Voltage Supervisor |
| Minimum Operating Temperature | -40°C |
| Pin Count | 5 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1V |
| Number of Supervisors | 1 |
| Output Driver | Open Drain, Active High, Push Pull, Active Low |
| Reset Threshold Voltage | 2.9V |
| Monitored Voltage | 2.9V |
| Reset Active Time | 2240ms |
Key Features
- Operates with a monitored voltage of 2.9 V ensuring accurate reset threshold.
- Features manual reset and watchdog timer functions for reliable power supervision.
- Compact SOT-23 package with 5 pins suited for surface mount applications.
- Wide operating temperature range from -40°C to 125°C for industrial use.
- Minimum and maximum supply voltage of 1 V and 5.5 V respectively.
- Reset active time of 2240 ms provides stable reset signaling.
- Output supports active high and active low configurations.
- Series MCP1322 ensures compatibility with related supervisory devices.
Product Description
Microchip MCP1322T-29LE/OT is a single voltage supervisor designed for precise monitoring of voltage levels in electronic circuits. Encapsulated in a compact 5-pin SOT-23 surface mount package, this device features a monitored voltage threshold of 2.9 V, making it suitable for low-voltage applications.
The device integrates both manual reset and watchdog timer functionalities, allowing improved system stability by ensuring proper reset sequences and system monitoring. The output driver supports multiple output configurations including open drain, active high, push pull, and active low options, providing flexible interfacing to various systems.
Operating over an industrial temperature range of -40°C to 125°C and with supply voltage ranging from 1 V to 5.5 V, it is suitable for various industrial, automotive, and consumer electronics applications.
The reset active time of 2240 ms ensures sufficient delay for system stabilization during power cycles or fault conditions. Operates with a monitored voltage of 2.9 V ensuring accurate reset threshold. Features manual reset and watchdog timer functions for reliable power supervision.
Compact SOT-23 package with 5 pins suited for surface mount applications. Wide operating temperature range from -40°C to 125°C for industrial use. Minimum and maximum supply voltage of 1 V and 5.5 V respectively. Reset active time of 2240 ms provides stable reset signaling.
Output supports active high and active low configurations. Dimensions: 3.1 mm length, 1.8 mm width, and 1.3 mm height. Series MCP1322 ensures compatibility with related supervisory devices.
This voltage supervisor is ideal for use in electronic control systems, power management circuits, microcontroller applications, and embedded systems requiring dependable voltage monitoring and reset capabilities.
Explore more Microchip semiconductor products and Voltage Supervisors in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The monitored voltage threshold for this model is 2.9 V, ensuring accurate reset signaling during operation.
It operates over a wide temperature range from -40°C to 125°C, making it suitable for industrial applications.
The dimensions of this unit are 3.1 mm in length, 1.8 mm in width, and 1.3 mm in height.
The output driver supports open drain, active high, push pull, and active low configurations, providing flexibility for interfacing with various systems.
The reset active time is 2240 ms, which allows for stable reset signaling during power cycles or fault conditions.
This model operates with a supply voltage ranging from 1 V to 5.5 V.
It is packaged in a compact SOT-23 surface mount package with 5 pins, suitable for surface mount applications.
Yes, this voltage supervisor includes a manual reset feature, enhancing system stability.
This voltage supervisor belongs to the MCP1322 series, ensuring compatibility with related supervisory devices.
This model integrates a single voltage supervisor.
It is suitable for electronic control systems, power management circuits, microcontroller applications, and embedded systems that require voltage monitoring and reset capabilities.
The country of origin for this voltage supervisor is India.
