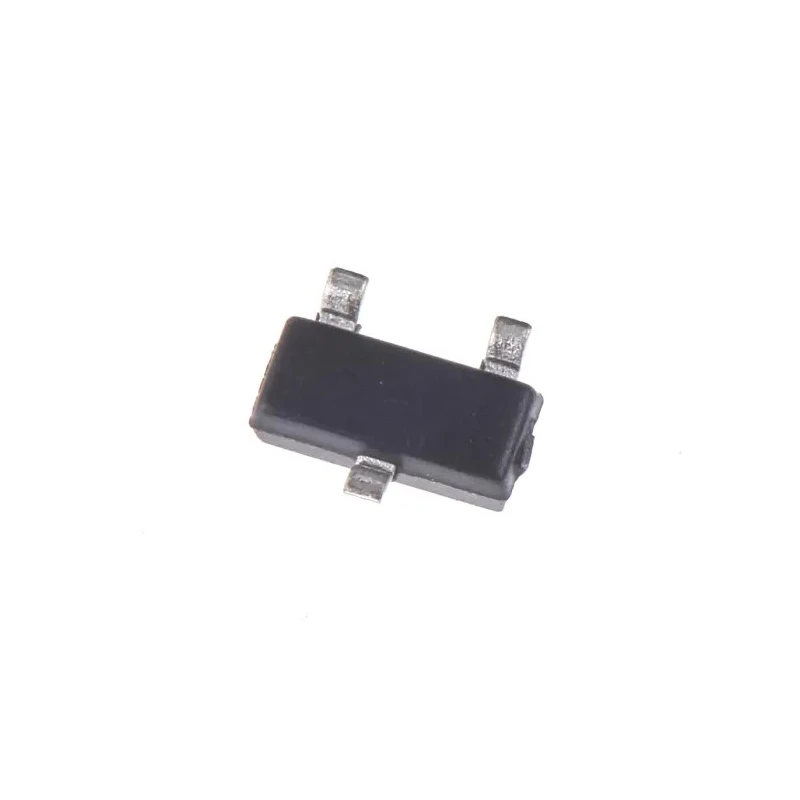

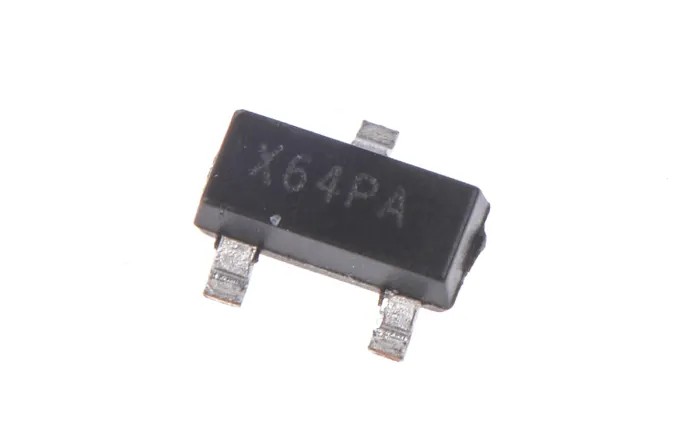

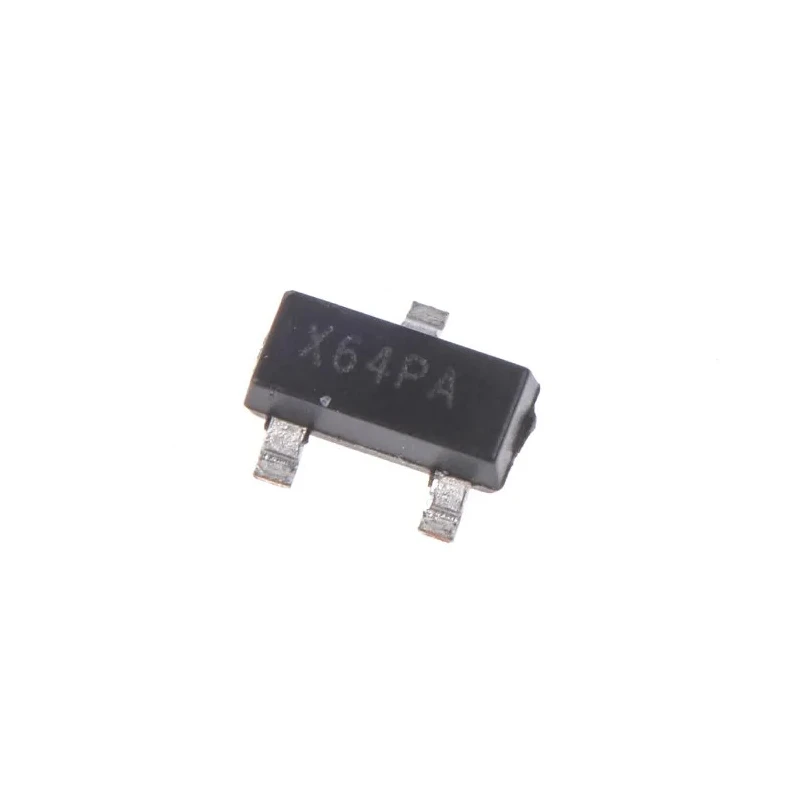

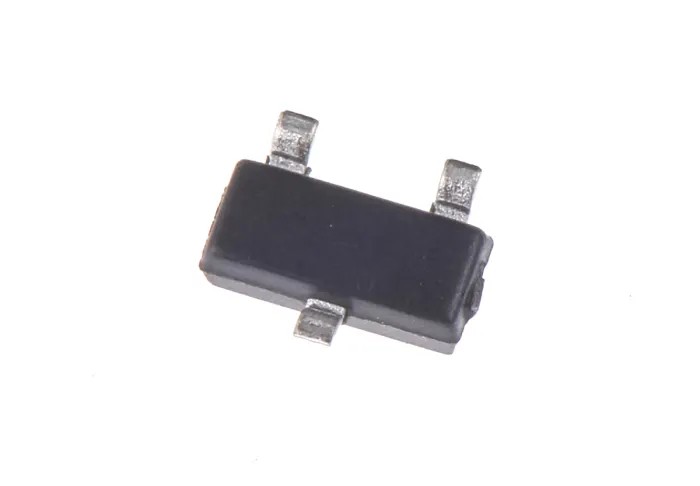

DiodesZetex Voltage Supervisor 3-Pin Surface Mount SOT-23 Package 2.93 V Monitored Voltage APX809-29SAG-7
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 1mm |
| Length | 3mm |
| Model | APX809-29SAG-7 |
| Width | 1.4mm |
| Mount Type | Surface |
| Series | APX809 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOT-23 |
| Sub Type | Microprocessor Reset Monitor |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1V |
| Number of Supervisors | 1 |
| Output Driver | Push Pull, Active Low |
| Reset Threshold Voltage | 2.93V |
| Monitored Voltage | 2.93V |
| Reset Active Time | 280ms |
Key Features
- Designed for microprocessor reset monitoring applications.
- Operates within -40°C to 85°C temperature range.
- Push pull, active low output driver ensures reliable reset signal.
- Reset active time of 280 milliseconds for stable supervision.
- Minimum supply voltage as low as 1 V and maximum up to 5.5 V.
- Single supervisor configuration for precise voltage monitoring.
- Surface mount SOT-23 package suitable for compact circuit designs.
Product Description
DiodesZetex APX809-29SAG-7 is a precision voltage supervisor integrated circuit designed to monitor and supervise power supply voltages in electronic systems. It is commonly used in microprocessor reset circuits to ensure the processor operates correctly by providing a controlled reset signal when the monitored voltage falls below the threshold of 2.93 V.
This IC package features a compact 3-pin SOT-23 surface mount design, making it ideal for space-constrained applications in industrial, consumer electronics, and computing equipment. The device supports operation across a wide temperature range from -40°C to a maximum of 85°C, ensuring reliable performance in varying environmental conditions.
The APX809-29SAG-7 incorporates a push-pull active low output driver that asserts the reset line in case of undervoltage conditions. The reset signal remains active for 280 ms, providing sufficient time for the system to stabilize before normal operation resumes. It requires a supply voltage range from 1 V minimum to 5.5 V maximum, catering to a variety of low-voltage power systems.
With precise monitored voltage at 2.93 V and a single supervisory channel, this device is suitable for embedded systems, battery-powered equipment, desktop and notebook computers, and other power-sensitive electronics requiring voltage regulation and reset supervision.
Designed for microprocessor reset monitoring applications. Operates within -40°C to 85°C temperature range. Push pull, active low output driver ensures reliable reset signal. Reset active time of 280 milliseconds for stable supervision.
Minimum supply voltage as low as 1 V and maximum up to 5.5 V. Compact dimensions: 3 mm length, 1.4 mm width, and 1 mm height. Single supervisor configuration for precise voltage monitoring. Surface mount SOT-23 package suitable for compact circuit designs.
This voltage supervisor IC supports various industrial and electronic applications such as power management in smart devices, consumer electronics, automotive instrument clusters (non-automotive standard), and more. It ensures system stability by preventing improper operation during power glitches or brownouts.
Explore other DiodesZetex Voltage Supervisors and semiconductor components within the EnvMart Electronics & Electricals catalog for comprehensive power management solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The monitored voltage of this model is 2.93 V, which is the threshold for triggering the reset signal.
It operates within a temperature range of -40°C to 85°C, ensuring functionality in various environmental conditions.
The reset active time for the APX809-29SAG-7 is 280 milliseconds, allowing for sufficient stabilization time before normal operation resumes.
This voltage supervisor requires a supply voltage ranging from a minimum of 1 V to a maximum of 5.5 V.
It features a push-pull, active low output driver that ensures a reliable reset signal during undervoltage conditions.
The dimensions of this model are 3 mm in length, 1.4 mm in width, and 1 mm in height, making it suitable for compact designs.
This device has a single supervisor configuration for precise voltage monitoring.
It comes in a surface mount SOT-23 package, which is ideal for space-constrained applications.
It is suitable for microprocessor reset monitoring applications, power management in smart devices, and consumer electronics.
During undervoltage conditions, the output signal is asserted low, indicating a reset state for the monitored system.
The country of origin for this model is India.
This model belongs to the APX809 series of voltage supervisors.
