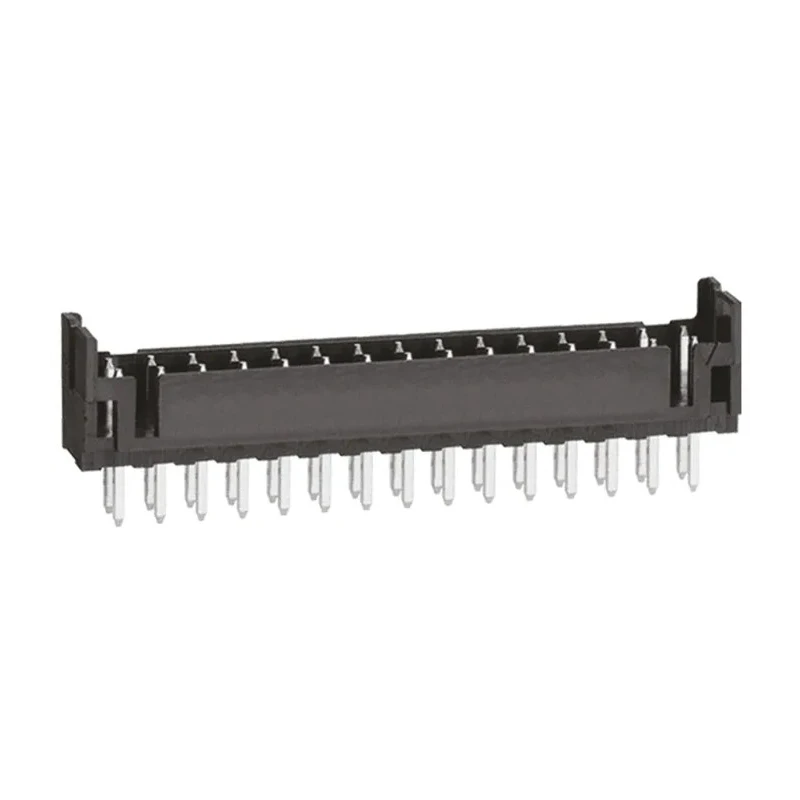

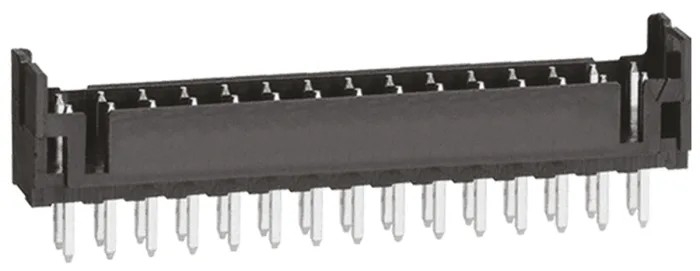

Hirose DF11 Series Straight Through Hole PCB Header 30 Contacts 2 mm Pitch 2 Row Shrouded
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 250V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 2A |
| Model | DF11 |
| Mount Type | Through Hole |
| Housing Material | Polyamide |
| Contact Material | Copper Alloy |
| Series | DF11 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -30°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Tin |
| Number of Contacts | 30 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board, Wire-to-Board |
Key Features
- Compact double row connector with 2.00 mm pitch and shrouded design for reliable connection.
- 30 male tin-plated contacts ensure effective conductivity and durability.
- Constructed with polyamide housing material providing robust insulation.
- Designed for board-to-board and wire-to-board applications with through hole mount type.
- Operates reliably between -30°C to 85°C temperature range.
- Connector includes guide ribs and locking mechanism to prevent mismating.
- Suitable for digital cameras, LCD displays, car navigation, and measurement devices.
- Rated for 2A current and 250V voltage ensuring efficient signal transmission.
Product Description
Hirose DF11-30DP-2DSA(24) PCB Header is a straight through hole connector designed with 30 male contacts arranged in a compact double row with a 2.00 mm pitch. Manufactured using durable polyamide housing and copper alloy tin-plated contacts, this component ensures reliable electrical connection and mechanical stability.
The shrouded design with four-wall enclosure and guide ribs prevents misconnections and twisting during mating with complementary connectors. Its locking mechanism secures the connection firmly for enhanced reliability in demanding electronic assemblies.
This header is intended for both board-to-board and wire-to-board systems, utilizing through hole mounting for robust PCB attachment. Operating temperature range from -30°C to 85°C makes it suitable for a variety of industrial and commercial electronic applications.
Typical use cases include integration in digital cameras, LCD screens, car navigation systems, digital video recorders, access control units, and precise measurement instrumentation. The DF11 series connectors provide space-saving benefits by enabling a double row of contacts within a 5 mm depth, ideal for compact electronic designs.
Compact double row connector with 2.00 mm pitch and shrouded design for reliable connection. 30 male tin-plated contacts ensure effective conductivity and durability. Constructed with polyamide housing material providing robust insulation.
Designed for board-to-board and wire-to-board applications with through hole mount type. Operates reliably between -30°C to 85°C temperature range. Connector includes guide ribs and locking mechanism to prevent mismating.
Suitable for digital cameras, LCD displays, car navigation, and measurement devices. Rated for 2A current and 250V voltage ensuring efficient signal transmission.
This product is manufactured in Malaysia and complies with industry standards, offering a high-quality solution for electronics manufacturing and assembly. Explore the EnvMart range of PCB Headers for complementary connectors and wire housings.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this PCB header is 2.00 mm.
It features 30 male contacts arranged in a double row configuration.
The connector is rated for a current of 2A and a voltage of 250V.
It operates reliably within a temperature range of -30°C to 85°C.
The housing is made of polyamide, and the contacts are made of copper alloy with tin plating.
This model utilizes a through hole mounting type for robust PCB attachment.
It is suitable for use in digital cameras, LCD displays, car navigation systems, and measurement devices.
Yes, it includes guide ribs and a locking mechanism to prevent mismating during connection.
The orientation of this connector is straight.
The shrouded design provides a four-wall enclosure that helps prevent misconnections and twisting during mating.
The termination type for this PCB header is solder.
This product is manufactured in Malaysia.
