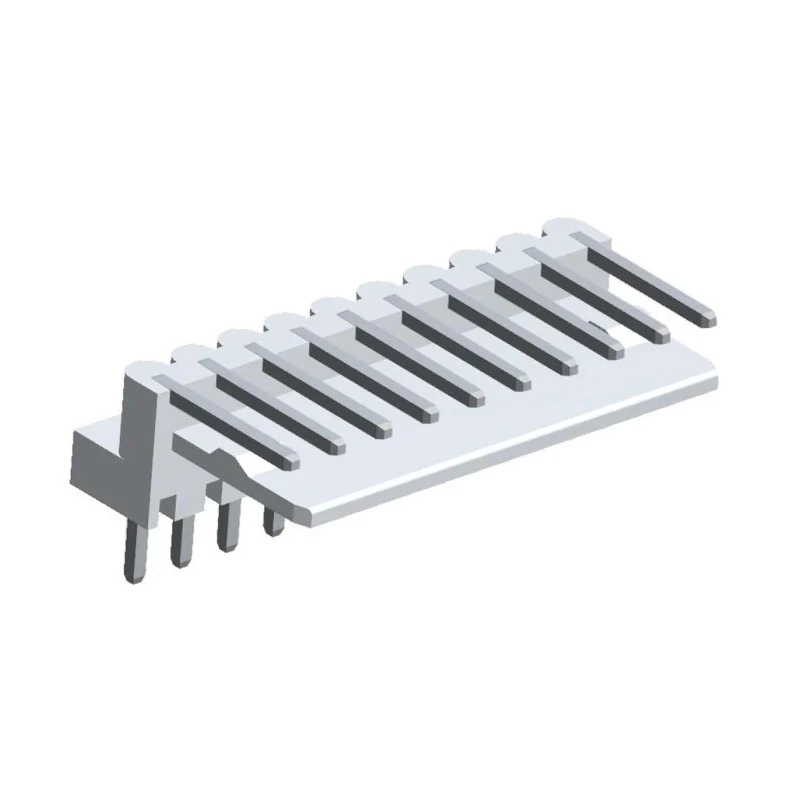

Molex Mini-Latch Series Right Angle Through Hole Pin Header 10 Contacts 2.5 mm Pitch 1 Row Unshrouded 22-05-1102
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | Mini-Latch |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.5mm |
| Contact Plating | Tin |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.4mm |
Key Features
- It features 1 row of male contacts suitable for wire-to-board connections.
- Constructed with nylon housing and brass contacts plated with tin for durability.
- Designed for through-hole mounting with right angle orientation.
- Supports continuous current up to 3A and voltage up to 250V.
- Operates reliably between -40°C to 105°C with solder termination type.
- Unshrouded design facilitates easy mating with crimp housings.
- This connector series incorporates a friction locking ramp ensuring secure mating.
- Compatible with Mini-Latch 51191 series and KK series 5051 crimp housings.
Product Description
Molex 22-05-1102 Mini-Latch Series Right Angle Through Hole Pin Header is a precision engineered 2.5 mm pitch PCB connector designed for industrial and electronic applications requiring reliable wire-to-board connections. This component features 10 male contacts arranged in a single row, optimized for through-hole mounting in a right angle orientation.
The pin header is constructed with a durable nylon housing and brass contacts finished with tin plating to ensure corrosion resistance and consistent signal integrity. It supports a continuous current rating of 3 amperes with a voltage limit of 250 volts, making it suitable for various electronic devices and systems.
Operating temperature range between -40°C and 105°C allows deployment in demanding environments. The solder termination type ensures strong mechanical and electrical connections on PCB assemblies.
Uniquely designed with an unshrouded form factor, this pin header is compatible with Mini-Latch 51191 and KK series 5051 crimp housings, providing design flexibility. The friction locking ramp mechanism secures the mating connection, preventing accidental disconnections in high-vibration or industrial environments.
Applications span automotive electronics, communication equipment, printers, fax machines, LCD monitors, and data communication centers, proving the connector's versatility in industrial and commercial sectors.
10 contacts with 2.5 mm pitch for precise connection. Right angle, through-hole mounting design for PCB integration. Durable nylon housing and brass contacts with tin plating. Rated for 3A current and 250V voltage. Temperature rating from -40°C to 105°C.
Friction locking ramp ensures secure mating with compatible housings. Suitable for industrial, automotive, and electronic applications. Explore more PCB connectors and components at EnvMart, your trusted source for industrial-grade electronic parts.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a continuous current rating of 3A.
It is rated for a maximum voltage of 250V.
The contacts are arranged with a pitch of 2.5 mm.
It features a nylon housing and brass contacts plated with tin for corrosion resistance.
The operating temperature range is from -40°C to 105°C.
This connector has 10 male contacts arranged in a single row.
It is designed for through-hole mounting with a right angle orientation.
Yes, it is compatible with Mini-Latch 51191 series and KK series 5051 crimp housings.
It uses a solder termination type for strong mechanical and electrical connections.
This model features an unshrouded design, facilitating easy mating with compatible housings.
It is suitable for various applications including automotive electronics, communication equipment, and data communication centers.
The tail pin length is 3.4 mm.
