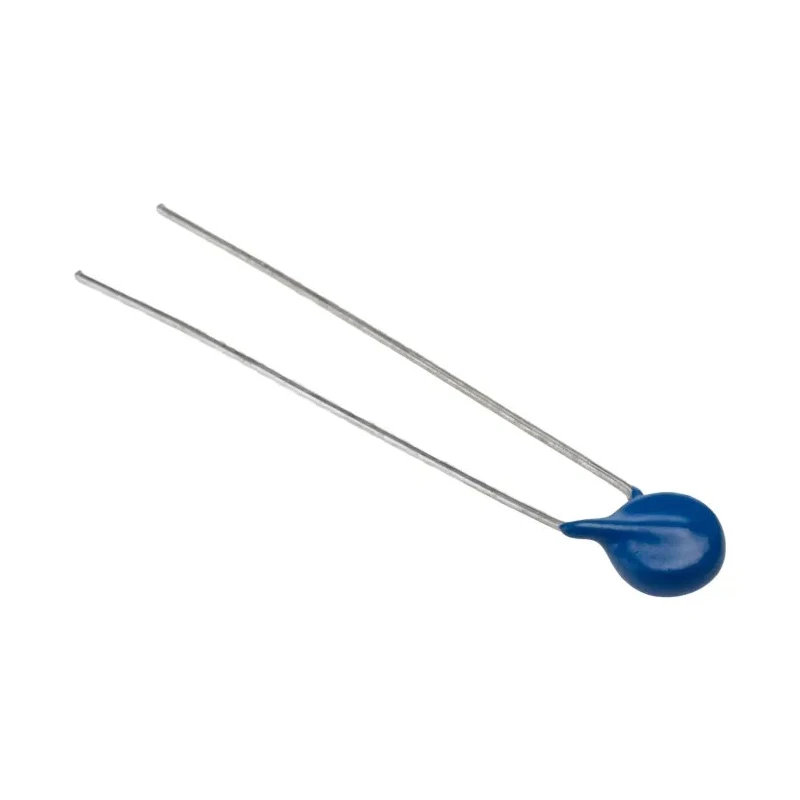

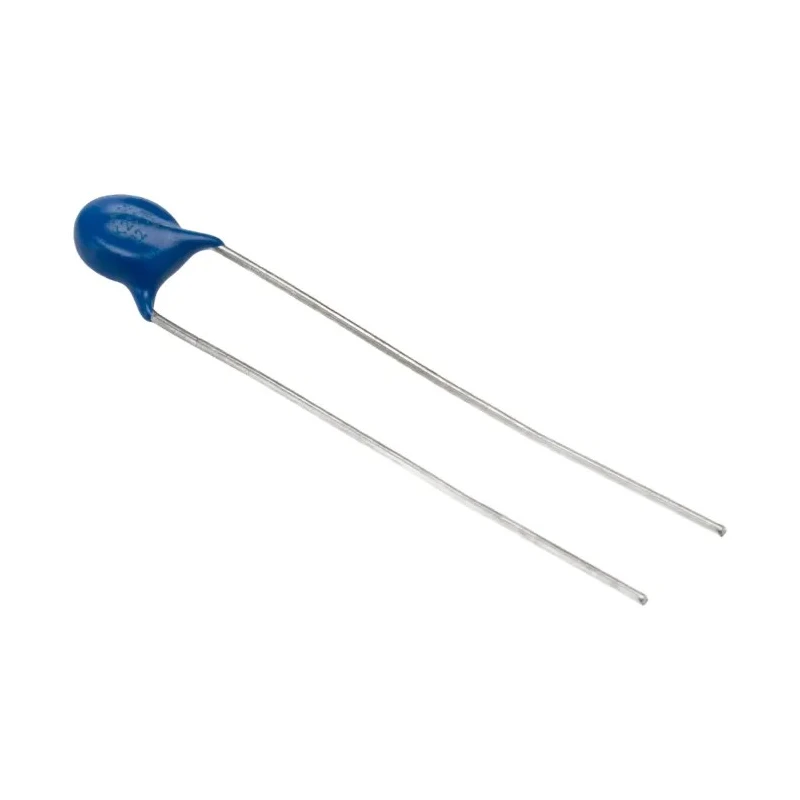

TDK Standard Metal Oxide Varistor 65 pF 5 A Clamping 650 V B72205S0251K101
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 7mm |
| Brand | TDK |
| Material | Metal |
| THICKNESS | 4.2mm |
| Length | 8.5mm |
| Model | B72205S0251K101 |
| Packaging | Bulk |
| Series | Standard |
| Energy Rating | 8.2J |
| Maximum Operating Temperature | 85°C |
| Capacitance | 65pF |
| Minimum Operating Temperature | -40°C |
| Maximum dc Voltage | 320V dc |
| Standards/Approvals | IEC, CSA, UL, VDE, CQC |
| Pin Count | 2 |
| Termination Style | Solder |
| Lead Pitch | 5mm |
| Maximum AC Voltage | 250V ac |
| Clamping Voltage VC | 650V |
| Clamping Current | 5A |
| Maximum Surge Current | 400A |
| Varistor Voltage | 390 V |
| Panasonic, V Surge Absorber 80pF 5A, Clamping 675V, Varistor 390VBrand | Panasonic |
Key Features
- Metal oxide varistor with 390 V varistor voltage rating.
- Maximum AC voltage rating of 250 V and DC voltage rating of 320 V.
- Capacitance of 65 pF ensuring minimal noise interference.
- Rated for a maximum surge current of 400 A and energy rating of 8.2 J.
- Epoxy-coated ceramic body with tinned copper wire leads.
- Operating temperature range from -40°C to 85°C for reliable performance.
- Termination style is solder with a 5 mm lead pitch.
- Compact size with diameter 7 mm, length 8.5 mm, and thickness 4.2 mm.
Product Description
TDK B72205S0251K101 Standard Metal Oxide Varistor features a robust ceramic body with epoxy coating, designed to protect electronic circuits from transient voltage surges. This varistor offers a capacitance of 65 pF, enabling it to suppress electrical noise while providing reliable overvoltage protection.
With a varistor voltage rating of 390 V and clamping capabilities at 650 V, it effectively safeguards sensitive components in industrial, telecommunications, and consumer electronics applications.
It is rated for a maximum surge current of 400 A and an energy absorption of 8.2 joules, making it suitable for high transient conditions. The device operates within a temperature range of -40°C to 85°C, ensuring durability in harsh environments.
The varistor is supplied in bulk packaging and terminated with solderable tinned copper leads featuring a pitch of 5 mm, facilitating easy integration on printed circuit boards. Its dimensions - 7 mm diameter, 8.5 mm length, and 4.2 mm thickness - contribute to a compact form factor, ideal for space-constrained designs.
TDK’s product complies with international standards such as IEC, CSA, UL, VDE, and CQC, confirming its reliability and safety credentials. Metal oxide varistor with 390 V varistor voltage rating. Maximum AC voltage rating of 250 V and DC voltage rating of 320 V.
Capacitance of 65 pF ensuring minimal noise interference. Rated for a maximum surge current of 400 A and energy rating of 8.2 J. Epoxy-coated ceramic body with tinned copper wire leads. Operating temperature range from -40°C to 85°C for reliable performance.
Termination style is solder with a 5 mm lead pitch. Compact size with diameter 7 mm, length 8.5 mm, and thickness 4.2 mm. Compliance to IEC, CSA, UL, VDE, and CQC standards ensuring quality and safety.
This metal oxide varistor is ideal for use in electronic, industrial, and telecommunications equipment to protect against voltage surges caused by lightning, switching, and other transients. It enhances the reliability and longevity of electronic systems by absorbing energy spikes.
Browse the Electronics Components category at EnvMart for additional surge protection devices and varistor options suitable for your specific applications.
Explore more products in our Electronic Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The varistor voltage rating of this model is 390 V.
It is rated for a maximum surge current of 400 A.
The clamping voltage for this varistor is 650 V.
This model has a capacitance of 65 pF, which helps in minimizing noise interference.
The dimensions of this varistor are a diameter of 7 mm, a length of 8.5 mm, and a thickness of 4.2 mm.
It operates within a temperature range of -40°C to 85°C.
The maximum AC voltage rating is 250 V, and the maximum DC voltage rating is 320 V.
This model has an energy absorption rating of 8.2 J.
The varistor uses a solder termination style with a lead pitch of 5 mm.
It features an epoxy-coated ceramic body with tinned copper wire leads.
It complies with international standards such as IEC, CSA, UL, VDE, and CQC.
This varistor is suitable for protecting electronic circuits in industrial, telecommunications, and consumer electronics applications against voltage surges.
