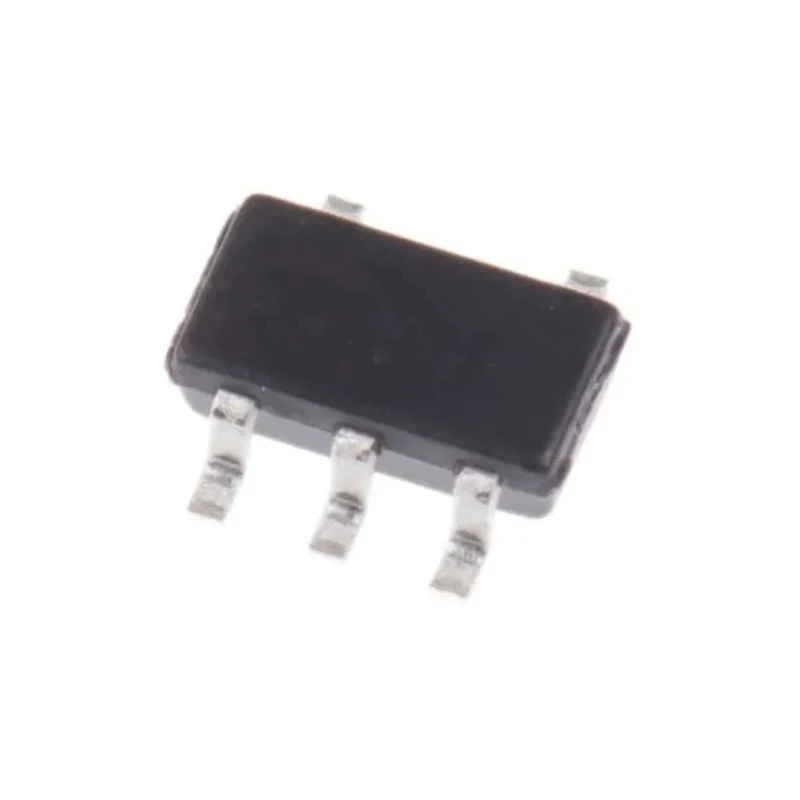

onsemi Voltage Regulator 5.5V 250mA Low Dropout TSOP 5-Pin Surface Mount NCV8163ASN330T1G
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | onsemi |
| Height | 1mm |
| Length | 3.15mm |
| Model | NCV8163ASN330T1G |
| Width | 1.65mm |
| Mount Type | Surface |
| Series | NCV8163 |
| Maximum Operating Temperature | 150°C |
| Package Type | TSOP |
| Polarity | Positive |
| Maximum Input Voltage | 5.5V |
| Quiescent Current | 20μA |
| Minimum Input Voltage | 2.2V |
| Pin Count | 5 |
| Automotive Standard | AEC-Q100 |
Key Features
- Provides ultra-low quiescent current of 12 μA for extended battery life.
- Delivers 250 mA maximum output current with very low dropout voltage of 80 mV at full load.
- Features ultra-high power supply ripple rejection (PSRR) reaching 92 dB at 1 kHz.
- Optimized for noise-sensitive devices such as image sensors and automotive ADAS systems.
- Surface mountable TSOP package with 5 pins, measuring 3.15 mm length by 1.65 mm width.
- Supports operating input voltage range from 2.2 V to 5.5 V.
- Compliant with AEC-Q100 automotive standard ensuring robust performance.
- Capable of operating in temperatures up to 150°C for demanding environments.
Product Description
onsemi NCV8163ASN330T1G is a TSOP 5-pin Low Dropout (LDO) Voltage Regulator designed for reliable power management in sensitive electronics such as automotive ADAS, image sensors, radar, and lidar systems. It delivers a stable 5.5 V output with a maximum output current of 250 mA, ensuring excellent performance even under fluctuating load conditions.
This device employs advanced circuitry to provide an ultra-low quiescent current of just 12 μA, significantly improving battery life in portable and automotive applications. The dropout voltage is extremely low at 80 mV when delivering full current, which helps maintain efficient power conversion and minimizes heat generation.
With an ultra-high power supply ripple rejection (PSRR) of 92 dB at 1 kHz and 60 dB at 100 kHz, the NCV8163ASN330T1G effectively suppresses noise from the power supply, making it ideal for noise-sensitive circuits like image sensors and RF modules. Its positive polarity and surface mount TSOP package allow for easy integration on compact printed circuit boards (PCBs).
The regulator is rated for operation up to 150°C, complying with automotive-grade AEC-Q100 standards, making it suited for harsh environmental conditions. It supports an input voltage range from 2.2 V to 5.5 V, catering to various supply voltage systems.
The compact dimensions of 3.15 mm length, 1.65 mm width, and 1 mm height make this regulator highly suitable for space-constrained designs. The device is specifically designed to work with 1 µF input and output ceramic capacitors to ensure stability and low noise operation.
Ultra low quiescent current of 12 μA enhances energy efficiency and battery life. Very low dropout voltage of 80 mV at full load minimizes power loss. High power supply ripple rejection up to 92 dB improves noise immunity.
Meets AEC-Q100 automotive standard for quality and reliability. Compact TSOP 5-pin surface mount package for ease of installation. Wide input voltage range from 2.2 V to 5.5 V supports diverse applications. Temperature operation range up to 150°C for harsh environments.
Optimized for noise-sensitive devices like image sensors in automotive ADAS and radar systems. Designed for low power dissipation and improved light load efficiency.
The NCV8163ASN330T1G voltage regulator from onsemi is a reliable, high-performance power management solution widely used in automotive and industrial electronics, supporting critical functions in ADAS, radar, and sensor applications. Explore more voltage regulators and power management ICs in the EnvMart catalog for comprehensive electronics component solutions.
Explore more products in our Voltage Regulator IC category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports an input voltage range from 2.2 V to 5.5 V.
The dimensions of the TSOP package are 3.15 mm in length, 1.65 mm in width, and 1 mm in height.
It has an ultra-low quiescent current of 12 μA, enhancing energy efficiency.
The dropout voltage is very low at 80 mV when delivering full current.
It complies with the AEC-Q100 automotive standard, ensuring robust performance.
The maximum operating temperature is rated at 150°C, suitable for demanding environments.
This model features a surface mount design, allowing for easy integration on compact PCBs.
It has an ultra-high PSRR of 92 dB at 1 kHz, effectively suppressing noise from the power supply.
The polarity of this voltage regulator is positive, suitable for various applications.
