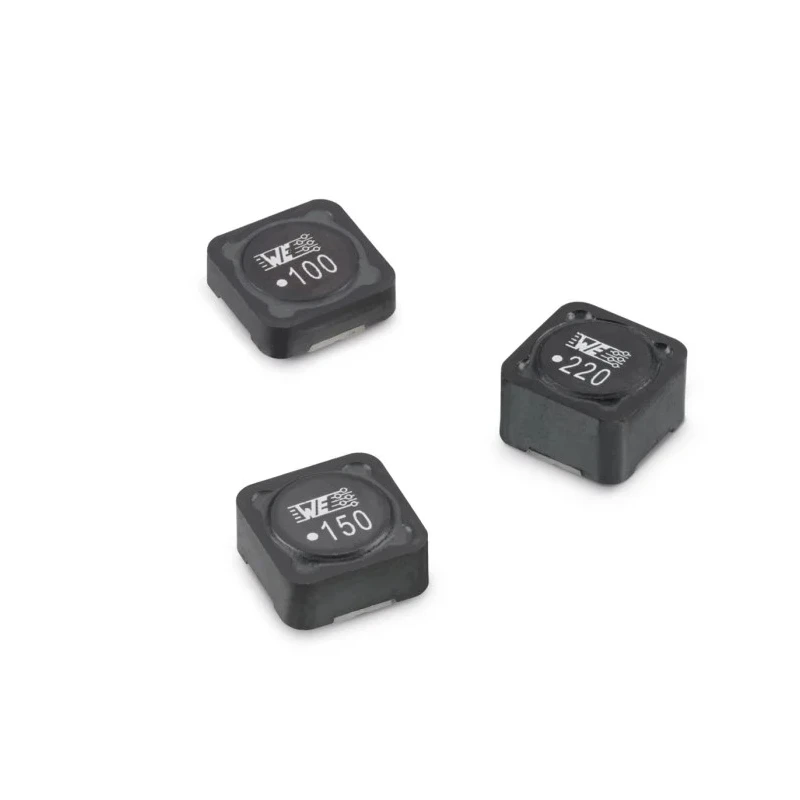

Wurth Elektronik Shielded Wirewound Surface Mount Inductor 68 μH ±20 %, 7345 Package WE-PD Series Model 7447773680

Wurth Elektronik model 7447773680 is a shielded wirewound surface mount inductor with an inductance of 68 μH ±20 %, housed in a 7345 package case. This inductor employs a manganese zinc ferrite core which provides excellent magnetic characteristics optimized for high-frequency applications.

Designed to support a maximum DC current of 1.15 A, it is suitable for demanding electronic circuit designs and power supply systems. The shielded construction effectively reduces emitted electromagnetic interference to ensure the stability and integrity of surrounding components.

With a maximum DC resistance of 230 mΩ and a maximum self-resonant frequency of 8.4 MHz, this component fits applications requiring efficient energy transfer and minimal power loss. It is certified to the automotive AEC-Q200 standard, making it reliable for automotive and industrial use.

The inductor is packaged in tape and reel form for easy automated placement on printed circuit boards, featuring a compact footprint with dimensions of 7.3 mm length, 4.5 mm height, and 7.4 mm depth. Its operating temperature range from -40°C to 150°C ensures stable performance in harsh environmental conditions.

Assembly is straightforward with a surface mount termination style and dual pins. This product complies with international standards including RoHS and REACH, guaranteeing environmentally safe manufacturing practices.

Ideal for switch mode power supplies from 0.1 W up to 300 W, integrated DC DC converters, and other applications requiring high efficiency inductors operating at high switching frequencies.

Constructed with a manganese zinc ferrite core for superior magnetic performance. Maximum DC current rating of 1.15 A for heavy duty applications. 7345 package with tape and reel for automated PCB assembly. Meets rigorous automotive AEC-Q200 certification for reliability.

Shielded design to minimize EMI in sensitive electronics. Wide operating temperature range from -40 °C to 150 °C. Low DC resistance of 230 mΩ reduces power loss and increases efficiency. Suitable for switching frequencies up to 10 MHz in power supplies.

Compact dimensions optimizing board space utilization. RoHS, REACH, and IEC standards compliant ensuring safety and environmental compliance. Explore our Electronics & Electricals category for more Surface Mount Inductors and other passive components tailored for your industrial and commercial electronic design needs.
